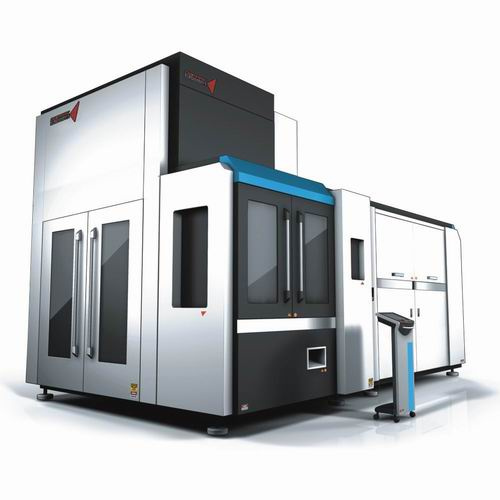

Bottle Blowing Machine (JS-20LL)
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CIF,others |
| Min Order: |
1Set |
| Pay Type: |
L/C,T/T,Western Union |
Blowing machine
Description:
1. Perfect function with economic investment.
2. Small size and compact construction
With no space waste.
Blowing machine
Features:
JS-20II blow molding machine is especially used to produce 3-gallon and 5-gallon
Bottles, and is widely used to produce any shapes of plastic from PET.
Perfect function with economic investment.
Small size and compact construction with no space waste.
Easy to operate and maintain, operated by one person.
Saving power and uneasy to worn out, adopting new double crank four bars to lock
Mould, the cross is fixed. Providing high pressure blowing system.
We can provide pre-forms and various bottle and cap molds for 5 gallon and 3 gallon
Bottles to meet customer's requirements.
Main parameter:
1. Mold gathering strength (kN): 150
2. Mold traveling distance (mm): 400
3. Pulling rising traveling distance (mm): 550
4. Mold hole number (cavity): 1
B: Bottle specifications:
1. Max. Bottle capacity (L): 20
2. Max. Tooth part size (mm): 60
3. Max. Bottle diameter (mm): 300
4. Max. Bottle body height (mm): 550
C: Theoretic production capacity (bph): 60-90
D: Electric power specifications:
1. Total power consumption (kW): 11.5
2. Thermal rating (kW): 10.4
E: Air pressure specifications:
1. Operating pressure (kg/cm2): 8
2. Low pressure gas consumption (L/min): 250
3. Bottle blowing pressure (kg/cm2): 30
4. High-pressured gas consumption (L/min): 400
F: Machine weight:
1. Machine size (m): 2.8 x 0.7 x 2
2. Machine weight (MT): 2Place of Origin
| Jiangsu, China
|
Brand Name
| guofeng
|
Model Number
| JS-20ll
|
Processing Types
| Other
|
Processing
| blowing machine
|
Mold gathering strength (kN)
| 150
|
Mold traveling distance (mm)
| 400
|
Pulling rising traveling distance (mm)
| 550
|
Mold hole number (cavity)
| 1
|
Max. Bottle capacity (L)
| 20
|
Max. Tooth part size (mm)
| 60
|
Max. Bottle diameter (mm)
| 300
|
Max. Bottle body height (mm)
| 550
|
Theoretic production capacity (bph)
| 60-90
|
| Prod Model: |
JS-20LL |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Processing: |
Blowing |
| Composition: |
Filling Machine |
| Process: |
Thermal Processing |
| Processing Material: |
Special Agricultural Products |
We devote ourselves to the development, research and production of liquid food and beverage packing and filling industry and automatic blow molding machine in China.
For beverage machine, our Main products including:
The capacity of 5000-- 40000 BPH for HOT FILLING, MID-TEMP FILLING, ASEPTIC COLD FILLING LINES.
The capacity of 5000-- 40000 BPH for MINERAL WATER AND PURIFIED WATER PRODUCING LINE.
The capacity of 5000 -- 36000 BPH for CARBONATED BEVERAGE PRODUCTING LINE.
The capacity of 300 -- 2000 BPH for 3 gallon OR 5 gallon BARREL FILLING PRODUCTING LINE.
The capacity of 8000 BPH for the volume of 200ml to 500ml in MILK PACKAGING.
All kinds of WATER TREARMENT EQUIPMENT.
PET perform INJECT and BLOWING-STRETCHING MACHINE.
Mould plastics machine
Turn-key projects
Flat and tube UHT device, and CIP system.
All the products are sold well in every province and city of the whole country and also exported to several countries and areas with strong technical force, advanced equipment, scientific management system and perfect after-sales service.
