| Price: | US $ 68000/Piece |
|---|---|
| Trade Terms: | FOB,CFR,others |
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T |

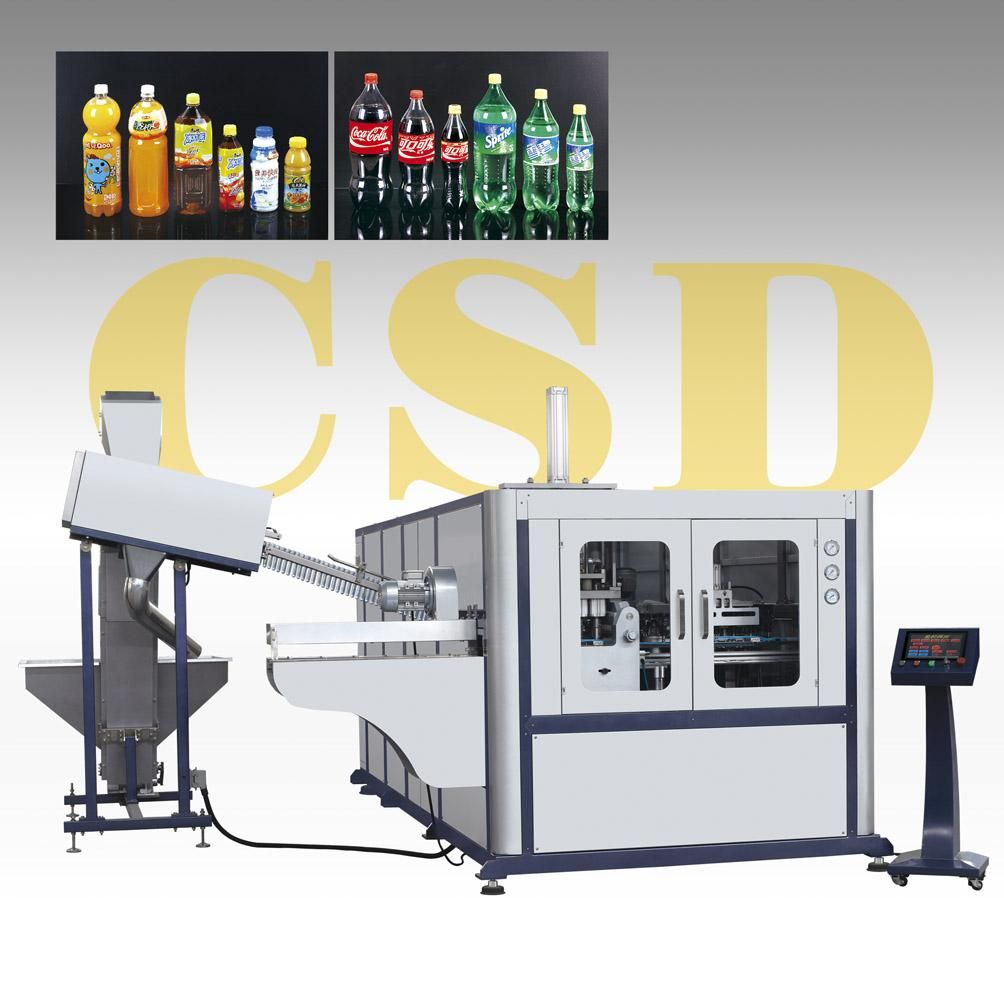

| CSD-AB SERIES TWO-STAGE AUTOMATIC LINEAR HIGH-SPEED BLOW MOLDING MACHINE | |||||||||||||||||
| Item | Unit | CSD-AB2-2L | CSD-AB3-1.25L | CSD-AB4-2L | CSD-AB5-1.25L | CSD-AB6-1.5L | CSD-AB2-5L | CSD-AB2-10L | |||||||||
| Cavity | 2 | 3 | 4 | 5 | 6 | 2 | 2 | ||||||||||
| Product Volume | L | ≤2L | ≤1.25L | ≤2L | ≤1.25L | ≤1.5L | 5L | ≤10L | |||||||||
|
Production capacity |
Max. Capacity (500ml water bottle) 28-30mm |
Pcs/h |
3130Pcs/h (2.3s/cycle) |
4500Pcs/h (2.4s/cycle) |
6000Pcs/h (2.4s/cycle) |
7200Pcs/h (2.5s/cycle) |
8000Pcs/h (2.7s/cycle) |
900Pcs/h (4s/cycle) |
|||||||||
|
Recommended Production Capacity |
Pcs/h |
2800-3000Pcs/h Based on 500ML water bottle, Preform Neck 28-30mm, Weight:17gram, Thickness:2.3mm 2000-2250Pcs/h Based on 1500ML water bottle, Preform Neck 2830mm, Weight:42gram, Thickness:3.3mm |
4000-4200Pcs/h Based on 500ML water bottle, Preform Neck 28-30mm, Weight:17gram, Thickness:2.3mm 3100-3500Pcs/h Based on 1000ML water bottle, Preform Neck 28-30mm, Weight:28gram, Thickness:3mm |
5000-5500Pcs/h Based on 500ML water bottle, Preform Neck 28-30mm, Weight:17gram, Thickness:2.3mm 4100-4500Pcs/h Based on 1500ML water bottle, Preform Neck 28-30mm, Weight:42gram, Thickness:3.3mm |
6200-6660Pcs/h Based on 500ML water bottle, Preform Neck 28-30mm, Weight:17gram, Thickness:2.3mm 5000-5500Pcs/h Based on 1000ML water bottle, Preform Neck 28-30mm, Weight:28gram, Thickness:3mm |
6600-7000Pcs/h Based on 500ML water bottle, Preform Neck 28-30mm, Weight:17gram, Thickness:2.3mm 5000-5500Pcs/h Based on 1500ML water bottle, Preform Neck 28-30mm, Weight:42gram, Thickness:3.3mm |
1600-1700Pcs/h Based on 5L bottle, Preform Neck 45mm, Weight:60gram, Thickness:3.3mm |
1100-1200Pcs/h Based on 10L bottle, Preform Neck 45mm, Weight:200gram, |
|||||||||
| Max Diameter of Product | Φ(mm) | 120 | 90 | 120 | 90 | 95 | 160 | 200 | |||||||||
| Neck Size of Product | Φ(mm) | 15-38 | 15-38 | 15-38 | 15-38 | 15-38 | 38-45 | 35-45 | |||||||||
| Useful Area of Mould Plate | mm | 350×350 | 350×350 | 520×350 | 520×350 | 880×400 | 480×400 | 620×460 | |||||||||
| Max.Mould Thickness | mm | 220 | 220 | 220 | 220 | 258 | 230 | 300 | |||||||||
| Min.Mould Thickness | mm | 180 | 180 | 180 | 180 | 250 | |||||||||||
| Mould Stroke | mm | 158 | 110 | 158 | 110 | 116 | 220 | 240 | |||||||||
| Clamping Force | Kn | 120 | 120 | 210 | 210 | 300 | 300 | 300 | |||||||||
| Stretching Stroke | mm | 350 | 350 | 350 | 350 | 350 | 350 | 500 | |||||||||
| Working Pressure | Mpa | 0.8-1.0 | 0.8-1.0 | 0.8-1.0 | 0.8-1.0 | 0.8-1.0 | 0.8-1.0 | 0.8-1.0 | |||||||||
| Blowing Air Pressure | Mpa | 2.6-3.0 | 2.6-3.0 | 2.6-3.0 | 2.6-3.0 | 2.6-3.0 | 2.6-3.0 | 2.6-3.0 | |||||||||
| Measurement of Main Blower | L×W×H(mm) | 3000×1850×1900 | 3100×1850×1900 | 4400×2000×1900 | 4400×2000×1900 | 7000×1750×1900 | 4450×2000×1900 | 5000×2000×1900 | |||||||||
| Power of Preheater | kw | 48 | 48 | 96 | 96 | 110 | 98 | 122 | |||||||||
| A | 72 | 72 | 144 | 144 | 165 | 102 | 183 | ||||||||||
| Power of Main Blower | kw | 5 | 5 | 5 | 8 | 8 | 5 | 5 | |||||||||
| Weight of Main Blower | T | 4 | 4 | 5 | 5 | 7 | 5 | 5 | |||||||||
| Measurement of Conveyer | L×W×H(mm) | 2570×2570×2700 | 2570×2570×2700 | 2890×2570×2700 | 2890×2570×2700 | 3600×2500×3500 | 2500×2000×2750 | 2500×2000×2750 | |||||||||
| Weight of Conveyer | T | 0.2 | 0.2 | 0.2 | 0.2 | 0.4 | 0.2 | 0.2 | |||||||||
|
High Pressure Air Compressor Unit |
Power | kw | 22×2 | 22×2 | 22×3 | 22×3 | 22×4 | 22×4 | 22×4 | ||||||||
| Pressure | Mpa | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | |||||||||
| Discharging Capa. | m³/min | 4 | 4 | 6 | 6 | 8 | 8 | 10 | |||||||||
|
Low Pressure Air Compressor Unit |
Power | kw | 22 | 22 | 22 | 30 | 44 | 22 | 30 | ||||||||
| Pressure | Mpa | 1.25 | 1.25 | 1.25 | 1.25 | 1.25 | 1.25 | 1.25 | |||||||||
| Discharging Capa. | m³/min | 3.0 | 3.0 | 3.0 | 4.0 | 6.0 | 3.0 | 4.0 | |||||||||
| Air Tank | Capacity | m³ | 0.6 | 0.6 | 0.6 | 1 | 2 | 2 | 2 | ||||||||
| Working Pressure | Mpa | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | |||||||||
| Water Chiller | Cooling Capacity | kcal/hr | 35200 | 35200 | 35200 | 49800 | 49800 | 35200 | 35200 | ||||||||
| Compressor Motor | HP | 10 | 10 | 15 | 15 | 15 | 10 | 10 | |||||||||
| Air Dryer | Capacity | m³/min | 4 | 4 | 6 | 6 | 8 | 8 | 10 | ||||||||
| Working Pressure | Mpa | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | |||||||||
| After Cooler | Capacity | m³/min | 4 | 4 | 6 | 6 | 8 | 8 | 10 | ||||||||
| Working Pressure | Mpa | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | |||||||||
|
Air Filter Oil Filter Odor Removal Filter |
Capacity | m³/min | 4 | 4 | 6 | 6 | 8 | 8 | 10 | ||||||||
| Working Pressure | Mpa | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | |||||||||
| Prod Model: | CSD-AB Series |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Character: | Maximum Efficiency in Linear Blowing |
| Automation: | Automatic |
| Making Method Of Parison: | Stretch Blow |
| Raw Material: | PET |
| Computerized: | Computerized |
| Certification: | CE |
