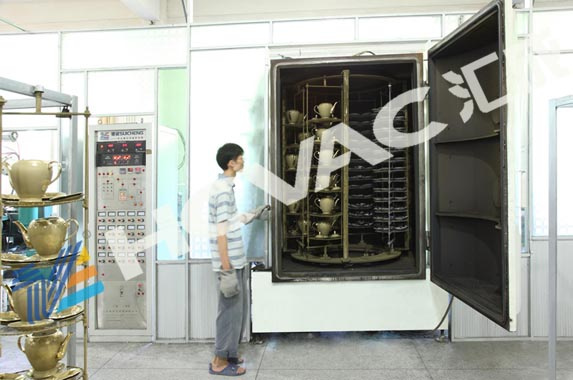

Ceramic gold coating machine /ceramic coating equipment is high efficiency, harmless and pollution-free. It has the features of fast deposition rate, great ionization rate, big ion energy easy operation, low cost, large productive capacty etc.
The machine suitable for coating all ceramic, porcelain, glass mosaic, mosaic tiles, also suitable for ceramic tablware and other metal products.
The principle of vacuum electric arc ion coating is intergrating cold cathode, arc discharge Self-sustained light, ionization plating material with pulse technique to improve depostion particle energy and survival rate and the properties of the film. It can coat on the surface of the metal as well as nonmetal.
Applied industry: It can be used to coat metal film, titanium nitride titanium carbide, and
Zirconium nitride, chromium nitride and titanium, nickel, chromium, copper and other
Compounds film, multi-layer super-hard film, nitrogen-doped titanium film and the alloy film, titanium nitride mixed with gold-plated titanium nitride film.
This machine extensively apply to Tooling, super hard film of mould, alloy wheels, golf ball pole, watch, hotel appliance, stantitary, glasses frame, hardware, ceramic and glass ect with decorative film.
Our company focusing on improve roundness electronic arc evaporation source and develop high performance rectangular flat electric arc evaporation source. Meanwhile, we had install it into new machine.
Company Introduction:
The coating experts of your own company: Full set solution for the coating production.
HCVAC can help you to enter the PVD coating easily by our vacuum coating machine and full range service. We will provide with most suitable technology according to your requirements.
We will make the special coating solution for each customer; Combine the full set production technics to meet your requirements, to ensure high efficiency of production.
We developed a complete after-sales system and effective service measures. Company now owns a professional after-sales service team with more than ten experienced engineers.
A special after-sales service hotline is set up to provide the customers with satisfactory problem solutions and technical support.
SO 9001 standard to ensure the quality can meet the customer's requirements.
Please feel free to contact us for further information!
Contact: Lillian Yang
Mobile: 0086-13825720037
Mode
Dimension
|
LH-800
|
LH-1100
|
LH-1250
|
LH-1600
|
LH-1800
|
800*1000mm
|
1100*1000mm
|
1250*1500mm
|
1600*1800mm
|
1800*1800mm
|
Maily application
|
Metal decorative coating and Ceramic decorative coating
|
Coating mode and main confirguration
|
Eight multi-arc targets
|
Ten multi-arc targets
|
Twelve multi-arc targets
|
Twenty multi-arc targets
|
Twenty two multi-arc targets
|
Power source
|
Electric-arc power, Filament power,
|
Process gas control
|
Mass flowmeter + Electromagnetic ceramic valve
|
Vacuum chamber structure
|
Vertical side opening door, pump system postposition, double water cooling
|
Vacuum system
|
Molecule pump +Roots pump +Mechanical pump(8.0*10 -5 Pa)
Diffusion pump +Roots pump +Mechanical pump(8.0*10 -4 Pa)
|
Workpiece baking temperature
|
Normal temperature to 350 centi-degree PID control, radiation heating.
|
Workpiece motion mode
|
Public rotation Frequency control: 0-20 rotation per minute
|
Measure mode
|
Number display composite vacuum gauge: from atmosphere to 1.0*10 -5 Pa
|
Control mode
|
Manual/Automatic/PC/PLC + HMI/PC four choice of control mode
|
Remark
|
We can design the dimension of the equipment according to customer's special technique requirement.
|
