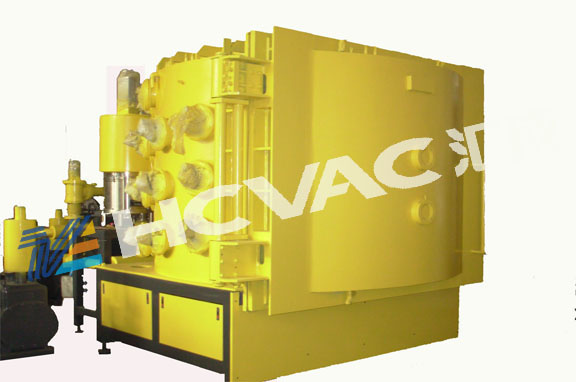

Ceramic Tiles Golden Color Coating Machine (LH)
| Price: |
US $ 1/Set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
Ceramic Tiles Golden Color Coating Machine is a ion coating machine of efficiency, harmless and pollution-free. It has the features of fast deposition rate, great ionization rate, big ion energy, easy operation, low cost, large productive capacity, etc.
Characteristic: The principle of the electric arc is intergrating cold cathode arc discharge self-sustained light unite pulse technique and magnetron sputtering technology, thinning the particles to improve the properties of the film. It can coat on the surface of the metal as well as nonmetal.
Applied industry: It can be used to coat metal film, titanium nitride, titanium carbide, and zirconium nitride, chromium nitride and titanium, nickel, chromium, copper, and other compounds film, multi-layer super-hard film, nitrogen-doped titanium film and the alloy film, and in a very short time to complete all the machining process, it is a highly efficient multi-functional coating equipment

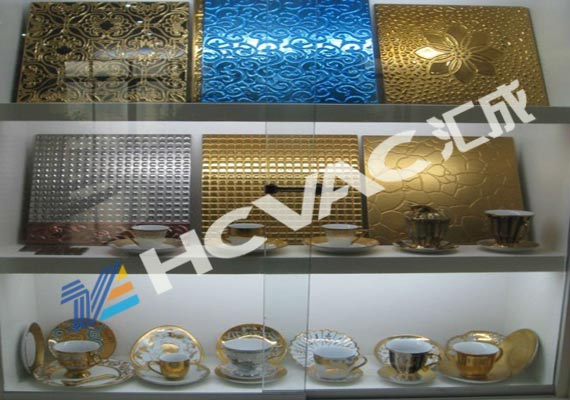

This machine is extensively used in the fields of ultra-hard coating about the tools and mould, decorative coating about car wheels, ceramics,glass, golf, watches making, hotel product, sanitary ware, luminaires, optical frame, hardware, etc.
HCVAC can help you to enter the PVD coating easily by our vacuum coating machine and full range service. We will provide with most suitable technology according to your requirements.
We will make the special coating solution for each customer; combine the full set production technics to meet your requirements, to ensure high efficiency of production.
Easy to implement
To many people unfamiliar with the process, PVD coating technology seems complicated. However, with the right investments and a good support, it is easier than expected. HCVAC has developed a turnkey coating process that makes a PVD coating centre easy to implement. A complete coating process consists of several steps: stripping (depending on the part's history); pre-treatment; quality control; cleaning & drying; fixturing & visual inspection; PVD coating; quality control & thickness measurement and post-treatment (depending on the application). These steps are all available from one partner: HCVAC Technology, including mature technics and coatings.
|
Mode |
LH-1000 |
LH-1150 |
LH-1200 |
LH-1600 |
|
mension |
1000×1200 |
1150×1200 |
1200×1300 |
1600×1800 |
1600×2200 |
|
Coating |
Gold TiN, black TiC, rainbow TiO, wear resistant coating, supper hard coating, DLC coating, metal decorative coating and so on |
|
Power supply system |
DC power supply, MF power supply, arc power supply,filament power supply,activation of the power supply, pulsed bias power supply |
|
Target type |
Multi-arc target, MF twin targets or plane target as options |
|
Vacuum chamber structure |
Vertical front door(Double water jacket type cooling or sink type cooling),the rear air exhaust system |
|
Vacuum system |
Mechanical pump+Roots pump+diffusion pump/Turbo molecular pump+holding pump |
|
Heating system |
Normal temperature to 350 centi-degree adjustable and controllable (PID control), radiation heating by stainless steel heating pipe |
|
Inflation system |
Mass flow control(1-4 road) |
|
Ultimate vacuum |
6×10- 4 pa(no-load,cleaning room) |
|
Vacuum time |
Pumping time less than 13 minutes ,from atmospheric pressure to 310 -3 Pa mo-load |
|
Pressure maintaining rate |
1h≤0.6pa |
|
Workpiece rotation |
Up rotate or bottom rotate + common rotation frequency conversion stepless controlable and adjustable, 0 to 20 RPM |
|
Control mode |
Manual+semi automatic/touch screen+PLC |
|
Remark |
Vacuum chamber size can be customized according to the requirements of customers products and special process |
| Prod Model: |
LH-1215, LH-1618, LH-1820, LH-2121 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| After Sales-Service: |
Engineers Available to Service Machinery Overseas |
| Application: |
Decorative Coating, Widely Use in Coating Ceramic |
| Brand: |
Hcvac |
| Coating Technology: |
Arc Cathode Sputtering, Ion Plating, Plasma Sputte |
| Certification: |
ISO |
| Control System: |
PLC |
| Type: |
Ceramic PVD Coating Machine |
DongGuan HuiCheng Vacuum Technology Co., Ltd is a high-tech enterprise specialized in the R&D, Production and Marketing of various kinds of the vacuum equipments. Our company aggregates many excellent technicians in the vacuum industry, including engineers with the senior and middle technique titles. We also invite the senior experts and experienced technicians to be responsible for the development and design of the new products, insure the high technology and quality of the vacuum equipment. Our products are popular with both the domestic and overseas clients, and have a high reputation in the vacuum industry.
Our company is dedicated to the R&D of the series of the vacuum coating machine. We have been designed various coating technics projects according to different requirements successfully, especially in the fields of mobile(computer) shell, electronical appliance, metal, auto parts and high-tech industries, etc. Particularly we designed the special wheels coating machine for the VIP enterprise in Zhejiang Province in 2007, bringing great benifits for the client, making prominent contribution to the environment protection and generating extremely positive social effectiveness. It is high appreciated by the government and craft brother. Therefor this project is listed to the item of the Nation Star Project. Our main products also include slide valve vacuum pump, Roots vacuum pump, water ring vacuum pump, rotary-vane vacuum pump, various vacuum units and different vacuum heating energy equipments, etc.
Our company sticks to the selling concepts of"People-Oriented, Keeping improving, Innovative and Factualistic, Customer First"; Holding the management policy of "Keep the science and technology ahead, Put quality and service at the first place"; Carrying forward our corporate spirits"Honesty and High efficiency, Unity and Struggle, Factualic and Innovative". We'll continue to hold the development and improvement as our main rhythm, stepping forward to the goal of becoming diversification, internationalization and high technological modern enterprise. We will make new contribution to set up the international advanced level in the vacuum fields.
