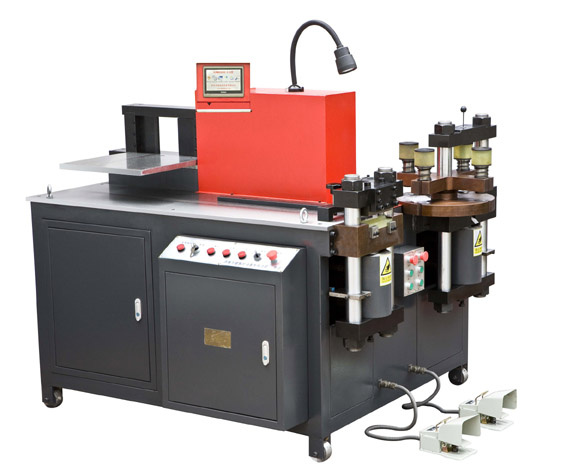

CNC Bus Bar Processing Machine
Price: |
Negotiable/Piece |
Trade Terms: |
FOB,CFR,EXW |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
This machine is special for processing aluminum and copper busbars used in electric power, high/low voltage electric apparatus and busway industries. It combines punching, cutting and bending functions together as well as some other functions such as embossing, twisting, flatting, pressing tie-in, etc.I Main features: 1.1 Angle bending accuracy: +/- 1°1.2 Special punching mould, no pressing marks to the workpiece surface1.3 Special turret punch structure, with 4 punching heads, one time can punch 4 kind of holes without stopping machine to change tools1.4 Cutting device adopts patent double-column structure, smooth cut, no waste, no burr1.5 Double worktable for bending station, real separate working1.6 PLC control bending, bending angle can be pre-set and savedII Main technical data: 2.1 For punching: Max. punching pressure: 300kN Hole diameter: 4.3-25mm Max. thickness: 12mm Max. width: 160mm Punching heads: 4 sets mounted on the machine (from 4.3~25mm)2.2 For cutting: Max. cutting thickness: 12mm Max. cutting width:160mm2.3 For bending: Max. bending pressure: 300KN Max. bending width:160mmMax. bending thickness: 12mmEquipped with two bending tools: R5 and R102.4 For vertical bending: Max. bending width: 120mm (10mm thick copper) Min. bending angle: 90°
2.5 Dimension: 1700 x 1350 x 1500mm2.6 Weight: about1390kg2.7 Main driving motor power: 4kW x 3III Main configuration3.1 Main driving motors: from Taiwan3.2 Oil pumps: from Taiwan3.3 Electromagnetic valves and overflow valves: from Taiwan3.4 Relays: Schneider3.5 Contactors: Schneider3.6 Other electric parts: from China3.7 PLC: Panasonic from Japan3.8 Touch screen: 7" big size from domesticIV Accessories4.1 Punching moulds: 8 sets (sizes can be selected)4.2 Cutting blade: one piece4.3 Horizontal bending moulds: two sets4.4 Vertical bending moulds: two sets4.5 Embossing mould: one set4.6 Tool kit: one4.7 Foot switches: 3 pieces
