Introduction:

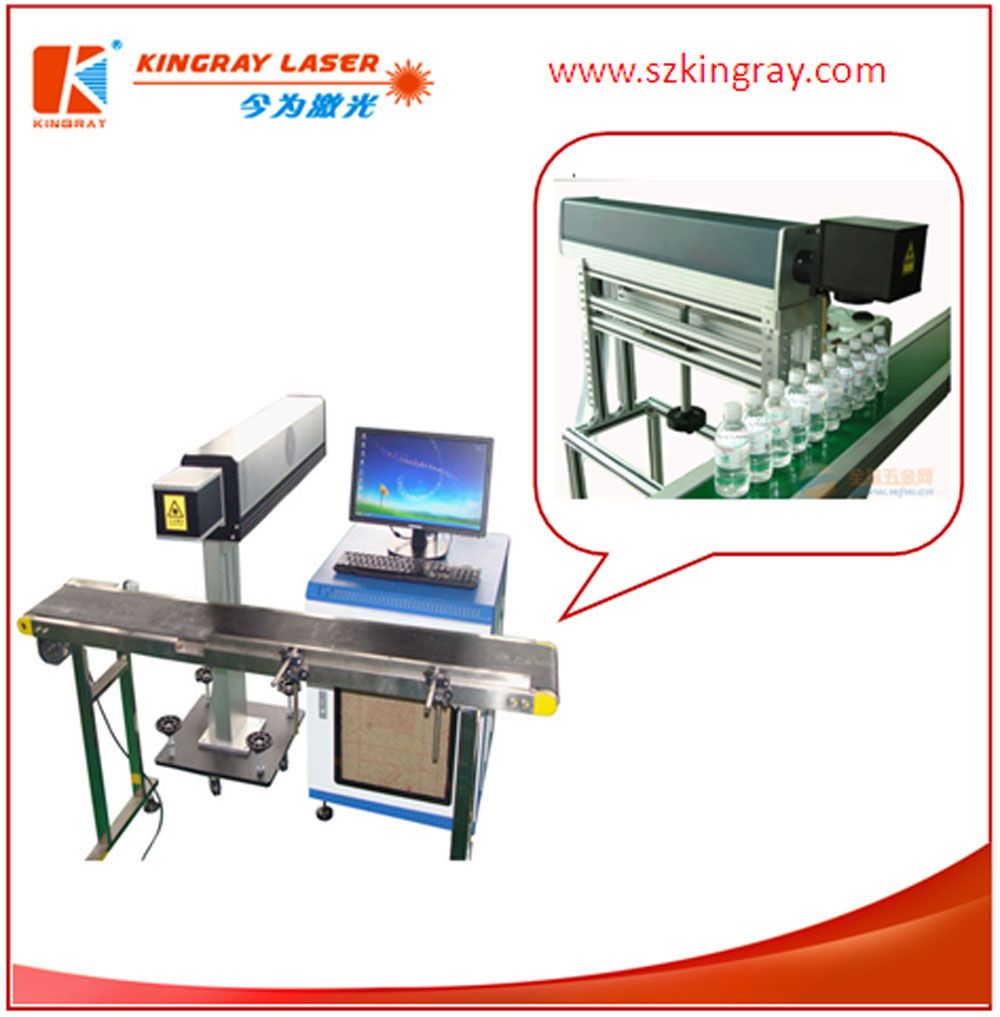

Smart card laser marking-on-the-fly is combined by the packaging marking equipment and production line, which has the function of specified location and rotary marking to achieve marking at any angle. It conforms with European environment protection standard. It marks many forms such as characters, figures, bar codes, QR codes precisely, clearly and indelibly. The laser flying marking machine can mark on both outer code and internal code. For internal code card, it marks quickly as soon as reading it, and can identify bad card, then reject it.
Features:
1. Compact structure, safe and convenient to assembly in different production lines.
2. Modular design, perfect self diagnosis system, and easy maintenance.
3. The complete machine meets the ergonomics design, adopts high-performance embedded integration touch screen, with compact structure, powerful functions and easily operate.
4. Using new type of laser dot matrix technology, It can improve the flexibility of encoding by regulating power, adjusting the density of dot matrix and laser dwell time.
5. It has friendly interface and can mark letters, Chinese characters, icons, symbols, QR codes, bar codes, date, serial numbers, random numbers and be able to mark any font in real time.
Application industries:
It is widely used for craft gifts, sign-making, greeting cards, books and periodicals, electronic components, medical packaging, food and beverage packaging, cosmetics, smart cards and daily cosmetics, etc.
Suitable Materials:
Suitable for non-materials like paper, coated paper, Plastic(PET, ABS, PVC), organic glass, epoxy resin, PMMA, rubber, ceramic, crystal, jade, bamboo ware.
Technical Parameters:
| Type | Parameter | Type | Parameter |
| Laser type | Sealed-off RF CO2 laser | Character height | Any height in marking area |
| Laser power | 30W/60W | Character size | 0.25mm-100mm |
| Wavelength | 10600nm | Ambient humidity | 10-95% |
| Signal input | NPN/PNP/12V-Sensor | Marking location | 0-90° adjustable |
| Marking speed | 1000 C/S | Image orientation | 0-360 degreed |
| Linear velocity | ≤180 M/min | Detection signal input | Speed detection of
optical-electricity encoder |
Average power
consumption | 300W | Electric requirement | 220V±10%50HZ/10A |
Max. power
consumption | 500W | Cooling method | Air cooled |
| Character format | Dot matrix/Vector | Total weight | 120KG |
| Character type | QR code/bar code/
date /serial number |
|
|
