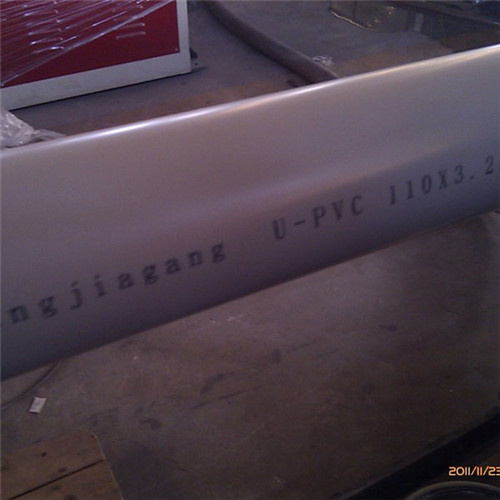

CPVC/UPVC/PVC Pipe Prduction Line

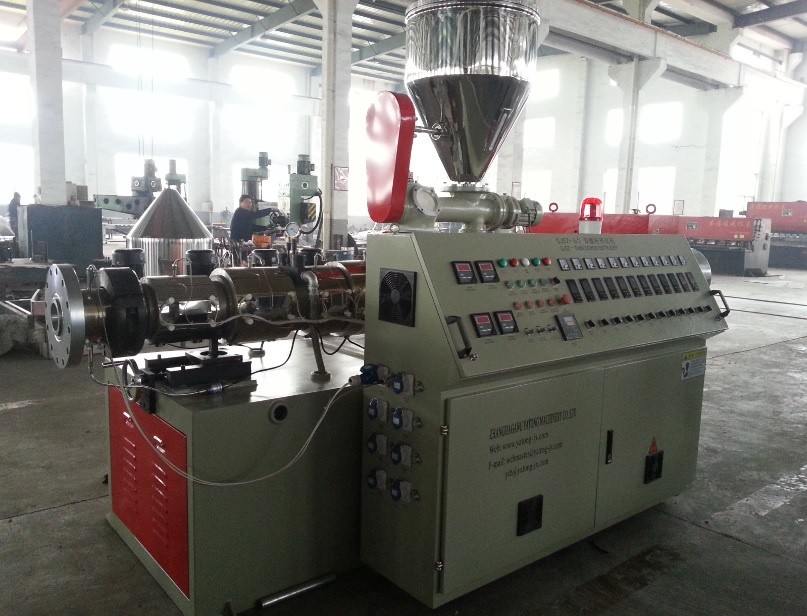

SJSZ series plastic extruder/ extrusion machine are special equipments which can extrude and mold by using various kinds PVC powders. Equipped with different kinds of molds and auxiliary machines, it can produce various PVC pipes, profiles, sheets, plates, bars and granulation.
This kind of plastic conical double screw extruder has widely use, it is specialized for all kinds of plastic extrusion.
Item | SJSZ-45 | SJSZ-51 | SJSZ-65 | SJSZ-80 | SJSZ92 |
Diameter of screw(mm) | 45/100 | 51/105 | 65/132 | 80/156 | 92/188 |
Number of screw(mm) | 2 | 2 | 2 | 2 | 2 |
Direction of screws | Outwards contra-rotating |
Screw rotation speed(rpm) | 1-37 | 1-32 | 1-34.7 | 1-36.9 | 1-32.9 |
Effective length of screw(mm) | 985 | 1070 | 1440 | 1800 | 2500 |
Power of main engine(kw) | 15 | 22 | 37 | 55 | 90 |
Barrel heating power(kw) | 12 | 18 | 24 | 36 | 60 |
Production capacity(kg/h) | 95 | 80-120 | 160-250 | 300-360 | 500-600 |
Center height(mm) | 1000 | 1000 | 1000 | 1000 | 1200 |
Net weight(kg) | 2800 | 3200 | 4000 | 5000 | 10000 |
Dimensions(mm)(L×W×H) | 3620×1050×2157 | 3000×1050×2200 | 4235×1520×2450 | 4750×1550 |
|
Zhangjiagang Yatong Machinery Co., Ltd., is located in the beautiful and economic-strong city of Zhangjiagang, Jiangsu. Founded in 1998 with an area of more than 15, 000 square meters, it is a professional manufacturer in the field of plastic pipe and profile extrusion PE, PP FILM and PET recycling, etc. Our machines are serving in most part of the world, including Asia, South America, Middleast, Europe, etc. And received numerous favorable feedbacks from overseas customers.
Providing our customers with the best quality machine is our ultimate goal, thus, Yatong Machinery Co. Offers superior service through a well-trained and dedicated work force. We are ISO 9001: 2000 and CE certified.
