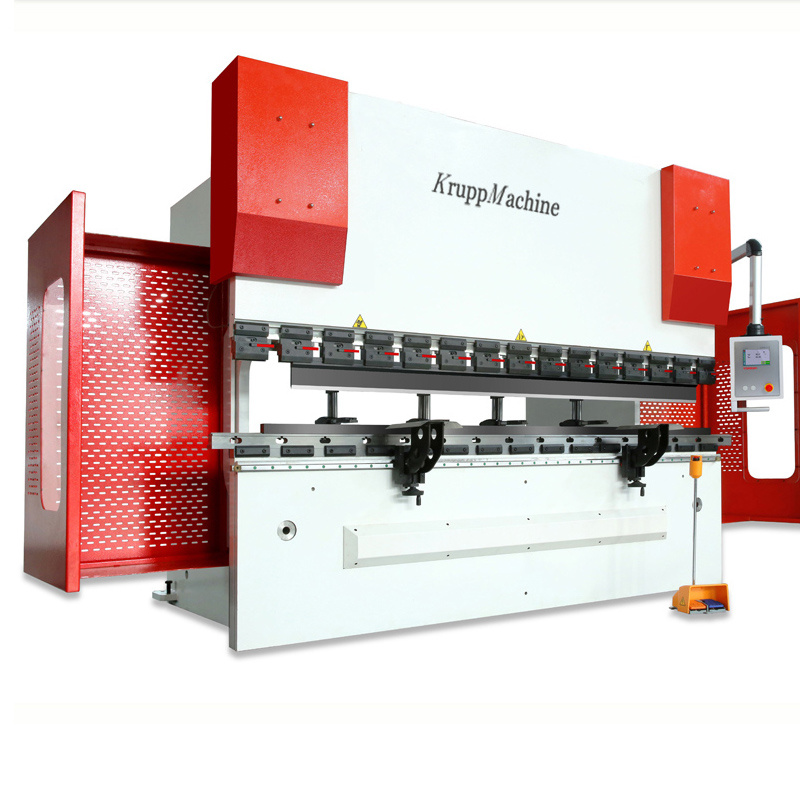

1.The heavy duty rack which is novel and attractive with the largest structure rigidity and accuracy
2.Large size of safety barrier around the machine,they provide adequate work space and are equipped with transparent organic glass.
3.The large size throat can process larger work pieces.

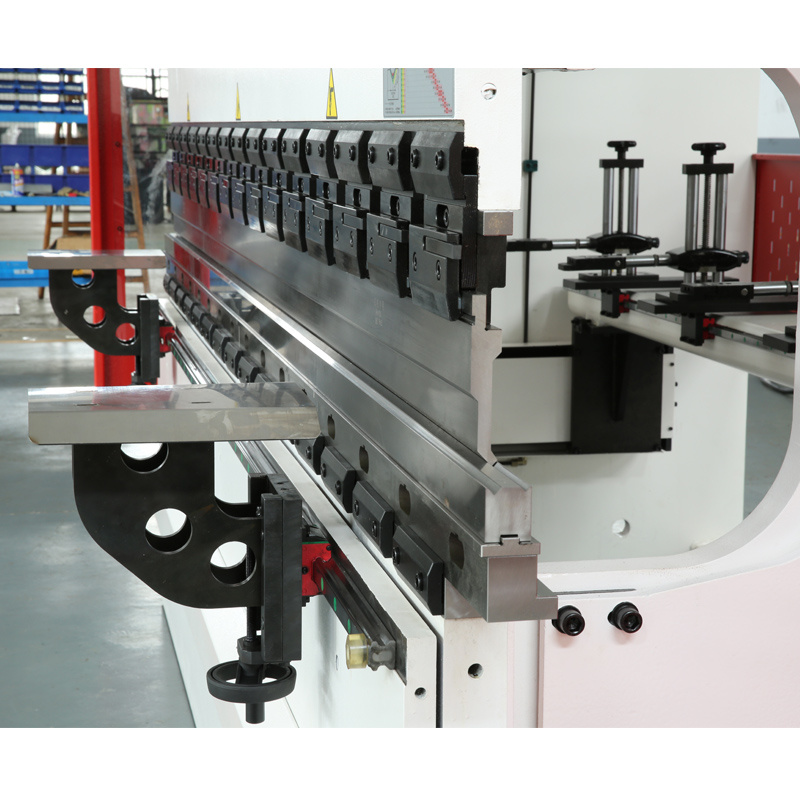

4.The various forms of tool clamping mechanism can be configured according to different requirements.
5.High quality bending mold adopts the overall heat treatment,high precision processing standards make the mold using comfortable.
6.All kinds of front support are applicable to all production needs.
Model | Nominal Pressure (kn) | Length of table (mm) | Distance Between Housing (mm) | Throat Depth (mm) | Stroke (mm) | Open High (mm) | Dimensions (L x W x H) (mm) |
50/1600 | 500 | 1600 | 1200 | 250 | 160 | 440 | 2100x1250x2200 |
70/2500 | 700 | 2500 | 2000 | 320 | 160 | 460 | 3000x1350x2250 |
100/2500 | 1000 | 2500 | 2000 | 400 | 200 | 500 | 3000x1450x2400 |
100/3100 | 1000 | 3100 | 2600 | 400 | 200 | 500 | 3600x1450x2450 |
100/4000 | 1000 | 4000 | 3200 | 400 | 200 | 500 | 4500x1500x2550 |
160/3100 | 1600 | 3100 | 2600 | 400 | 200 | 500 | 3600x1650x2700 |
160/4000 | 1600 | 4000 | 3200 | 400 | 200 | 500 | 4500x1700x2850 |
200/3100 | 2000 | 3100 | 2600 | 400 | 250 | 550 | 3600x1750x2800 |
200/4000 | 2000 | 4000 | 3200 | 400 | 250 | 550 | 4500x1750x3050 |
250/3100 | 2500 | 3100 | 2600 | 400 | 250 | 550 | 3600x1750x2850 |
250/4000 | 2500 | 4000 | 3200 | 400 | 250 | 550 | 4500x1750x3150 |
320/3100 | 3200 | 3100 | 2600 | 400 | 300 | 600 | 3700x1850x3000 |
320/4000 | 3200 | 4000 | 3200 | 400 | 300 | 600 | 4500x1850x3350 |
400/4000 | 4000 | 4000 | 3200 | 500 | 300 | 600 | 4500x2100x3200 |
400/6000 | 4000 | 6000 | 4800 | 500 | 300 | 600 | 6500x2250x4200 |
