Extruson Bottle Blow Molding Machine

Extruson Bottle Blow Molding Machine
Price: US $ 42000/Set
Trade Terms: FOB,CFR,CIF
Min Order: 1/Set
Pay Type: L/C,T/T,D/P
SPB-5L2JUS blow molding machine

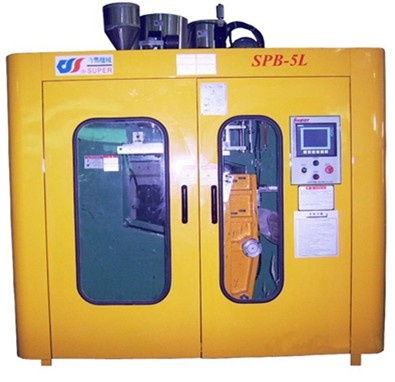

SPB-5L model Single station series automatic blow molding machine
Product intro duction:
This style is man-machine interface, easy to operate. Double station and single station, from single mould head to six mould head, single layer to six layers, multi layer with transparent line. It can match in-mold labeling, auto-deflashing device, crusher recycle system. The daily output (24hrs) reaches approximately from 5000 to 86000; It can produce from 0.2 to 5L plastic hollow products.
.
Extrusion System
A. We've introduced into a set of system of extrusion design, analog data analysis, which carries out real-time supervision and monitoring in accordance with plastic material type at different process sections (Feeding, Plasticization and Blending), it adjusts the screw parameter design, temperature and speed. The purpose is to achieve the best injection result for the different models of plastic.
B. The system is made by a Taiwan-base professional manufacture, with our precise process skill, we adopted Japan special steel and advance CNC equipment, and ensure result in high precision and long durability.
C. Advantage:
1.40% more than traditional design in injection output;
2. Guarantee products weight stability and smallest tolerance, to reach +-1g;
3. The plasticization result is even, the color is bright and steady.
We have adopted advanced Germany originated notching extrusion system. The screw is different from conventional design, featuring in boost extrusion that ensure smooth extrusion rate, superior plasticizing/mixing and perfect proportioning extrusion with 20 to 30 percents flow rate over the conventional extruder. The new extruder is applicable to PE, PP, PS, PVC, TPU, PETG, PA, ABS, EVOH, EVA, POM and other.

Hydraulic system
We introduce into America hydraulic system design of blow molding machine for the whole hydraulic system and parts, purchase for the oil pump, oil valve, oil panel, pressure flux two-proportions valve and nitrogen store system, with the special hydraulic filtrate system to make sure the whole hydraulic move swift, steady, no strike, durable, low noise, save power, and hydraulic pressure oil.
Germany design die, improved central inlet ensuring first in first out of material benefit in fast flush color changing. Top quality 38 CrMoala die machined in 4 axis CNC machine completed with hear treatment; Extremely long life. Effectively assure seamless parision with superior thickness control while minimize creation of internal stress.
With 100 points MOOG controller system

Airing circulation system (Pneumatic parts)
Thanks to our experience for many years in this field and the airing constituent FESTO and SMC respectively imported from Germany and Japan. We have designed and produced a series of airing circulation system including the blowing technology, clearance airing and airing dryness system.

Electricity circuit system, touch screen
Use occident world famous brand, and our professional design control system and PLC parts for blow molding machine, module design, enlarge or change is agility, center control, network long-distance check, multi group data message, brainpower focus temperature control, self-motion alarm for trouble, action auto reset, screw, auto cooling protect setting, store for many group setting parameter, auto record the output and cycle time, the touch screen can interchange Chinese, English, Spanish etc.
SUPPER machine parts name and brandfor choice
Type Part Name Brand Name
Hydraulic system Hydraulic valve Vickers from USA/
Yuken from Japan
Servo Valve Italy/
Yuken from Japan
Proportional Valve Yuken from Japan
Oil Seal Sealtech from Italy/
Japan
High Pressure Filter Taiwan
Lub oil Supplier Taiwan
Parison Programming Actuator Japan
Accumulator Renhexin from China
Inner Gear Pump Japan
Oil Tube connection Cheetah from Henlucky
Electric system

PLC Controller and Temperature control module B&R from Austria/

Allen Bradley from USA
Inverter INVT from China
LG from Korea
Linear Transducer Germany
Guide Rall/Slide bearing Rexroth from Germany
Switch-Power Supply Mean Well from Taiwan
Pressure sensor-die head Zhaohui from China
Solid state Relay Carlo Gavazzi from Swiss)
Motor China
Proximity Switch Carlo Gavazzi from Swiss
Extrusion system Screw,Barrel Taixing from Taiwan
Gear Box Shuguang from China
Pneumatic System Solenoid Valve SMC from Japan/
FESTO from Germany
Cylinder for Movement SMC Japan
Prod Model: SPB-5L2JUS
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Total Electrical Power Rating: 28.1kw
Average Electrical Power Rating: 16kw
Machine Net Weight: 3.3tons
Screw Diameter: 65mm
Extrusion Driving Power: 22kw
Drive Motor: 22kw
Inverter: 7.5kw
Heating Capacity: 9.6kw
Extruding Capacity Per Hour HDPE/PP: 50kw
Min./Max.Diameter Of Product: 30-100
Automation: Automatic
Making Method Of Parison: Extrusion-Blow Molding
Computerized: Computerized
Certification: ISO9001:2008
Raw Material: PE/PP/PS/PETG/PVC/EVOH/PC
Hong Kong DeKeWei Machinery Group is a professional manufacturer who dedicates itself to research, develop and manufacture full automatic extrusion blow molding machine and its auxiliary equipments. Our group's factory, namely Dongguan Jinjun Machinery Co., Ltd. Was established in 1999 in Dongguan City, Guangdong Province, China.
Our factory covers an area of 16, 000 square meters, and has automatic processing equipments such as CNC turning-lathe, CNC processing center, imported inner outer round grinding machine, automatic sheet metal coating production line. Our production capacity is 300 blow molding machines, 400 leak testers, 200 plastic bottles bagging machines and others.
We insist strict implementation of ISO9001 quality certification system, and can provide customers with comprehensive technical support and services. We have become one of the leading suppliers of automation solutions for the blow molding industry. We are the blow molding and packing solutions supplier to some famous international brands including Shell Group, bp, Caltex, Sinopec, Mobil, P&G and Unilever.
Our reputation for professional sales force, knowledgeable application engineers, efficient project teams, and skilled service technicians makes us a winning combination.
