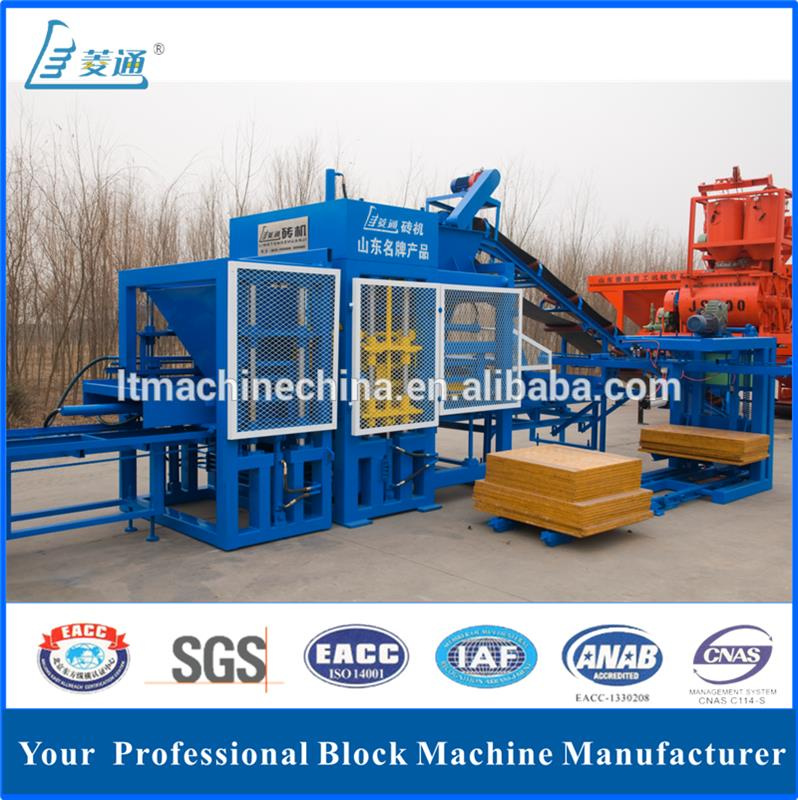

Introduce of T10-15 Production Line with Curing Kiln System block making machine production line
Product Features
1.The block making machine of Lingtong Heavy Industry belong to general equipment for concrete blocks, and can be used to produce a variety of concrete wall blocks by the replacement of molds, such as new thermal-insulation bricks, hollow bricks, multi-hole bricks, solid bricks and so on.
2.all kinds of paving blocks such as interlocking bricks, Dutch bricks and paving stones, and a variety of special concrete elements, hydraulic blocks, dry-bonded bricks, planter bricks, palisade bricks for parks, airports, docks and other purposes.
3.The machine is applicable for the manufacture of high-quality and high-strength concrete or fly ash blocks, and is the most advanced and the most reliable model in the domestic market.
4.The company has production lines of different configurations to meet the processing requirements and production needs of users for most concrete products.
Product Quality
1. Hollow Block
Size: 390×190×190mm
Quality: compressive strength higher than 10Mpa (a certain amount of fly ash can be added, and the ratio is about 30%)
2. Multi-hole Brick
Size: 240×115×90mm
Quality: compressive strength higher than 15Mpa (a certain amount of fly ash can be added, and the ratio is about 30%)
3. Solid Brick
Size: 240×115×53mm
Quality: compressive strength higher than 15Mpa (a certain amount of fly ash can be added, and the ratio is about 30%)
4. Color Paving Brick
Size: 200×100×60mm
Quality: compressive strength higher than 30Mpa
LTQT10-15 Full-automatic concrete production line includes:
Equipment I: base material batching and stirring system
Class III or Class IV feeder, planetary mixer, belt conveyor and screw conveyor
Cement metering system and water metering system
Equipment II: block making machine (European version main machine) sweeper mold, electric control cabinet and hydraulic station
Equipment III: automatic surface material equipment system
Equipment IV: automatic finished delivery system
Pallet rising machine, programmed subequipment, pallet lowering machine, pallet turning unit, oil immersion unit, pallet/brick delivery machine and pallet returning unit
Equipment V: automatic stacking system
Skip deliver system, depanelization machine, panelization machine, brick sorting mechanism, full-automatic stacker crane
Equipment VI: centralized control system
Stirring and batching, product molding, finished product delivery, centralized control of automatic palletizing, etc.
Equipment VII: high-end configuration
All imported electrical elements and components, improving equipment performance and extend equipment service life (optional)
Technical Parameters
Technical parameters |
Dimensions of main frame(L*W*H) |
8100*2000*3000 |
Rated working pressure |
25Mpa |
Exciting force |
100KN |
Dimension of pallet |
1150*950*30 |
Whole weight |
17T |
Molding cycle |
15s |
Power of main frame |
41KW |
Capacity
BlocK sample |
Size |
Pieces/time |
Pieces/H |
Remark |
Hollw block |
390*190*190mm |
10 |
2400 |
8hours/day
300days/year |
Multi-row perforated brick |
240*115*90mm |
24 |
5760 |
Standard block |
240*115*53mm |
48 |
11520 |
Pavment brick(single color) |
200*100*60mm |
36 |
8640
|
Attentions:
