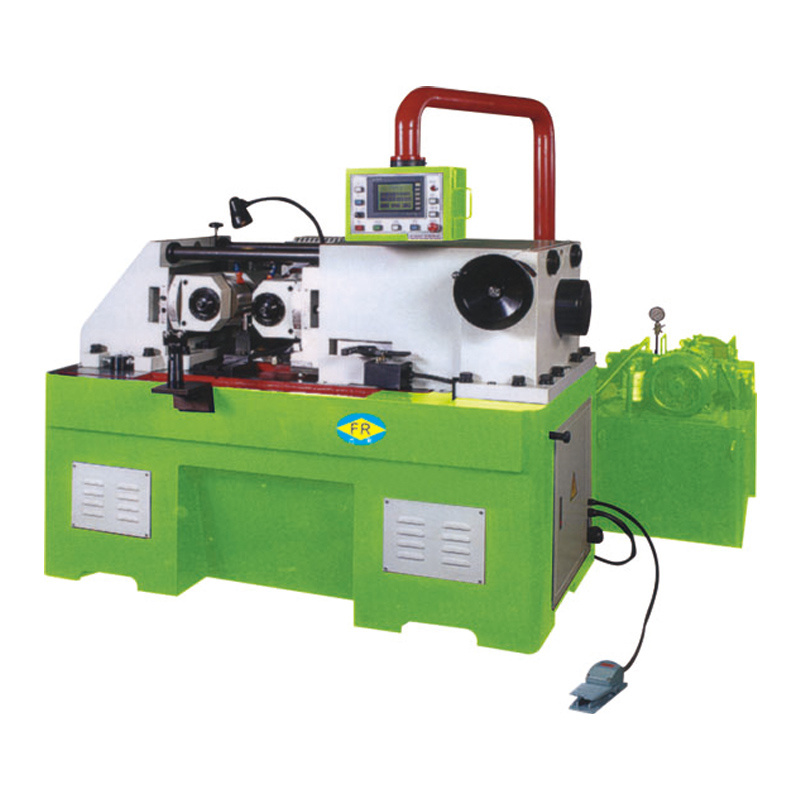

Model: FR-75 two-roller Threading Rolling Machine for metal (steel, aluminum, copper, brass, stainless steel, SS) tube or pipe
Advantage
1, multi forming machine
2, Taiwan column injection pump
3, Gimbal imported material
4, Japanese bearing
5, low noise
Axis rolling machine
Use for metal pipe external thread rolling
Dual-use for rolling through and fixed
Skate with hydraulic feed drive, accurate positioning;
Suitable for processing small pitch and long large parts;
With square guiding line design, guiding line grinding after heat treatment, to strengthen the machinery moving smoothly.
Features:
The series equipment is suitable for rolling thread, rolling cobweb, rolling straight grain, rolling finish, Roll cross flower rolling steel, rolling groove, roll-off, rolling sphere, hobbing, straightening on metal bar.
Hydraulic two roller thread rolling machine series suitable for copper, aluminum, stainless steel and iron. Only for bar and rod, in feed and thru both available
1. Mechanical structure:
One axle fixed, one axle push forward or back, Taiwan brand thread rolling machine technology.
2. Manner of working:
The bars which need to rolling thread are inserted into the middle of the two-wheel, roller cone squeeze the workpiece to making thread, designed for bars.
Advantage
1. In fixed and thru both available.
2. Using Taiwan cylindrical injection oil pump and hydraulic series accessories, electrical appliances. The oil circuit used for a long time no heat without cooling system.
3. Import cardan joint and lubrication system with an electric pump, not Manual injection lubrication pump. Using Japanese bearings.
4. Axles and gears withr heat treatment and fine grinding, the machine with small noise and long-term durability.
5. Taiwan brand speed governor.
6. According customers' requirement, add to automatic feeding device.
Quality Process Certifications: ISO 9000-2008
|
Range of thread diameter |
Bars 10mm-75mm |
|
Range of pitch rolled |
1.0P-6.0p |
|
Max. length of thread rolled |
fixed and thru both available |
|
Speeds of dies |
20-50r/min |
|
Dies outer diameter |
198mm |
|
Dies inner diameter(keyway) |
70mm(14*7) |
|
Dies width |
35, 70, 100, 150mm |
|
Spindles slide travel |
195-275mm |
|
Output(mm/min) |
4-25mm/min |
|
Rollers obliquity |
± 3° |
|
Machine motor |
18.75KW (25HP) |
|
Hydraulic motor |
5.5KW (7½ HP) |
|
Supply voltage |
380V 50Hz |
|
Max. rolling pressure |
60TONS |
|
Weight(reference) |
4700kg |
|
Dimension(L*W*H) |
2520mm*2240mm*2230mm |
Dong Guan Fang Rong Machinery Factory, founded in 2000, is a professional manufacturer that integrates development, production and sale. Fang Rong is special in production thread processing equipment and precision cold drawing machines. In 2005, Fang Rong factory passed the ISO9000: 2001 quality system certification, and received a number of patents. Now, Fang Rong is developing and selling various machines, such as
1) Thread processing equipment:
A, thread rolling machines (rolling machines)
B, threading machines (air pressure, hydraulic)
C, thin tube rolling machines (lamp rolling machines)
D. The whole tooth machines
E. Tapping machines of six-axis
2) Precision cold-drawing equipment:
A, drawing machines,
B, straightening machines,
C. Pointing machines
Over the years, our goal has been to create professional and classic equipment, first-class products and best service to achieve product specialization, service professional and team specialization. After through Fang Rong people's unremitting efforts, our products are very popular at home and abroad. The prime quality and the best service are confirmed and recognized by customers in China and abroad.
