HIGH SPEED ARMORING MACHINE
I Line description
This line is specially designed for armoring various cables with GI wires. It is also suitable for copper wire screening, taping and armoring.
The carriage has max. 48 bobbins, with back-twist device, better armoring result.
Carriage has safety protection palings; Taping and armoring section have protection cover.
II Line buildup
1) Φ2500 anaxial pay-off stand, one
2) Φ400/48 bobbin carriage, one
3) Stranding moulds seat, one
4) 55kW inverter control motor and reducer, one
5) Φ400/2 taping device, one
6) Φ800/2 wire taping device, one
7) Vertical length counter, one set
8) Φ2000 dual-towing system
9) Φ2500 anaxial take-up stand, one
10) Control system, one
III Main technical data
3.1 Suitable original cable diameter: max. Φ60 mm
3.2 GI wire diameter: Φ0.6~Φ3.6mm
3.3 GI wire numbers: max. 48 pieces
3.4 Cage rotating speed: 13.62~32.65r/min
3.5 Armoring pitch: 96~2602mm
3.6 Film/fabric taping speed: 188~419rpm
3.7 Film/fabric taping pitch: 8~190mm
3.8 GI strip taping speed: 113~258rpm
3.9 GI strip taping pitch: 12~322mm
3.10 Towing speed: 3.23~36.30m/min
3.11 Size of bobbin in the carriage: PN400
3.12 Central wire bobbin size: PN1250~PN2500
3.13 Take-up bobbin size: PN1250~PN2500
3.14 Main driving motor power: 55kW, inverter control
3.15 Central height of the line: 1000mm
IV Description of each section
4.1Φ2500 anaxial pay-off device for central cable
Bobbin size: PN1250~PN2500
Max. weight: 3T
Motorized elevating, motorized clamping/releasing, mechanical friction controlling tension.

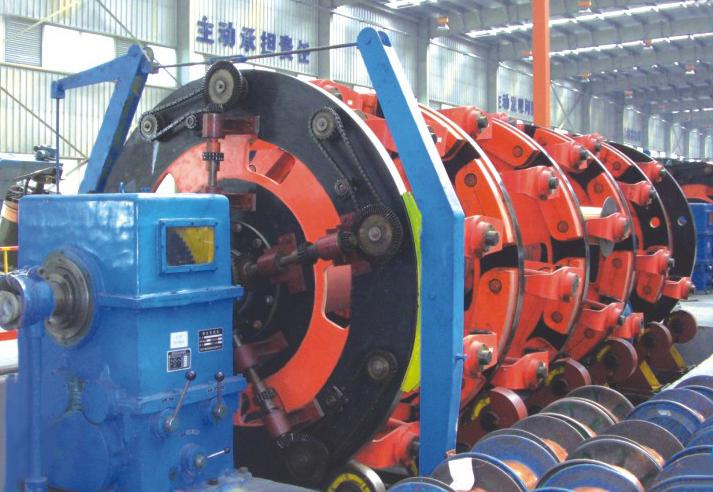

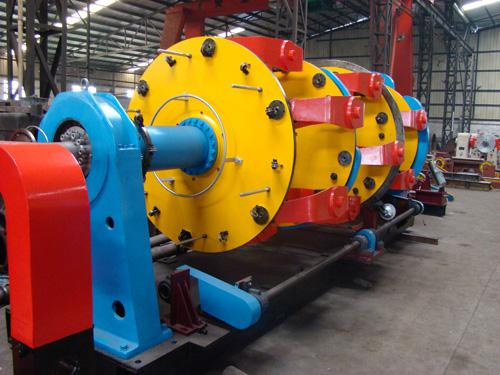

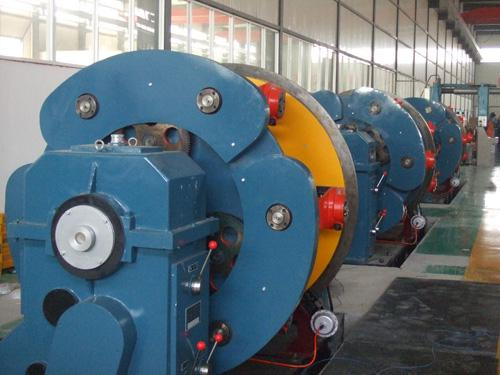

4.2 Carriage section
Structure: double-support-wheel, full-gear back-twisting, high speed
Cage disk is full steel plate milled, diameter 2500mm
Transmission case: 6-shift, FW/RV and Neutral, enough rigidity & reliability
All wire-through moulds are made by corundum, smooth and anti-wearing, no damage to wires/cables
Band-type brake, hydraulic driven
4.3 Stranding mould seat:
Double-row structure, flip-open-cover pressing mould, stranding distance can be adjusted by moving screw.
Through hole diameter: Φ90mm
4.4 Tangential film taping device
Through hole diameter: Φ120mm
Tape bobbin size: Φ400×Φ52×(20~60) mm
Number of bobbins: two
Structure: tangential type, taping angles can be adjusted via worm and gear separately on each dish; tape tension is manually adjusted, friction type
With protection cover
4.5 GI strip taping device
Through-hole diameter: Φ130mm
Strip tape bobbin size: Φ800×Φ200×(20~50) mm
Number of bobbins: two
Thickness of GI strips: 0.1~0.6mm
Transmission case: 6-shift, FW/RV and Neutral
Structure: half-tangential type, frame-rotating taping body; taping pitch is manually adjustable by adjusting guiding rollers.
4.6 Main driving system
Main driving motor: 55kW
Driving system is comprised of motor, reducer, hydraulic arrester, brake disk and coupling, etc.
4.7 Vertical length counter
Mechanical counting by wheel, vertical type
Counting precision: ±4‰
Counting length: max. 9999m
4.8 Dual-towing device
Dual-wheel towing, both wheels active, with grooves
Towing wheel diameter: φ2000mm
Towing speed stages: 27 stages
4.9 Take-up stand (with wire guiding device) Lightning-rod wire guiding
Take-up bobbin size: PN1250~PN2500
Max. weight: 6T
Take-up driving motor: 6kg.m moment motor
Suitable cable size: less than φ50mm
Structure: anaxial, motorized elevating, motorized clamping & releasing
4.10 Control system
Electric control, inverter controlling speed
Power cabinet, main control box, pay-off control box, take-up control box
