Machine name

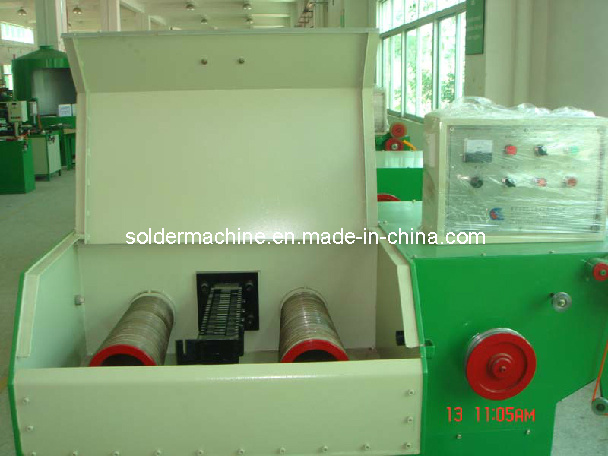

Horizontal Pulley Type Solder Wire Drawing Machine
Application
Apply to tin based solder cored wire with lead or lead free, tin based solder alloy with zinc, silver, copper or aluminum wire drawing, the inlet and outlet wire gauge can be adjustable per your practical production, our standard inlet and outlet wire gauge is 9mm-4.3mm.
Machine specification:
Machine frame: Adopt digital boring machine for hole boring to ensure the concentric of the axis and the machine frame.
Dies seat: Adopt West Germany technology (Inlay type), assure the drawing center distance to avoid the wire breakage.
Drawing axes: Made of S45C medium carbonizes steel with high frequency modified treatment, which can be more wear well.
Roller: Adopt S45C forging steel with high density to be more wear well.
Electric Equipment: Mainly adopt Taiwan SHSI brand.
Motor: Adopt top China brand (Dong Guan Motor), Large wire drawing machine 11KW, Medium wire drawing machine 7.5KW, small wire drawing machine 5.5KW.
Small wire drawing machine adopt inverter speed control. Roller spray chromium to assure the brightness of the fine size wire and reduce wire breakage as well.
Machine Features:
1) Principal electric motor driving on the wire drawing principal axis and winding axis through a flat belt or a gear chain, through wimble drive to winding system and achieve the drawing & winding finally.
2) We adopt both spraying and steeping modes for cooling and cleaning.
3) The wire will traverse pulling wheel and pass the idler pulley, wire setting wheel and then enter into wire receiving tray and finalize the preparation process.
4) Adopts top quality timing electric motor, principal axis processed by digital boring lathe in order to keep the homo-centricity of the axis & the machine.
5) Model seat adopt Germany's enchase technique to protect the model from being damaged
6) Wire stretching axes adopt the middle carbon steel S45C and be treated by high frequency.
7) Step wheels was forging the ball carbon S45C steel and heat-treated by several refine ways, which has long life span without distortion.
8) Step wheel sprayed by rigid chrome to assure wire quality
About our company
Victory Technology Internation Ltd is a foreign Enterprise, which is specialiszed in equipment manufacture &develop for solder powde, solder paste, solder wire, solder bar /stick, silver wire and metal spraying materials, pure zinc, zinc alloy wire ect.
We have been making experience and technologies for electronic solder equipmengt, along with mature solder product producng technologies and formula with more than 20 years history, In 2004, our vivtory has been covering of 33, 000 square meter standard modernized factory building, being the largest electronic solder machine production base.
Our workshop
Pictures with our customers
|
parameter |
VT-17D |
|
Inlet wire diameter |
9mm |
|
outlet wire diameter |
4.3mm |
|
main motor power |
7.5kw |
|
voltage |
380v |
|
cooling method |
steeped |
|
speed control |
pre-fixed |
|
wire speed |
56m/min |
|
die No |
17 |
|
machine elongation rate |
9% |
|
machine dimension |
2200*1010*1380mm |
|
machine weight |
0.8T |
VICTORY TECHNOLOGY INTERNATIONAL., Ltd. is a HongKong-funded joint venture with about 20 years history and a 33, 000-square-meter standard modernized factory building, which is specialized in equipment developing and manufacturing.
Our cored business scopes are:
Solder wire processing line/Zinc wire processing line/SMT solder powder atomizing line/Paste emulsifying and homogenizing equipment/Vibratory screening machines.
On the principle of "Innovative technology and keeping pace with the world", we are blooming into the largest manufacturer in this field in domestic China. we have been introducing advanced technology from the Europe, Japan and Taiwan, so as to improve our products' performance. Kindly feel free to contact us for more details.
