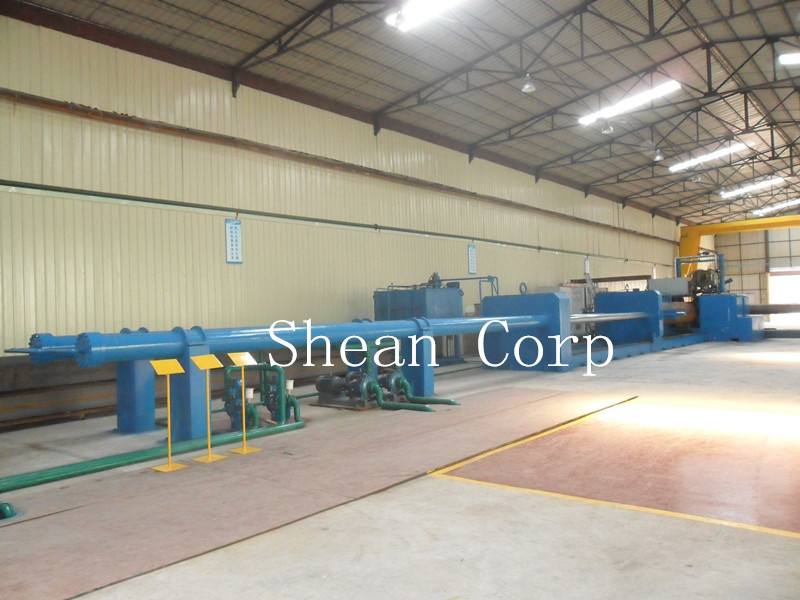

Tube Hydraulic Bending Machine
Tube Hydraulic Bending Machine used seamless steel tubes, welded steel pipe or spiral steel pipe as raw material, intermediate frequency heating, its power and frequency can be adjusted to ensure the appropriate diathermy depth, to ensure the stability of steel tube material properties, intermediate frequency power factor above 0.95, save energy, new design, compact structure, automation and production efficiency.
Working element: Tight pipe --put pipe into coils--tighten front of pipe and fix pipe onto bending arm--open cooling water--set up frequency power--heating pipe--start pushing of bend.
Tube Hydraulic Bending Machine following parts need cycle cooling: Silicon-controlled rectifier, medium frequency heating coil, compensation capacitors, water cable, reactor
Welcome to visit Shean, we would like to show our elbow forming machine, pipe expanding machine, pipe bending machine, tee machine, hydraulic press and the assorted beveling machine, mould to you.
|
Serial number |
Max diameter |
Max thickness |
Stroke of cylinder |
Quantity of cylinder |
Max thrust |
|
(mm) |
(mm) |
(mm) |
(piece) |
(t) |
|
|
|
|
|
|
|
1 |
1420 |
20 |
6500 |
4 |
670 |
|
2 |
1220 |
20 |
6500 |
4 |
600 |
|
3 |
1020 |
20 |
6500 |
4 |
500 |
|
4 |
820 |
20 |
6500 |
4 |
400 |
|
5 |
720 |
20 |
6500 |
4 |
320 |
|
6 |
630 |
20 |
6500 |
2 |
300 |
|
7 |
530 |
14 |
6500 |
2 |
160 |
|
8 |
426 |
14 |
6500 |
2 |
130 |
|
9 |
325 |
14 |
6500 |
2 |
84 |
|
10 |
219 |
12 |
6500 |
2 |
65 |
Shean (Cangzhou) Corp Ltd registed in 2011, production line started in 1994. Has technician 10 persons, workers 50 persons, sale clerk 12 persons. For years, Shean helps heavy industrial enterprises gain huge profit domestic and abroad. Shean started foreign business since 2008 as while as good domestic sales. In 2014, Shean will creat another workshop as showroom of various machines running and head office will move to Cangzhou City with 900 square meters.
Our main scope for making and sells are: Induction pipe bending machine, Elbow forming machine, Tee machine, Hydraulic press, Pipe fittings, elbows, tee. "good products and complete after sale service " is our core principle.
Product covers all over the world, like USA, England, Russia, Turkey, India, Poland etc.
Welcome you visit Shean (Cangzhou) Corp Ltd.
