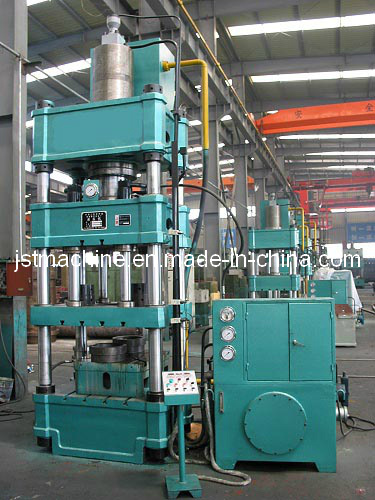

4-Column Double-Action Hydraulic Press Machine(YQ27 series)
Application:
The series is Double-action hydraulic press mainly used for forming metal sheet like drawing and bending, etc., and also can be available for general purposes.
The press with buffer system can carry out blanking process, so it is well appreciated by the industries like automobile, motorcycle, household appliances and metal-ware.
The Double-action press has four-column type and frame type with capacities from 63 to 3000 ton.
Adopt with PLC.convinent moving working Table for mould easy change.

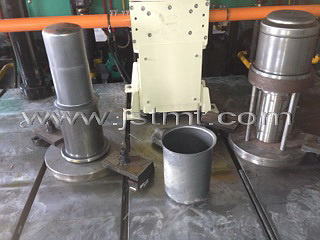

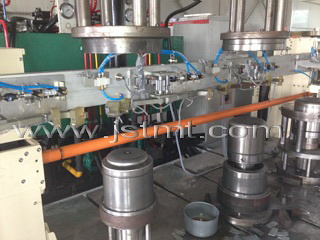

Sample for Auto Oil Filters
Parameters | Unit | YQ28 -100/140 |
Nominal Force | KN | 1400 |
Max Pressure of liquid | MPA | 25 |
Max Drawing Force | KN | 1000 |
Blank Holder Pressure | KN | 2x200 |
Ejection Force | KN | 190 |
Central Hole size of Blank-holders slide | mm | 330 |
Max operating Height of drawing slide | mm | 1100 |
Operating operating Height of Blank-Holder slide | mm | 550 |
Max Stroke of Drawing Slide | mm | 600 |
Max Stroke of blank-holder slide | mm | 300 |
Ejection cylinder stroke | mm | 200 |
Speed of Drawing slide | Descent | mm/s | 120 |
Pressing | mm/s | 10-14 |
Return | mm/s~ | 120 |
Size of drawing slide | L-R | mm | 720 |
F-B | mm | 620 |
Size of Blank-holder Slide | L-R | mm | 720 |
F-B | mm | 620 |
Effective table Size | L-R | mm | 720 |
B-F | mm | 620 |
Motor Power | KW | 7.5 |
