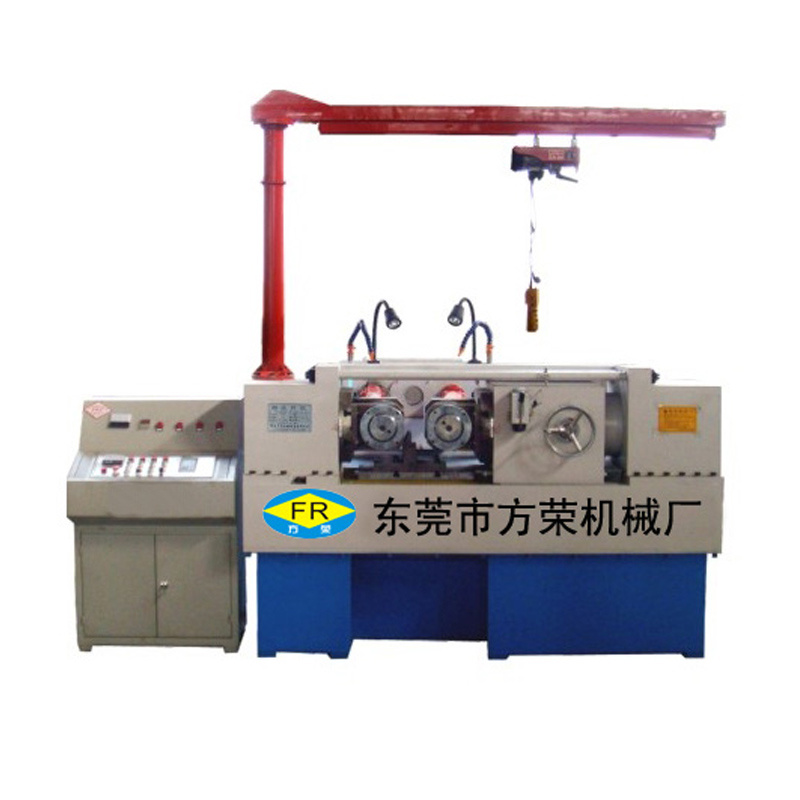

FR100*100 two-roller hydraulic threading rolling machine for metal (steel, aluminum, copper, brass, stainless steel, SS) bar or rebar
Parameters:
Model: FR100*100 thread rolling machine
Rolling the maximum diameter: ¢ 100MM
Rolling minimum diameter: ¢ 10MM
Rolling pitch range: 0.5-6MM
Rolling 50-120MM range: Fixed-length
Rolling unlimited range: Fixed-length rolling ¢ 10 - ¢ 20
¢ 170 * 220MM Wheel diameter
Wheel diameter: ¢ 75MM
Wheel thickness: 50-120MM
Roller chain slot: 12 * 6MM
Maximum distance: 250MM
Minimum distance: 145MM
Maximum rolling pressure: 300kn
Fu moving wheel motor power: 15HP
Motor power: 7.5HP hydraulic system
Cooling Motor: 1/4HP (0.18KW)
Roller obliquity: Plus or minus 4 degrees
Machine size: 1950 * 1800 * 1600
Machine weight: 3200
Advantage
1, multi forming machine
2, Taiwan column injection pump
3, Gimbal imported material
4, Japanese bearing
5, low noise
Axis rolling machine
Use for metal pipe external thread rolling
Dual-use for rolling through and fixed
Skate with hydraulic feed drive, accurate positioning;
Suitable for processing small pitch and long large parts;
With square guiding line design, guiding line grinding after heat treatment, to strengthen the machinery moving smoothly.
Features:
1, Specialized for metal tubes designing, use triangle support, it can guarantee the work pieces real roundness when by rolling.
2, Fixed Roll/ Pass two applied.
3, Adopt Taiwanese column injection pump and Hydraulic system accessories, electrical. Asphalt can be used long and no heating without cooling system.
4, Use the imported Gimbals, lubrication system used the electric pump, change manual lubricating pump, use the Japanese bearing.
5, Lower noise and durable.
6, Automatic feeding device is optional.
7, rolling shape: Rolling thread, textured, ruled, rolling light, cross knurling, roll bars, rolling groove, and roll-off
Quality Process Certifications: ISO 9000-2001
Dong Guan Fang Rong Machinery Factory, founded in 2000, is a professional manufacturer that integrates development, production and sale. Fang Rong is special in production thread processing equipment and precision cold drawing machines. In 2005, Fang Rong factory passed the ISO9000: 2001 quality system certification, and received a number of patents. Now, Fang Rong is developing and selling various machines, such as
1) Thread processing equipment:
A, thread rolling machines (rolling machines)
B, threading machines (air pressure, hydraulic)
C, thin tube rolling machines (lamp rolling machines)
D. The whole tooth machines
E. Tapping machines of six-axis
2) Precision cold-drawing equipment:
A, drawing machines,
B, straightening machines,
C. Pointing machines
Over the years, our goal has been to create professional and classic equipment, first-class products and best service to achieve product specialization, service professional and team specialization. After through Fang Rong people's unremitting efforts, our products are very popular at home and abroad. The prime quality and the best service are confirmed and recognized by customers in China and abroad.
