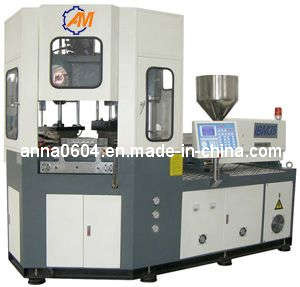

AMAN Machinery Co., Ltd. Positively absorbs advanced technique domestic and abroad. With the spirit of innovation, according to the domestic business condition, it developed out AM Inject-blow Machine series, which is a kind of three station -one step hollow molding machine. It can produce bottles from 3ml to 600ml. Therefore it is widely applied in many packing business, such as Pharmaceutics, food, cosmestics, gift and some daily products, etc. Till now we already have our Inject blow molding machinery in India, Nigeria, Vietnam, Turky, Italy, Egypt, Nicaragua (south America), South Africa and other districts and nations, with great honor.
AMAN Machinery Co., Ltd conceives two things as basic principals, that is Human resource and technology-orientation. With more than a decade of experience in Inject-blow molding machine designing and manufacturing as well as communicating with customers. It is very confident to offer advanced and satisfying machine to customers.
| No | Item | Unit | Data | No | Item | Unit | Data | | 1 | Dia of screw | Mm | 40 | 13 | Die-heating power | Kw | automation | | 2 | Max. the retical capacity | Cm 3 | 220 | 14 | Pressure of hydraulic system | Mpa | 14 | | 3 | Total power for cylinder-heating | Kw | 6.5 | 15 | Max. working pressure of comp. air | Mpa | 1.2 | | 4 | Clamping force of injection mold | Qty | 3 | 16 | Discharge rate of compressed air | M 3 /min | >0.8m 3 /min | | 5 | Clamping force of injection mold | Kn | 350 | 17 | Consumption of cooling water | M 3 /h | 3 | | 6 | Opening stroke | Mm | 120 | 18 | Dimension of machine(L×W×H) | Mm | 3100*1100*2200 | | 7 | Clamping force of blow mold | Kn | 30 | 19 | Machine weight | T | approximately 3.0 | | 8 | Opening stroke of blow mold | mm | 120 | 20 | Range of formability products | L | 0.003-0.6 | | 9 | Idle time | S | 4 | 21 | Height of formability products | Mm | ≤175mm | | 10 | Max. plate size of die(L*W) | Mm | 300*200 | 22 | Dia of formability products | Mm | ≤100mm | | 11 | Min. die thickness | Mm | 180 | 23 | Conveyer belt Motor power | Kw | 0.1 | | 12 | Motor power | Kw | 15 | 24 | Total power | kw | 25 | | | Cavity number of one mold corresponding to products volume.(for references) | | | | Product volume(ml) | 8 | 15 | 20 | 40 | 60 | 80 | 100 | | | | Cavity quantity | 8 | 6 | 6 | 5 | 5 | 4 | 3 |
|
Aman Machinery Co., Ltd., was reformed from the former Wuxi Machine Tools Group Machinery Factory. It was established in 1954, and started the development of bag making machine &injection molding machine&injection blow molding machine in 1991.
Along with the development of the enterprise in the past 16years, Aman Machinery has become one of the backbones in packing machinery industry in China. China Packing Association has conferred us titles of "China Packing Products Appointed Producer"; And "Excellent Quality Product in China Packing Industry". Aman Machinery is standing of the leading position for bag making machinery &injection molding machine &injection blow molding machine in China. For many years hard work, we have successfully exploited many special bag making machines, slitting equipment and complete set of PVC Sleeve Labeling Equipment.
AMAN Machinery persists in faithful and honest as her root, persists in strict management and technology innovation, and careful manufacture and continuous improvement. Make sure to produce products welcomed by the market and to provide the wholehearted and confidence service to all customers.
Aman Machinery sticks on one field of work to practice the specialization production with multi-channel investment, gradually tends herself towards Group. All these factories provide services in postal service at home and abroad (Air cushion film and air bags), in automobile industry and machinery industry.
