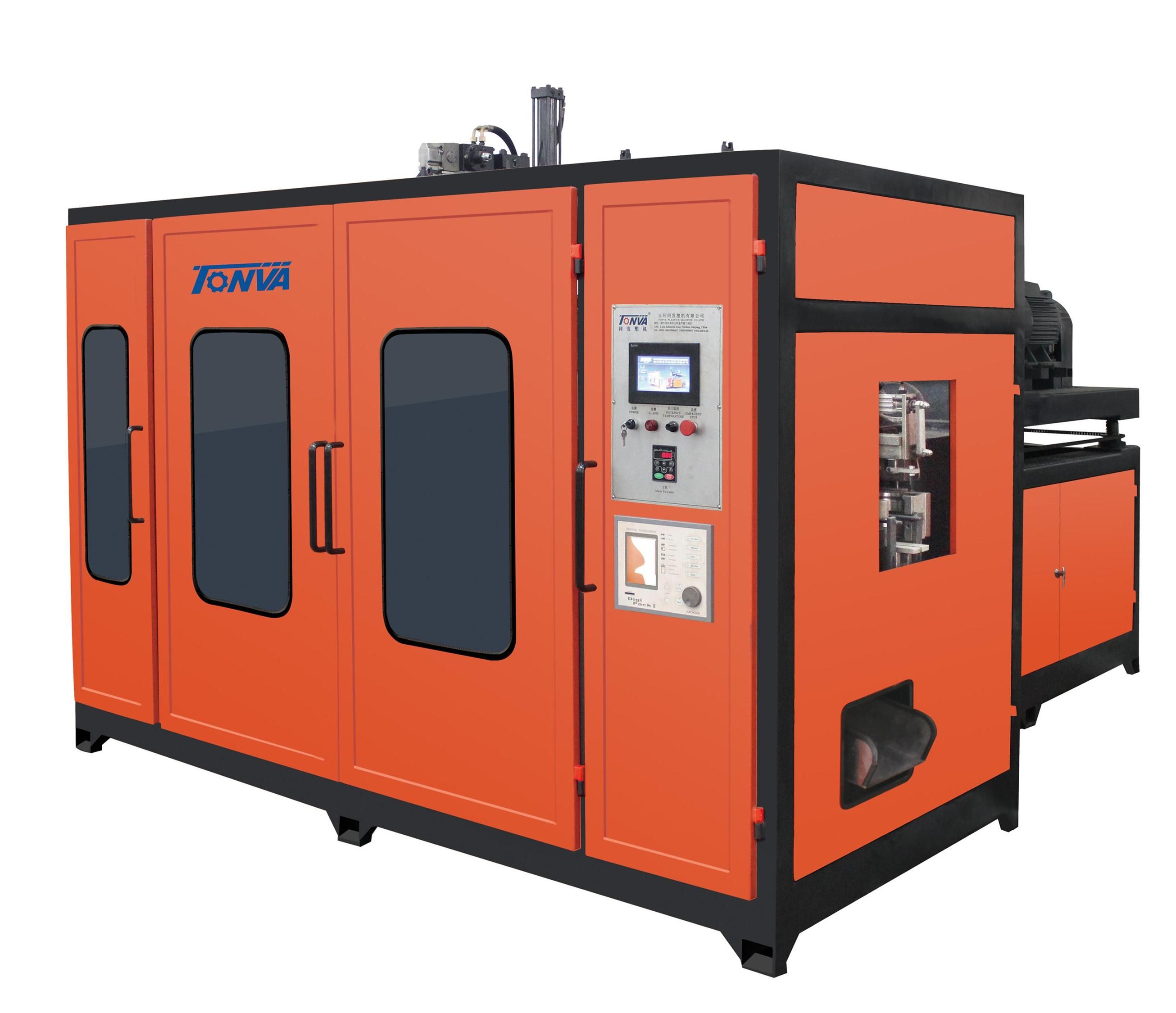

HIGH SPEED SERIES TVHD-500ML-6
Specifications:
22-year manufacturer of blow molding machine
Famous brand component parts
CE; ISO;SGS
1-year warranty
Customized
Basic specification:
Ø Double Station
Ø 90mm screw / 30kw motor /11KW oil pump power
Ø HDPE etc material
Ø Automatic Trimming: Neck/Bottom/Handle/Sides
Working condition:
Ø Power supply: 380VAC/50Hz
(depending on client's country)
Ø Water Cooling: 20ºC
Ø Air source: 0.6Mpa,0.6m³/min
Technical characteristic:
ØHigh speed machine is TONVA innovative model.It adopts pure hydraulic system ,joint clamping system,running fully automatic.
Ø Suitable for bottles under 2000ml requires high output.
Ø Suitable raw material :PE/PP.
Ø Application:Food,Medicine,Chemical,cosmetic and oil etc.
Technical Parameters:
Category | Item | Unit | TVHD-500ML-6 |
Basic Specification | Raw material | / | HDPE etc. |
Product weight max. | g | 40 |
Number of head | Cavity | 6 |
Dimension | m | 4.3*2.8*2.1 |
Total Weight | kg | 10000 |
Extrusion system | Diameter of screw | mm | 90 |
Screw L/D ratio | L/D | 28:1 |
Plasticizing capacity | kg/h | 125 |
Number of heating zones | Pcs | 8 |
Extruder heating power | kW | 24 |
Extruder drive power | kW | 30 |
Die head | Number of heating zones | pcs | 7 |
Heating power | kW | 9.5 |
Center distance | mm | 70 |
Clamping system | Clamping range | mm | 200 |
Sliding range | mm | 550 |
Clamping force | kN | 80 |
Power Consumption | Air pressure | Mpa | 0.6 |
Air consumption | m3/min | 0.6 |
Cooling water pressure | Mpa | 0.3 |
Cooling water consumption | m3/h | 1 |
Oil pump power | kW | 11 |
Oil pump capality | ml/r | 59 |
Total Power | kW | 74.5 |
Average power Consumption | kW | 31.3 |
Main Features:
(1)Screw: Specially designed based on material's trait,high quality nitriding steel 38CrMoAlA,with nitriding surface HV≥800,brittleness≤2.
(2) Barrel: High quality nitriding steel 38CrMoAlA,with nitriding surface HV≥900,brittleness≤2.
(3) Drive mode: inverter and hard gear surface decelerator.
(4) Temperature controlling: PID&PWM temperature control model.
(5) Mode of cooling: adopt water cooler for the processing zone, fan cooler for the rest zones.
(6) Die head system: The melting plastic out of the extrusion system is divided through the core parts of die head, distributed by the die head channel to become several peach shaped sections.
(7) Clamping system: Joint-type clamping ,clamping by hydraulic cylinders.
(8) PLC and HMI: Adopt PLC to control the action program of the whole machine; adopt HMI for communication, parameter setting, modification and picture display;
(9) Extrusion motor: with the inverter controlling and alloy hard gear surface decelerator driving, saving power, lower noise, balanced and stable screw rotation.
Company information:
TONVA Plastics Machine Co.,Ltd.was established in 1993.The company is one of the largest manufactures of Extrusion Blow Molding Machines, PET Stretch blow molding machines and kinds molds in China.The Company has a group of experienced engineers who contribute more than twenty
years in Blow Molding Machine industry and a team who good at after-sale service.
Our Service:
1. Reply the email and take action in 24 hours;
2. 100% Quality inspection before the shipment;
3. Can trainning clients operator for free in seller`s factory
4. Engineer overseas is avilable
5. Blowing mould and injection mould made orginal
6. Auxiliary machines for complate line.
7.Custimized design as requirements.
