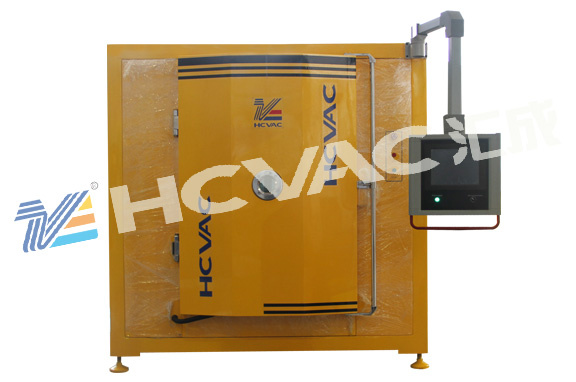

Jewelry gold ion plating machine/Jewelry PVD plating machine/Jewelry vacuum coater
is used for steel jewelry or alloys jewelry to get IPG.IPS,IPR IPB, rose gold Platinum coatings etc. It's a environment protective equipment, no waste gas and no waste water, The main feature of IPG pvd coating machine is low cost , and adhesion of coating is stronger than tradition electroplating.
Usually for jewelry plating is using MF sputtering coating machine. Middle frequency sputtering vacuum coating machine mainly integrate the technology of MF magnetron sputtering and electric arc ion evaporation coating, combining the ion source and the pulse bias voltage. It is fully automatic control when coating films.
Applied industry: Ipg Jewelry Vacuum Coating Machine can be used to coat metal film, titanium nitride, titanium carbide, and zirconium nitride, chromium nitride and titanium, nickel, chromium, copper, and other compounds film, multi-layer super-hard film, nitrogen-doped titanium film and the alloy film, and in a very short time to complete all the machining process, it is a highly efficient multi-functional coating equipment.
Ipg Jewelry Vacuum Coating Machine is extensively used in the fields of ultra-hard coating about the tools and mould, decorative coating about car wheels, ceramics, golf, watches making, hotel product, sanitary ware, luminaires, optical frame, hardware, etc.
Please feel free to contact us for further information!
Contact: Lillian Yang
Mobile:0086-13825720037
Mode
Dimension | JTL-900 | JTL-1100 | JTL-1300 | JTL-1600 |
| Φ9001000mm | Φ11001000mm | Φ13001200 mm | Φ16001200 mm |
Coating mode and main confirguration | 3 electric-arc+2 pairs of plane rectangular cathode | 6 electric-arc+2 pairs of cylindrical cathode | 5 electric-arc+4 pairs of cylindrical cathode | 6 electric-arc+8 pairs of cylindrical cathode |
| Film Types | Metal films,Dielectric films,Compound films,Reaction films,Muti-layer function films |
| Power source | Electric arc power supply,DC magnetron power supply,MF magnetron power supply.Pulse bias voltage power supply.ion source power supply. |
| Process gas control | Quality flowmeter + electromagnetism ceramic valve |
| Vacuum chamber structure | Vertical single(side) door, pump system postposition, double water-cooling |
| Vacuum system | Molecule pump(diffusion pump)+Roots pump +Mechanical pump (8.0*10 -4 Pa) |
| Pumping speed | Pumping time less than 15 minutes ,from atmospheric pressure to 310 -3 Pa |
| Workpiece motion mode | Public rotation Frequency control: 0-20 rotation per minute |
| Measure mode | Number display composite vacuum gauge: from atmosphere to 1.0*10 -5 Pa |
| Control mode | Full automation control system PC+PLC/PC+HMI |
| Remark | We can design the dimension of the equipment according to customers special technique requirement. |
