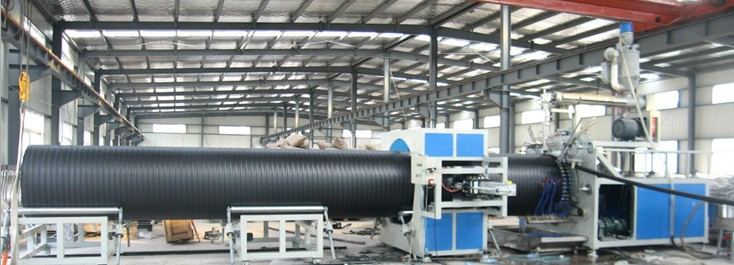

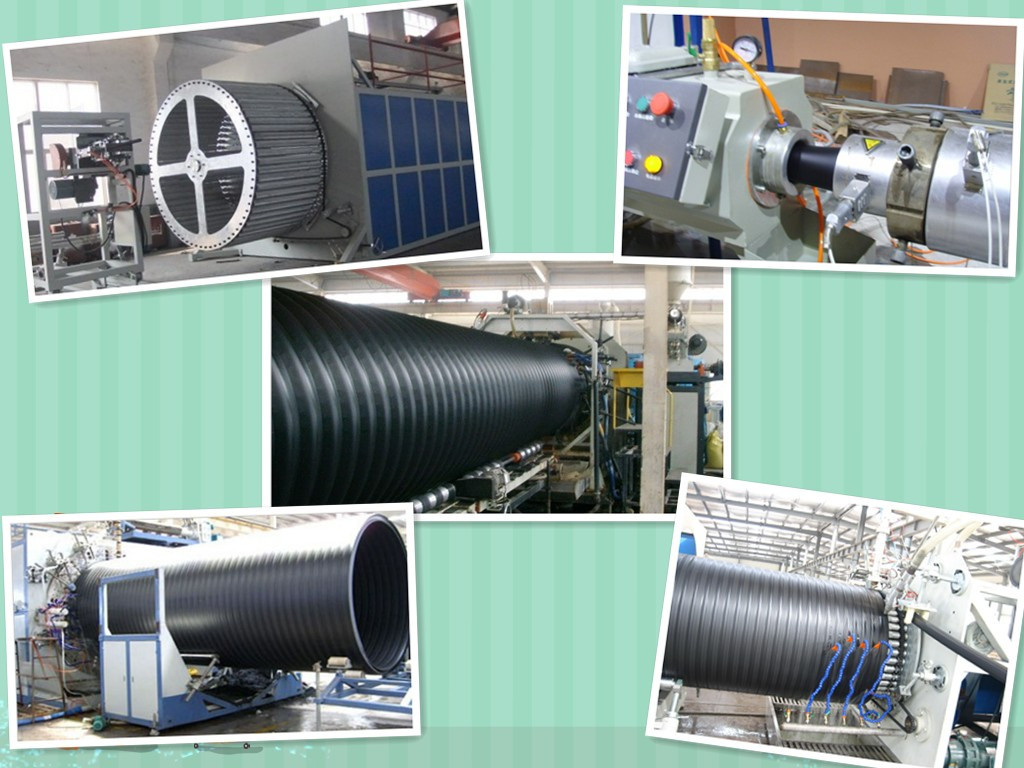

Large Diameter Hollow-Wall Twisted Pipe Extrusion Line
Brief introduction of the production lineAt present, the sewage and drainage system in China still use the cement pipe. However, due to its instable chemical property and loose connection, it has become the principle cause for environment pollution.
On the other hand, the cast iron pipes can't be used any more for the disadvantages, such as the inconvenient construction and expensive cost. In recent years, the plastic pipes become successful substitute to the cement pipes. Especially the newly developed spiral large diameter plastic pipes have been drawn great attention and have become the substitute products for cement pipes and cast iron pipes. All these shows that the twisted large diameter plastic pipes have a great market potentiality.
Advantages:1. Extrusion machine adopts special design efficient single screw extruder, screw, barrel structure unique, large output, less energy consumption and excellent plasticizing and the mould structure is reasonable, the double machine joint for rotational molding, clever and unique design.
2. Adopt advanced PLC computer control system, easy operation, stable and reliable action.
3. Adopts double cascade reduced pressure screw, with a special promotion of mixing plasticizing components, high torque, high temperature control precision.
4. Adopted complex nose, joint of two feeding, screw rotational molding, high efficiency composite technology, ensure product quality.
|
Pipe range(mm) |
Extruder |
Total installation power(kw |
Max. output(kg/h) |
Diameter
L*W*H(m) |
|
|
Model |
Motor power(kw) |
|
|
|
|
φ 200-φ 800 |
SJ65*30
SJ45*30 |
45
22 |
150 |
200 |
15*20*2.5 |
|
φ 400-φ 1200 |
SJ60*33
SJ45*33 |
75
30 |
210 |
400 |
15*22*2.5 |
|
φ 800-φ 1800 |
SJ75*33
SJ45*33 |
90
30 |
320 |
500 |
21*25*3 |
|
φ 1600-φ 2600 |
SJ90*33
SJ60*33 |
160
75 |
400 |
700 |
30*25*3.5 |
|
φ 2000-φ 3200 |
SJ120*33
SJ75*33 |
250
90 |
540 |
1100 |
32*28*4 |
Ningbo Mengkwa Machinery Co., Ltd. is located in Ningbo city, Zhejiang Province in China. It is only 10km from Ningbo Airport, and it is around 300km far from Shanghai.
We have more than 16 years experience in producing and export plastic machinery. With advanced technology and exprience, we produce plastic extrusion line: Pipe extrusion line, profile extrusion line, sheet & board extrusion line, foam extrusion line, soft PVC extrusion line, plastic pelletizing and recycle line, rubber extruder and vulcanization production line, and etc.
We will always strive to keep forging ahead and making innovations. Meanwhile, we're willing to establish good relationships with both domestic and international customers to create new heights in the plastic machinery industry.
Our aim: Honesty, serious, excellence, devoting.
