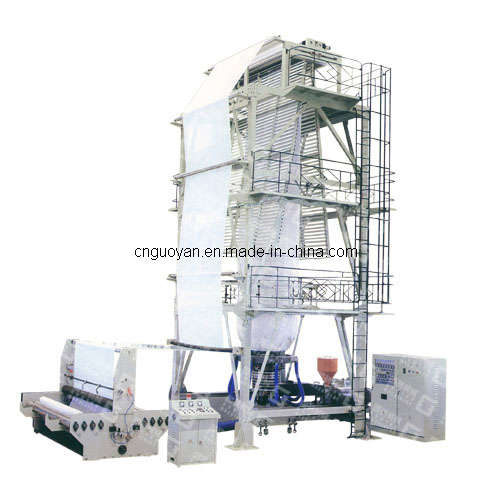

Monolayer Agricultural Film Blowing Machine (wide film)
1. Usage:This monolayer agricultural film blowing machine unit is mainly suitable for processing raw material such as LDPE, LLDPE, EVA, and mixture of LDPE and LLDPE. It's widely used in producing greenhouse-film, mulching film and package of foodstuff, clothes, daily-use items and industrial products.
2. Characteristics:1) The extruder adopts new-type undulation screw, mixing mould, and powerful transporting bushings.
2) The cooling system adopts air blower with low air pressure and large air quantity. The traction system is stable and reliable. The machine is equipped with cutting device. And it can be equipped with inner-cooling system as per the customer's requirements.
3) The plastic film produced by this machine has characteristics of low cost, high strength, uniform thickness, excellent transparency, and good plasticity.
3.Technical Parameters
|
Model |
GY-LD3200 |
GY-LD3200 |
GY-LD2800-1 |
GY-3300 |
CY-3500 |
GY_4000-1 |
|
Extruder |
SJ-120/25 |
SJ-120/30 |
SJ150/25
SJ135/30 |
SJ-150/30 |
SJ-180/30 |
SJ-200/30 |
|
Screw diameter (mm) |
¢120 |
¢120 |
¢150/¢135 |
¢150/¢180 |
¢180 |
¢200 |
|
Capacity (kg/h) |
300 |
350 |
450/400 |
550 |
700 |
900 |
|
Screw ratio (L/D) |
25:1/30:1 |
|
Die head diameter (mm) |
650 |
800-1000 |
1000-1200 |
1250-1400 |
1500-1600 |
1600-1800 |
|
Air ring external diameter (mm) |
1400 |
2500 |
3200 |
3400 |
3400 |
3600 |
|
Traction height (mm) |
10000 |
12700 |
19000 |
21000 |
21600 |
22000 |
|
Traction and rewinding speed (m/min) |
3-30 |
|
Traction device |
Tower structure |
|
Traction roll lengths (mm) |
3200 |
3200 |
2800 |
3200 |
3500 |
4000 |
|
Rewinding mode |
Double type center rewinding or friction rewinding |
|
General power (KW) |
195 |
254 |
320 |
400 |
500 |
550 |
|
Overall dimensions (L×W×G) (m) |
12×5×11 |
13×5×13 |
14×7×19 |
14×7×21.4 |
15×7×22 |
16×8×23 |
Guangzhou Guoyan Machinery Making Co., Ltd. is a high-tech enterprise, which comprehensively integrates research and development, manufacture, sale and service. Located in the Jishan Industrial Estate in the south of Guangzhou Science City of Hi-tech Industries, and it only several minutes drive away from the Pazhou International Exhibition Center of Canton Fair.
The Company holds Guoyan Plastic Machinery Manufactory, Guoyan Food Machinery Manufactory, Guoyan Packaging Machinery Manufactory and eight joint venture enterprises as well as sales branches, associating closely with Tsinghua University, South China Technical University and other dozens of national academies of well-known scientific research institutes, developing dozens of patent technologies owned.
The Company has been acknowledged by ISO9001 international quality management system, whose products as plastic machinery, food machinery and packaging machinery sell well in 31 provinces and autonomous regions in China as well as dozens of countries and regions all over the world. Guoyan has become an internationally renowned brand. The Company has been appraised as "Contract Observation and Credit Recognition Enterprise" and "Leading Company of Safe Production" by the Guangzhou Municipal Government for many series years.
Company mission: Creating in China, building hundreds years Guoyan!
Business philosophy: People-oriented, integrity-based, innovation as the soul!
