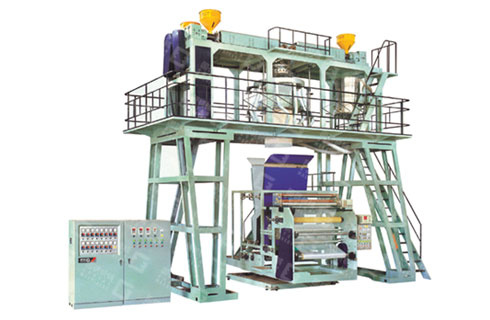

Multi-Layer Co-extrusion Water Cooling Polypropylene Film Blowing Machine for CPPUse and Characteristic:This CPP film blowing machine using the bottom blower and overflow water-cooling forms, has a unique extrusion system with high plasticity and high ratio of length to diameter, fitted with reasonable and high precision mould. So the products are of high transparency, good barrier property, and proper heat sealing etc., It is an ideal equipment for producing high-grade packaging film.
Type
|
3-Layer JX-1400
|
3-Layer JX-1200
|
Diameter of the bolt (mm)
|
Φ 65 X3
|
Φ 55 X3
|
Length diameter ratio of the bolt(L/D)
|
32:1
|
32:1
|
Output (kg/h)
|
125
|
80
|
Product thickness (mm)
|
0.02-0.08
|
0.02-0.08
|
Semiperimeter (mm)
|
1200
|
1000
|
Main motor power (kw)
|
15 X3
|
11 X3
|
Heating power ( kw )
|
50
|
43
|
Winding mode
|
back to back winding
|
back to back winding
|
Length of clamp roller (mm)
|
1400
|
1200
|
External dimension (m)
|
7.4 X4.5X7.2
|
7.4 X4.5X6.5
|
