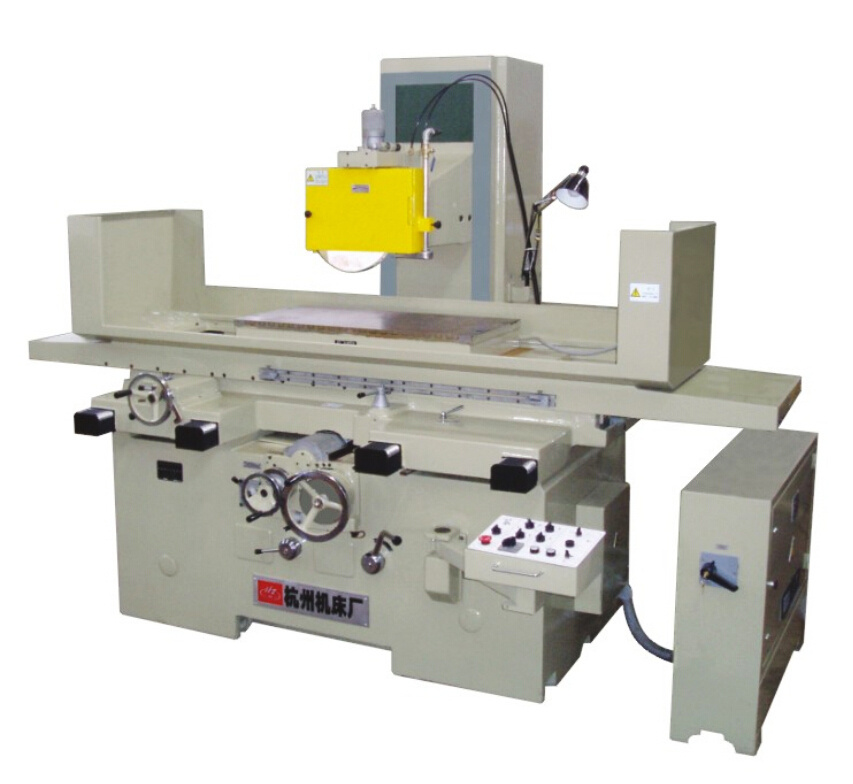

The machine workbench system wide and short form, mainly used for grinding short and wide workpiece surface, especially suitable for processing all kinds of mold, can also be grinding groove and flange side for all mechanical processing workshop, machine repair workshop and workshop tools.
Machine tool has the following characteristics:
1.smooth movement, low noise, low temperature rise.
2.cross slide rail with guide rail roller, transverse feed by variable frequency speed control of AC motor, fine of intermittent and continuous feed.
3.grinding head spindle bearings with high precision rolling bearing, good rigidity, high precision turning. With high grinding efficiency, high machining surface finish can be obtained at the same time.
4.head vertical feed, automatic feed and manual feed feed, high sensitivity, convenient operation.
Accessories(free) |
electromagnetic chuck | 1 piece |
grinding wheel dresser(diamond drill bit not included) | 1 set |
grinding wheel | 2 set |
balanced core shaft | 1 set |
grinding wheel balance mandrel | 1 set |
iron gasket for machine tool | 7 set |
Special Accessories(not free) |
diamond grinding wheel cutter | 1 piece |
Main Specification | M7150H×6 | M7150H×10 |
working stand | working stand area(width×length) | mm | 500×630 | 500×1000 |
max grinding size(width×length×tall) | mm | 500×630×400 | 500×1000×500 |
Longitudinal travel | mm | 780 | 1150 |
operating rate | m/min | 3-20 |
motor-driven cross feed(continuous) | mm/min | 80-500 |
chopper | mm | 3-20 |
T-groove working surface (amount×width) | mm | 3×18 |
Load of Worktable | kg | 320 | 950 |
vertical feed(hand movement per revolution) | mm | 1 |
cross feed(hand movement per revolution) | mm | 2 |
grinding head | distance from grinding wheel spindle to working stand | mm | 580 | 700 |
wheel shindle speed | r/min | 1440 | 1500 |
vertical feed(hand movement per graduation) | mm | 0.005 |
grinding wheel size(outer diameter×width×inner diameter) | mm | Φ350×40×Φ127 |
motor power | total motor power | kw | 10.6 | 11.373 |
grinding motor power | kw | 7.5 |
working accuracy | Machining surface parallel to the base face | mm | 300;0.005 |
surface roughness | um | Ra0.63 |
machine weight | net weight | kg | 5200 | 6000 |
gross weight | kg | 6000 | 7000 |
dimensions(length*width*height) | mm | 2580×1940×2095 | 3285×1936×2275 |
Packing size (length*width*height) | mm | 2800×2270×2480 | 3450×2480×2750 |
