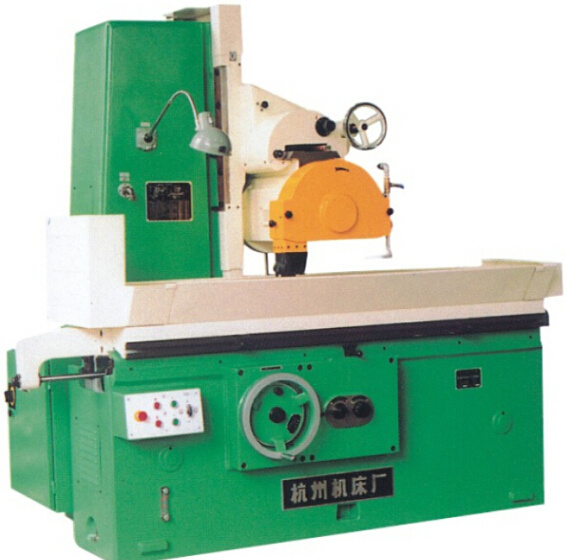

This grinder machine is a modified version of M7130, with strong grinding characteristics, applicable to all kinds of mechanical processing, suitable for mass production of auto parts, fixture, a magnetic steel, mold and other industry.
Grinder has the following characteristics:
1.hydraulic automatic feed and manual feed are applicable, convenient operation.
2.manual operation is allowed for vertical feed,set-in-motor-driven grinding wheel.
3.automatic lubrication system.
4.using 11KW high-power grinding motors, the grinding efficiency is 3-5 times higher than that the M7130H.
| Accessories(free) |
| electromagnetic chuck | 1 piece |
| grinding wheel balance mandrel | 1 set |
| grinding wheel dresser(diamond drill bit not included) | 1 set |
| demagnetizer(TC-1) | 1 piece |
| grinding wheel | 2 set |
| Special Accessories(not free) |
| grinding wheel balance mandrel | 1 set |
| precision sine flat plier(ZPQ150) | 1 piece |
| diamond grinding wheel cutter | 1 piece |
| iron gasket for machine tool | 5 sets |
| Main Specification |
| working stand | working stand area(width×length) | mm | 300×1000 |
| max grinding size(width×length×tall) | mm | 300×1000×400 |
| Longitudinal travel | mm | 1100 |
| operating rate | m/min | 3-27 |
| T-groove working surface (amount×width) | mm | 3×18 |
| Load of Worktable | kg | 468 |
| grinding head | distance from grinding wheel spindle to working stand | mm | 600 |
| vertical feed (manual per graduation) | mm | 0.01 |
| vertical feed (manual per revolution) | mm | 1.29 |
| grinding head max travel(cross) | mm | 350 |
| grinding head max travel(vertical) | mm | 450 |
| wheel shindle speed | r/min | 1440.00 |
| grinding wheel size(outer diameter×width×inner diameter) | mm | Φ400×40×Φ127 |
| motor power | total motor power | kw | 14.20 |
| kw | 3.00 |
| kw | 0.20 |
| grinding motor power | kw | 11.00 |
| working accuracy | Machining surface parallel to the base face | mm | 300;0.005 |
| surface roughness | um | Ra0.63 |
| machine weight | net weight | kg | 3500.00 |
| gross weight | kg | 5000.00 |
| dimensions(length*width*height) | mm | 2295×1673×2235 |
| Packing size (length*width*height) | mm | 2800×1830×2680 |
