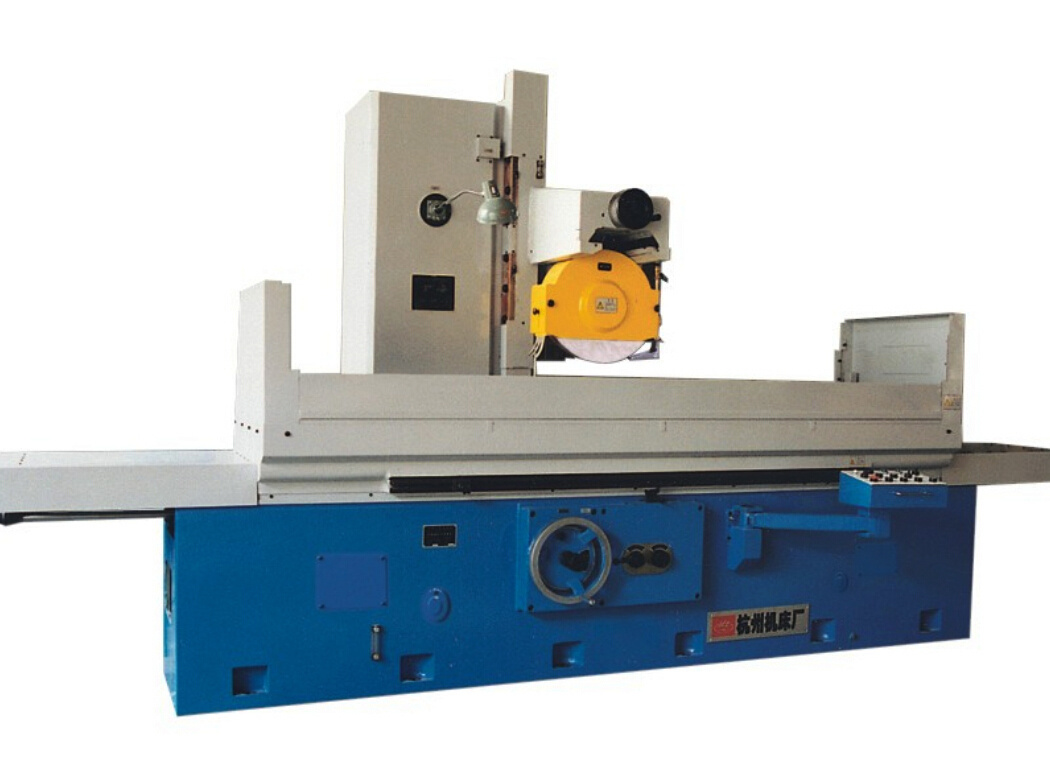

The surface grinder machine tool uses the periphery of the grinding wheel to grind steel, cast iron and various plane parts, applicable to all kinds of mechanical processing workshop and repair workshop.
Machine tool has the following characteristics:
1.working stand is lengthened to 2 meters to 4 meters, especially for the processing of textile machinery, mould template, scissors needle plate etc.
2.manual operation is allowed for vertical feed,set-in-motor-driven grinding wheel.
3. wheelhead transverse feed mechanism, a hydraulic automatic feed and manual feed, the operation is convenient; the maximum horizontal stroke can reach 550 mm.
3.thermal deformation control device.
4.fast lifting mechanism for grinding head.
5. machine grinding head with sliding bearing, grinding head motor adopts 9 kW motor power, with high grinding efficiency, and get higher processing surface is bright and clean degree, suitable for large size table grinding tasks.
Free accessories:
Electromagnetic chuck: 1 Piece
Grinding wheel dresser(diamond drill bit not included) 1 set
grinding wheel 2 sets
Balaced core shaft 1 set
Grinding wheel balance mandrel 1 set
Iron gasket for machine tool
Special Accessories(not free)
Precision sine flat plier(ZPQ150) 1piece
Diamond grinding wheel cutter 1piece
Main Specification | HZ-033/2 | HZ-033/3 | HZ-033/4 |
working stand | working stand area(width×length) | mm | 320×2000 | 320×2500 | 320×4000 |
max grinding size(width×length×tall) | mm | 320×2000×400 | 320×2500×400 | 320×4000×400 |
Longitudinal travel | mm | 2050 | 2550 | 4300 |
operating rate | m/min | 3-17 | 3-22 |
T-groove working surface (amount×width) | mm | 3×18 |
Load of Worktable | kg | 798 | 1240 | 2000 |
grinding head | distance from grinding wheel spindle to working stand | mm | 575 | 600 |
grinding head max travel(cross) | mm | 350 |
grinding head max travel(vertical) | mm | 400 | 775 |
vertical feed(hand movement per graduation) | mm | 0.01 |
vertical feed(hand movement per revolution) | mm | 1.29 |
motor-driven cross feed(continuous) | m/min | 0.5-3 |
chopper | mm | 3-30mm/ |
wheel shindle speed | r/min | 1440 |
grinding wheel size(outer diameter×width×inner diameter) | mm | Φ350×40×Φ127 | Φ400×63×Φ127 |
motor power | total motor power | kw | 7.62 | 16.7 |
grinding motor power | kw | 4.5 | 11 |
working accuracy | Machining surface parallel to the base face | mm | 300;0.005 |
surface roughness | um | Ra0.63 |
machine weight | net weight | kg | 6500 | 7000 | 10000 |
gross weight | kg | 7500 | 8000 |
|
dimensions(length*width*height) | mm | 4850×1673×2035 | 4205×1693×2035 | 14830×1775×2035 |
Packing size (length*width*height) | mm | 5200×1750×2400 | 5130×1750×2400 |
|
