1. PE pipe extrusion line mainly produces agricultural water supply & drainage pipes, building supply & drainage pipes, cables, etc.
2. This production line can aslo produce all kind of PP/PPR/PERT/ABS/PEX and silicone core pipes with different moulds.
3. SJW-20/25 single-screw co-extruder is applicable for co-extrusion identification line.

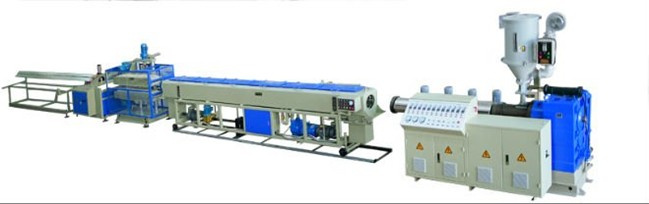

Consist Of PE/PP/PPR pipe production line:
No. Description Model
1 Single screw extruder SJW
2 Moulds SQ
3 Vacuum shaping tanking DY
4 Haul off machine QY
5 Cutting machine QG
6 Stacker FG
| Model | GF-63 | GF-110 | GF-400 | GF-630 | GF-800 |
| Productive pipe scope(mm) | φ20-φ63 | φ63-φ160 | φ200-φ400 | φ400-φ630 | φ630-φ800 |
| Output(mm) | 80-120 | 120-280 | 300-500 | 450-700 | 600-900 |
| Traction speed(m/min) | 1-16/0.6-6 | 0.6-6/0.4-4 | 0.4-4/0.2-2 | 0.2-1/0.2-1 | 0.1-0.5/0.1-3 |
| Total power(kw) | 85 | 186 | 300 | 400 | 480 |
| Production linelength(m) | 25 | 40 | 50 | 60 | 72 |
|
|
|
|
|
|
|
|
|
| Model | SJW35/25 | SJW45/25 | SJW50/25 | SJW75/25 | SJW90/25 | SJW105/25 | JSW120/25 | SJW150/25 |
| Screw diameter | 35 | 45 | 50 | 75 | 90 | 105 | 120 | 150 |
| L/D | 25:01:00 | 25:01:00 | 25:01:00 | 25:01:00 | 25: 1 | 25: 1 | 25: 1 | 25: 1 |
| Transmission power(kw) | 5.5 | 11 | 15 | 45 | 55 | 75 | 90 | 132 |
| Center height | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 |
| Output | 12 | 30 | 40 | 120 | 140 | 200 | 240 | 350 |
| Model | SJW45/33 | SJW60/33 | SJW75/33 | SJW90/33 | SJW120/33 | SJW150/33 |
|
|
| Screw diameter | 45 | 60 | 75 | 90 | 120 | 150 |
|
|
| L/D | 33:01:00 | 33:01:00 | 33:01:00 | 33:01:00 | 33:01:00 | 33:01:00 |
|
|
| Transmission power(KW) | 37 | 75 | 110 | 160 | 280 | 400 |
|
|
| Center height | 1000 | 1000 | 1100 | 1100 | 1100/1300 | 1300 |
|
|
| Output(kg/h) | 150 | 300 | 450 | 600 | 900 | 1200 |
|
|
XINXING brand was founded in 1993 at zhoushan city, Zhejiang province, China for barrel and screws manufacture;
Shanghai XINXING was founded in 1999 at Shanghai City, China for complete extrusion machine manufacture for PVC/PE pipe and pelletizing line.
With more than 20 year's experience XINXING has the ability to design and produce different extrusion line for PVC/PE/PP/PET/PS/ABS...Different raw materials with different final products like the PIPE, PROFILE, BOARD, SHEET, PELLET and so on.
And XINXING has exported all the lines to more than 30 countrys in all over the worl.
The mainly market for XINXING is Middle East, Eest Euro, South Asian and South American.
With 20 year's working in the interner market, XINXING has got strong market feedback, and set up reliable agent relation in the above market.
XINXING has the ability, the experience and the willing to offer professional and strong support to all the customer.
