Pet Blowing Bottle Molds (For water bottle, CSD bottle, jar bottle)

Pet Blowing Bottle Molds (For water bottle, CSD bottle, jar bottle)
Price: US $ 220-10000/Piece
Trade Terms: FOB,CFR
Min Order: 1/Piece
Pay Type: L/C,T/T
Changshengda Machinery (Zhejiang) Co., Ltd., which is located in Huangyan Zhejiang -" the Town of Moulds" in China, is a professional manufacturer and exporter of plastic machinery, PP blow moulding machine, blow molding machinery, injection molding machine, plastic injection moulds and relative plastic products. It is an economic entity integrating development, manufacturing, trading and service. We exported our products, plastic machinery, PP blow moulding machine to many countries all over the world.

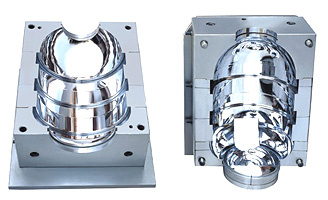

PET Blow Mold for Automatic Blow Molding Machine ( CSD-AB, AL,AXSeries)
Volume (ml) Mold Dimension (Without Cover Plate)(cm) 2316 Steel Weight/Cavity (kg) Domestic Magnesium-Aluminum Alloy Weight/Cavity  (kg) Imported Magnesium-Aluminum Alloy Weight/Cavity  (kg)
50ml 120×140×190 25 5 5
60-100ml 120×140×220 27 6 6
110-190ml 120×140×220 28 7 7
200-300ml 120×140×220 32 9.5 9.5
310-500ml 120×140×220 32 11 11
520-750ml 130×145×240 37 13 13
760-1000ml 130×145×280 43 15 15
1100-1500ml 140×145×345 58 20 20
1520-2000ml 220×190×350 120 41 41
2100-3000ml 245×190×350 130 45 45
3.1- 4.0 L 250×200×350 140 49 49
4.1 - 5 L 260×210×350 155 54 54
5.1 -7 L 260×220×350 160 56 56
8-10L 320×240×360 225 78 78
10.5-12L 350×260×390 284 100 100
12.5-15L 365×320×490 460 160 160
15.5-19L 390×390×570 700 242 242

PET Blow Mold for Semi Automatic Blow Molding Machine
Volume (ml) Mold Dimension (Without Cover Plate)(cm) 45# Steel Weight/Cavity (kg) 2316 Steel Weight/Cavity  (kg)  Magnesium-Aluminum Alloy Weight/Cavity  (kg)
50-250ml 120×140×150 20 20 7
260-500ml 120×140×220 32 32 11
520-750ml 130×145×240 37 37 13
760-1000ml 130×145×280 43 43 15
1100-1500ml 140×145×345 58 58 20
1520-2000ml 220×190×350 120 120 41
2100-3000ml 245×190×350 130 130 45
3.1- 4 L 250×200×350 140 140 49
4.1 - 5 L 260×210×350 155 155 54
5.1 - 7 L 260×220×350 160 160 56
8-10L 320×240×360 225 225 78
10.5-12L 350×260×390 284 284 100
12.5-15L 365×320×490 460 460 160
15.5-19L 390×390×570 700 700 242
Prod Model: Blow mould
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Mould Bottom: Beryllium-Copper Insert
Application: Commodity
Product Material: Steel
Changshengda Machinery (Zhejiang) Co. Ltd. (CSD) was established in 1992 with a registered capital of $5.2 million USD from Australian sole-ownership enterprises, and boasts a 72, 000 square meter factory zone. The company specializes in research and development in environmental protection, high-precision energy saving injection molding machines for medical and food industry, PET two stage automatic injection stretch blow molding machines, automatic extrusion blow molding machines and various types of plastic moulds and other hi-tech products. Its produce a wide range of goods such as food and beverages packing, plastic goods, pharmaceuticals packing, cleaning products, auto parts, toiletries, home appliances, construction materials, electronics, and so on. CSD's products achieved exceptional sales in South East Asia, the Americas, Eastern Europe, the Middle East, Europe and Africa. Currently the company is working in conjunction with ten of China's most famous brands. CSD's products have gained recognition both inside and outside China as a highly precise, energy-efficient and incredibly streamlined manufacturing company.

CSD boasts a standardized and streamlined production and operations system which has received ISO9001 quality authentication. The company has also been giving the following honorary titles: "Provincial Hi-tech Enterprise R&D Centre", "Zhejiang Province Hi-tech Enterprise", "Zhejiang patent demonstration enterprise", among others. CSD's business ethic primarily focuses on three aspects - one, acting in good faith at all times; Two, making science and technology a priority; And three, thriving on producing superior quality products. The company makes use of advanced design concepts, sophisticated processing equipment and incredibly precise manufacturing methods to meet the needs of high-end clients both inside and outside China.

CSD's products are continuously being innovated in a bib to ensure product quality and secure a reputable corporate image. The company also promotes the service commitment of one station service. The establishment of CSD after-sales centers all around the world not only demonstrates the company's dedication to thorough after-sales support, but also shows a commitment to providing excellent goods at reasonable prices to both new and existing clients.

CSD's employees are driven towards pluralism, standardization and the industrialized development of new technologies, and the company is committed to being an industry leader in plastic goods manufacturing.
