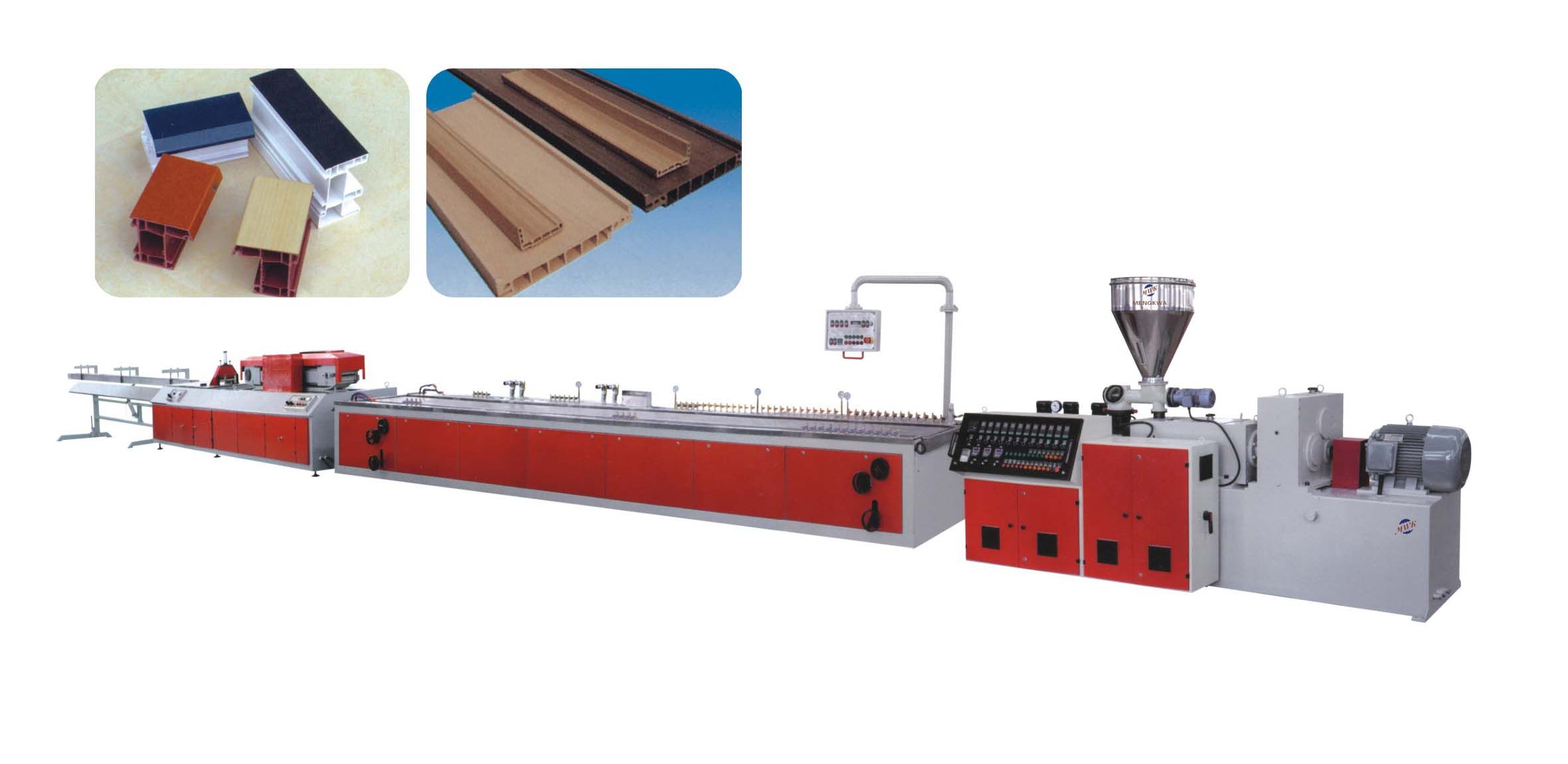

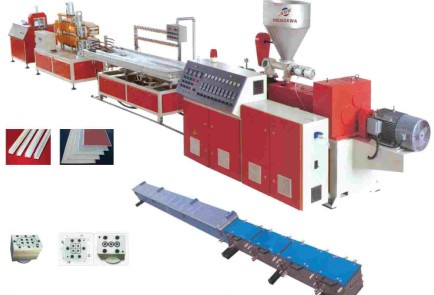

Plastic Profile Extrusion Line
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |

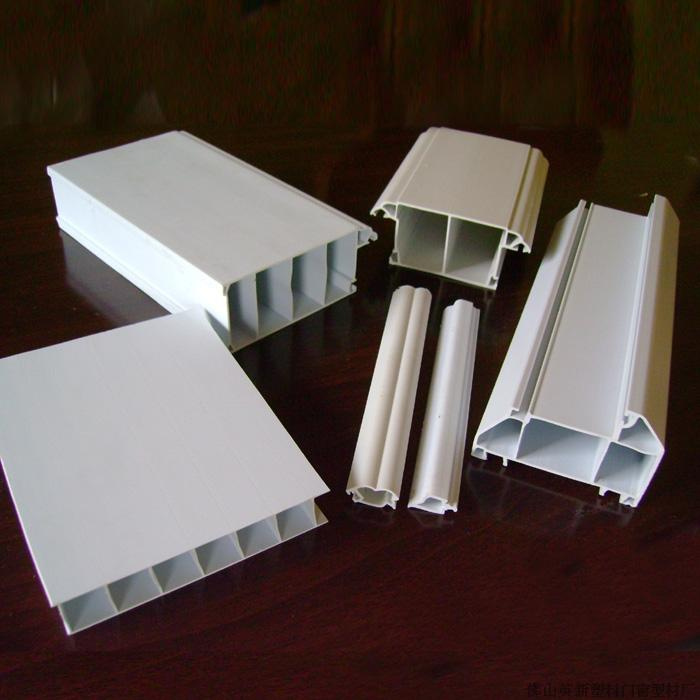

Plastic Profile Extrusion LineApplication and feature:YF series PVC profile production line is mainly used in PVC window profile, PVC door, wide door plate, window plate, extrusion of multi-holes pipe for passing through lines(four holes, six holes, seven holes, nine holes, etc). According to different profile, sectional surface and moulds, twin parallel(conical) calibrating table, haul-off unit, cutting unit, strcker, etc.
Small Profile Extrusion Line
|
Model |
YF180 |
YF240 |
YF300 |
YF400 |
|
Max.width of profile(mm) |
180 |
240 |
300 |
400 |
|
Haul-off height(mm) |
140 |
140 |
140 |
140 |
|
Haul-off force(KN) |
15 |
30 |
30 |
30 |
|
Haul off speed(m/min) |
0.5-5 |
0.5-5 |
0.5-5 |
0.5-5 |
|
Auxiliary equipment total power(kw) |
18.7 |
31.6 |
331.6 |
31.6 |
|
compression air(Mpa) |
0.6 |
0.6 |
0.6 |
0.6 |
| Prod Model: |
mengkwa |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Profile Extruder |
| Screw: |
Twin-Screw |
| Automation: |
Automatic |
| Computerized: |
Computerized |
| Plastic Processed: |
PVC |
Ningbo Mengkwa Machinery Co., Ltd. is located in Ningbo city, Zhejiang Province in China. It is only 10km from Ningbo Airport, and it is around 300km far from Shanghai.
We have more than 16 years experience in producing and export plastic machinery. With advanced technology and exprience, we produce plastic extrusion line: Pipe extrusion line, profile extrusion line, sheet & board extrusion line, foam extrusion line, soft PVC extrusion line, plastic pelletizing and recycle line, rubber extruder and vulcanization production line, and etc.
We will always strive to keep forging ahead and making innovations. Meanwhile, we're willing to establish good relationships with both domestic and international customers to create new heights in the plastic machinery industry.
Our aim: Honesty, serious, excellence, devoting.
