PP/PE Hollow Cross Section Plate Production Line Machine
Price: |
US $ 75000-95000/Piece |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
1/Set |
Pay Type: |
L/C,T/T |
PP/PE Hollow Grid Sheet Extrusion Production Line Machineis used to produce the PP Hollow Sheet and PE Hollow Sheet.
Raw Material:
1. Can be virgin material
2.Can be recycable material, like the PP/PE Film
This Extrusion Line Consists of :

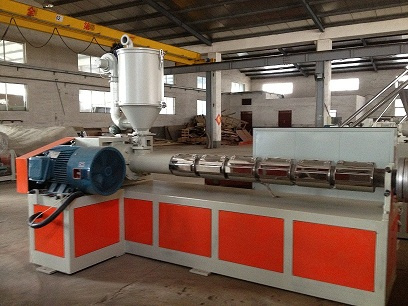

1. Single Screw Extruder
2. Melt-pump+Hydraulic exchanging unit
3. Vacuum Calibarting Table

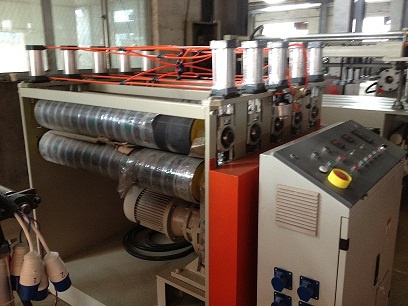

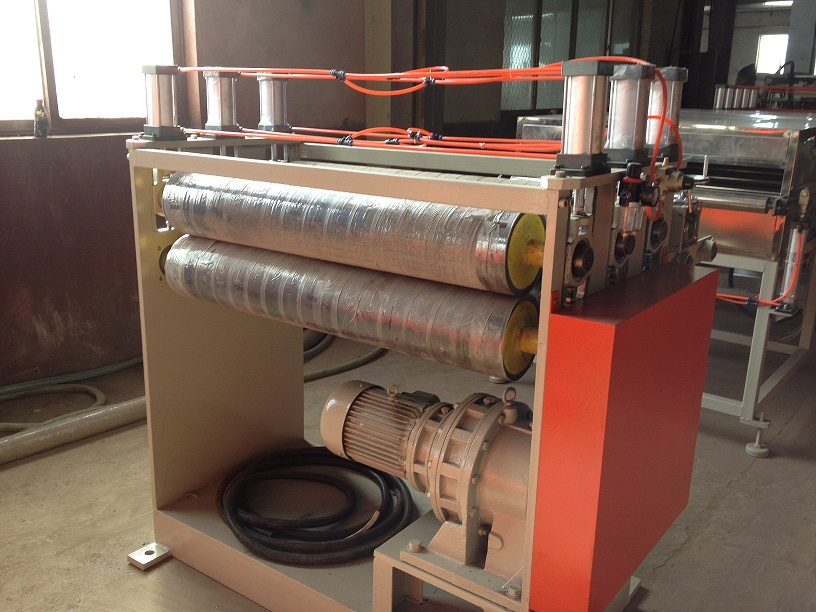

4. First Haul off Machine
5. Oven
6. Corona treating unit
7.Cooling table
8. Second Haul-off Machine
9. Trimming and length-settled cutting unit
10. Discharging table.Characteristics of vacuum calibator:1. High quality mould steel or high strength Al-Mg Alloy
2. Special harden treatment and non-sticky coating on the surface.
3. Indepently controlled vaccumize device and temperature controling system.
4. Consist of vacuum sealing edge device.
|
Single Layer |
Double Layers |
Extruder Model |
SJ120 |
SJ120, SJ65 |
Product Width |
1000-2300mm |
1000-2300mm |
Product Thickness |
2-10mm |
2-10mm |
Driving Motor |
132KW |
132KW, 45KW |
Capacity |
180-260kg/h |
200-300kg/h |
Prod Model: |
SJ |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Electrical Components: |
Famous Imported Brands |
Sheet Thickness: |
2-10mm |
Sheet Width: |
1300-2100mm |
Certifications: |
CE, ISO9001, SGS, Gost etc. |
Product Type: |
PP Board |
Board Layers: |
Single Plate |
Certification: |
SGS |
Automation: |
Automatic |
Computerized: |
Computerized |
