PPR Water Pipe Extrusion Production Line, using the specical screw design and enhanced plasticization effect of PPR to ensure high quality, high speed extrusion, high shear stress and low temperature to ensure that raw materials of high performance plastic extrusion, the measurement on the feeder with the drying system to ensure that PPR extrusion uniform.
Splilt spiral extrusion die is designed for PPR Pipe, production range of 12-160mm, the maximum line speed up to: 10m/min.
ALLICATIONS:

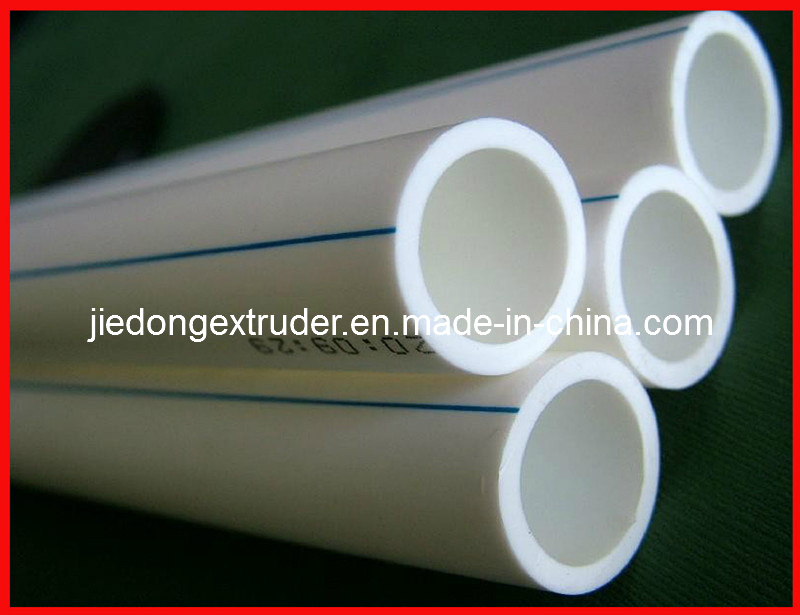

PP-R cold/hot water pipe production line is mainly used in house water supplying system, industry water conveying, compressed air transiting pipe with thick wall and different diameter.
ADVANTAGES OF THIS EXTRUSION LINE
---Even & Uniformed Plasticization, High Extrusion Capacity
---PLC Touch Screen Controlled System, High Precision
---Advanced Tech. Low Energy Cost
---Stable and Reliable Performance
---Durable, Safe and Easy to Operate
---High Automatic Degree, Save Labor Energy
---Main Electrical Components: Omron, ABB, RKC, Schneider, Simens, Delix etc
---ISO9001, CE, SGS certifications.
|
Model/Sepc. |
Diameter Range (mm) |
Extruder model |
Line speed (m/min) |
Max. Capacity (kg/h) |
Installed power (KW) |
|
JD-SJ65/30 |
12-63 |
SJ65/30 |
0.8-9m/min |
120 |
55 |
|
JD-SJ90/30 |
75-160 |
SJ90/30 |
0.2-4.5m/min |
260 |
120 |
|
PPR water pipe extrusion line components: |
|
Item |
Description |
Data |
|
1 |
Meter-Counting Automatic Vacuum Feeding Machine with a Drying System |
1 set |
|
2 |
SJ65/30, or SJ90/30 Single Screw Extruder |
1 set |
|
3 |
SJ-25/25, SJ30/25 Co-extruder for Marking Line |
1 set |
|
4 |
Mould or Die Heads (chromed) |
According to customer' s need |
|
5 |
SZD-6000 Vacuum Calibration Water Tank |
1 set |
|
6 |
SDP-6000 Vacuum Spraying Water Cooling Tank |
1 set |
|
7 |
SQY Hauling off Machine |
1 set |
|
8 |
SQG Nonscraped Knife Cutting Machine(Can be PLC Controlled) |
1 set |
|
9 |
SFL-6000 PPR Pipe Stacker |
1 set |
|
10 |
Main Electrical Components |
Omron, ABB, Schneider, Delix, Simens, RKC. etc. Famous Important Brands |
|
|
Optional Devices |
|
|
1 |
Printer(Metering Counting Printer or Ink Jet Printer) |
1 set |
|
2 |
Plastic Mixer |
1 set |
|
3 |
Water Chiller |
1 set |
|
4 |
Air Compressor |
1 set |
Qingdao JIEDONG plastic machinery Co., Ltd is a professional manufacturer of plastic machinery, who is one knowledge-intensive manufacturer dedicated to extruder kind of equipment of scientific research, development, fabrication, sales and service.
Our company was awarded science and technology progress enterprise title by Qingdao government, also holds ISO9001: 2000 and CE certificate, and has independent import and export rights.
Plastic machinery we manufactured widely covers series extruder of plastic pipes; plastic plate &sheet; plastic profile; granulating unit; plastic recycle machine and crusher, more than 20types and have more than 100 varieties.
Our plastic machinery with top quality and company hold very good reputation, so our plastic machine lines had far sold to 30 provinces and cities in domestic market and had export to India, Russia, Korea, Iran, Saudi Arabia, Turkey and Vietnam.
Our products include plastic pipe production line, plastic profile production line etc
such as:
machine for PVC pipe, PE/HDPE pipe, PPR pipe, PA/PU pipe, corrugated pipe, COD duct, pre-stressed corrugated pipe, PE carbon corrugated pipe etc.
Machine for plastic profile include: PVC sheet, PVC corner bead, PVC profile, PET sheet, PET packing belt, WPC sheet, WPC door/winder board, WPC profile etc.
auxiliary machinery include: Mixer, drying machine, crusher, pelletizer etc
