Professional Hardware and Battery Welding Machine and Laser
| Price: |
US $ 1000-15000unit |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1unit |
| Pay Type: |
L/C,T/T,Western Union |

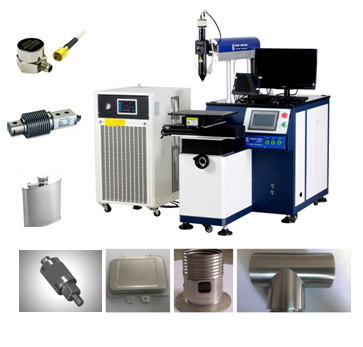

Introduction:KRWY200W series automatic laser welding machine is specially designed for stainless steel, bathroom accessories and lighting products etc. It is with high precision, small welding spot (0.2mm-2mm), small heated area, no deformation of working piece and allowed for texturing after welding. It is the application of laser local deposition welding technology in the field of tools and moulds.Features:1. Using imported ceramic condensing cavity, high photoelectric conversion rate, CCD real-time monitoring to make sure the stability of welding quality.2. It can implement automatic and semiautomatic spot welding, butt welding, stitch welding, and sealing welding, mainly for seamless welding of thin-walled materials and precision parts.3. High precision locating, small focusing spot, accuracy control and easy to achieve automation.4. Using four-dimensional ball screw worktable and imported servo control system, optional rotary worktable, and be able to mark dot, line, circle, square or any plan figures drawn by CAD.Any waveform is available, and can be adjusted according to different welding materials. The match of welding parameters and welding requirements to achieve the best welding effect.Application Industries:Widely used for sensors, mobile phone batteries, mobile phone data lines, high-end bathroom accessories, medical equipment, craft gifts, horologe, electronic components, precision machinery, electronic communications and other industries.Suitable Materials:Suitable for welding between same materials and different materials like stainless steel, gold, silver, iron, aluminum, alloy, steel, diamond.
| Prod Model: |
KRWY200W/500W |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Wavelength: |
1064nm |
| Max. Laser Output Power: |
200W |
| Max. Laser Peak Power: |
6kw |
| Pulse Width: |
0.1ms~20ms |
| Pulse Frequency: |
0.1Hz~100Hz |
| Control Current: |
20A_300A |
| Laser Type: |
ND: YAG |
| Travel Of Worktable: |
300mm×200mm×100mm |
| Locating Accuracy: |
0.05mm |
Shenzhen Kingray Laser Equipment Co., Ltd is located in Bao'an district, Shenzhen, the high-tech coastal city in China. Kingray was founded in 2008 (previously named Tongchuang Laser, founded in 2005), a high tech enterprise specialized in design, manufacture, marketing and post-sale service of industrial laser applications such as UV laser for micro cutting, precision fiber laser cutting, various types of laser welding and laser marking, integrated seamlessly industrial robot for production lines.
Kingray has equipped the most advanced production and testing equipment like Renishaw laser interferometer & 2D photogrammeter, Coherent laser power meter and etc. Kingray has a professional develop&research team with staffs in optics, electron, precision machinery and software control. Kingray has got the ISO quality system identification and holds dozens of patents and two software copyright in laser equipment filed. Kingray's products are with excellent performance, easy to operate and maintain, widely used in LED lighting, auto parts, plumbing, sanitary ware, electromagnet&cell, sensors, precision machinery, jewelries, fiber glass, engraving of bamboo ware & wood, gifts, food packaging, tobacco packaging, Logo marking, engraving, welding and precision cutting of 3C digital parts like iPhone, Samsung, Huawei, Lenovo.
Through the efforts of our professional R&D team, we have developed several types of industry specific laser machines that are integrated seamlessly with industrial robot, and have broken through the tranditional manual operation laser process equipments to provide labor-saving and financial-saving to our customers, and earned high recognition from clients.
