We are recognized leading manufacture and exporter of woodworking CNC engraving machine, sign making advertising CNC router machine, cutting plotter, CNC laser engraver which are CE, RoHS, and BV certificated.

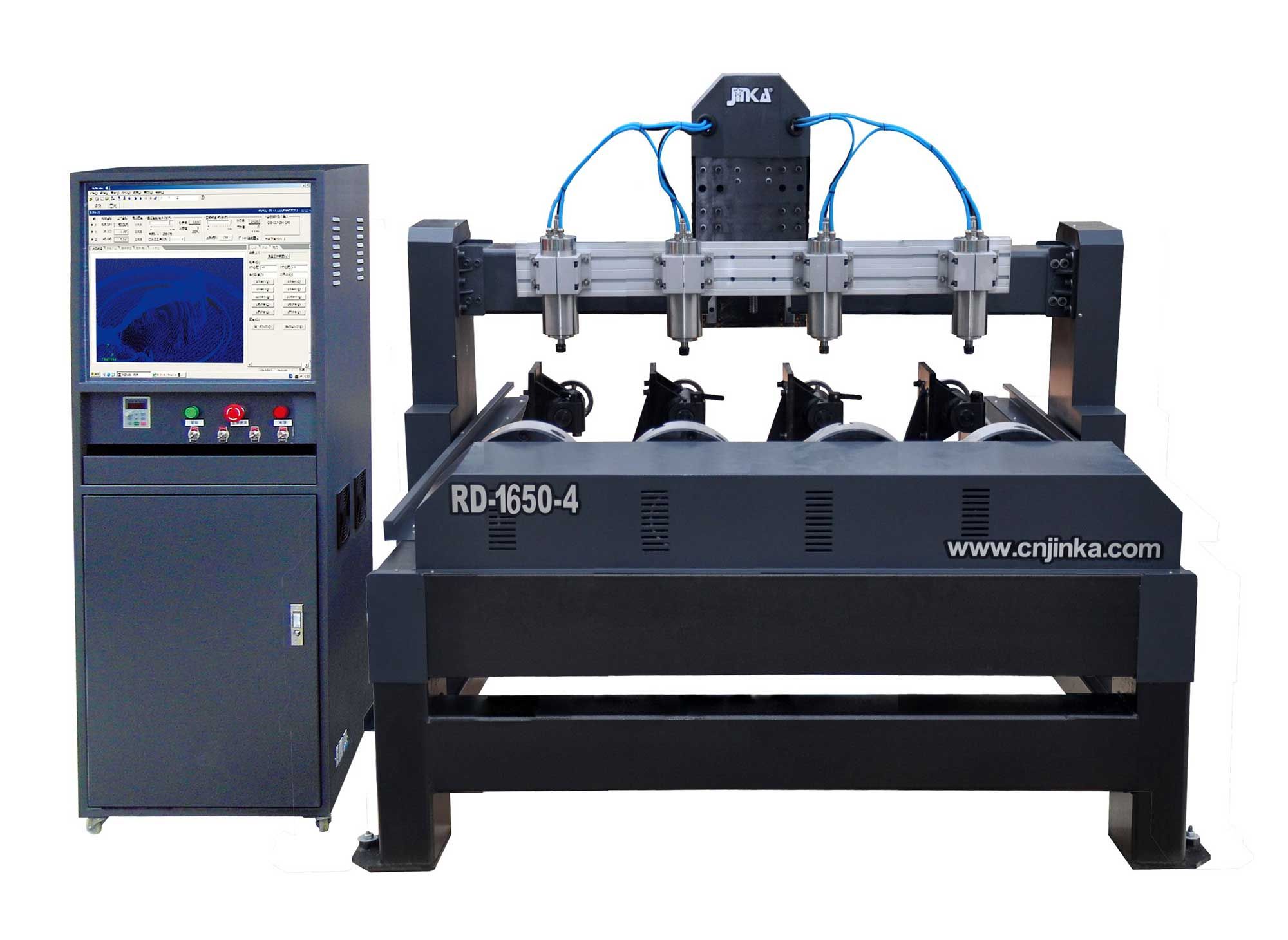

Competitive Rotary/Cylinder Woodworking Machine (RD1650)
Application:
European-style marble pillar, Archaized black wood furniture, Pencil vase, Brush pen, Chopsticks, Bamboo handicrafts, 3D handicrafts, Jewelry, Any cylinder objects.
Advertising signs and scutcheon making, acrylic cutting, blister light boxes, jade jewelry, mobile phone panel, electrocircuit board, electric appliance panel, moon cake mould making, etc.
Competitive Rotary/Cylinder Woodworking Machine (RD1650)
Features:
-Employing imported high precision rolling ball screw possesses high accuracy and speed.
-Adopting constant power frequency adjustable water cooling spindle features good performance, large torque, and high efficiency.
-Intellective control of the processing speed, idle speed and down speed improves efficiency and quality of processing, also extends the tool's life time.
-CNC control system features recovery function by remembering the working coordinate and continue to work with it after cutting of power or braking of tools.
-Compatible with any advanced software such as Type3/Artcam/CAXA/UG/PRO-E/Mastercam/Ucancam and so on.
Competitive Rotary/Cylinder Woodworking Machine (RD1650)
Standard configuration:
Control system: NC Studio motion control system
Driver: Stepping motor
Transmission type: Rolling ball screw transmission
Spindle: Variable frequency constant power water cooling spindle
Guide rail and motion slides: Linear square rail and motion slides imported from Taiwan
Body: Welded Steel Structure
Gantry: Steel gantry
Dust cover for X axis
Manual lubricating system
Competitive Rotary/Cylinder Woodworking Machine (RD1650)
Options:
-Various spindles meet different applications
-Air cooling spindle
-DSP control system
-Panasonic, Yaskawa AC servo system
-Industrial cooling system
Competitive Rotary/Cylinder CNC Engraver |
Model Available |
RD1650 |
RD1610 |
RD2510 |
Working Area of X Axis (mm) |
500 |
1000 |
1000 |
Diameter of rotary axis (mm) |
160 |
160 |
250 |
Idle speed |
20m/min |
Processing speed |
15m/min |
Spindle power |
800W~2.2KW Variable frequency water cooling spindle |
Rotary rate |
6000 or 24000 rpm/min |
Working voltage |
AC220V/50Hz or AC380V/50Hz |
Engraving tool |
Φ 3.175/4/6 |
File format |
G code/ HPGL |
Positioning precision |
± 0.03mm |
Repeat positioning precision |
± 0.02mm |
Hefei Kaxing Digital Control Equipment Co., Ltd. is a high-tech industry enterprise integrating research, development, manufacturing, sale and after-sales service. Our company mainly focuses on manufacturing CNC engravers, laser engravers, mould engravers, cutting plotters and CAD plotters.
The Gold Cut series products of our company have been widely used in woodwork industry, advertisement decoration industry, sign and scutcheon industry, art craft and gifts industry and module industry. With high technique, reliable quality and excellent character, our products have won a good reputation in the world. Our products sell well not only in domestic market, but also in Southeast Asia, Europe, America and Africa.
We follow in "Gold Cut brand, Gold Cut quality and Gold Cut Service" principle to pursue excellent, aggressive and innovative.
