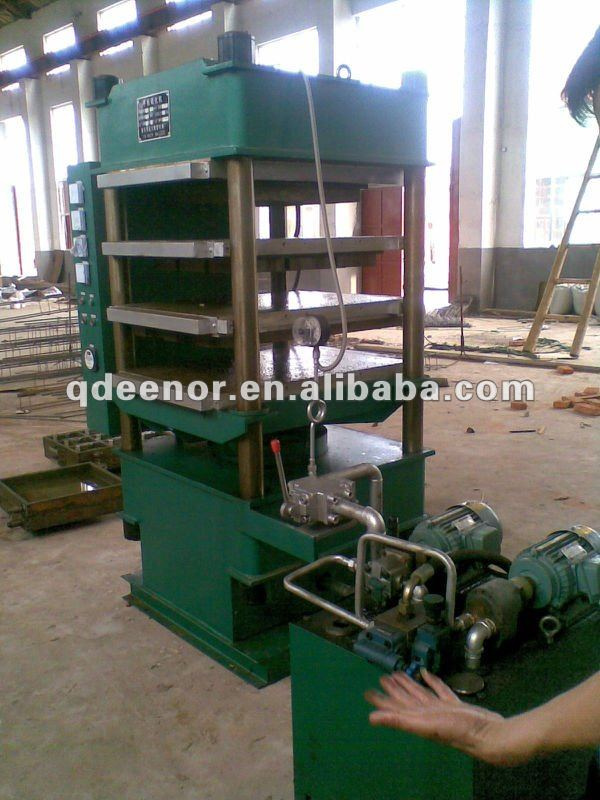

1. This vulcanizing machine is used for all kinds of vulcanizing mould, rubber and plastic mould products, and non-mould products.
2. Being a column structure and dowward pressing trpe, the heating plate opens by the seif-weight of the heating plate, platfrom and plunger. The rising of the plunger makes the heating plate close while the hydraulic oil provides the pressure.
3. This engine base is combined together with the cylinder and base frame, which is made of ductile iron to increase the cylinder intensity and abrad ability, The cylinder is fitted with the sealing washer made of the oil-resisting rubber for the sealing purpose.
4. By moving the operational handle of the control value to the two different positions, the heating plate can open and close.
5. It uses the electric pipe for heating, thus makes the workshop clean with easy and reliable operation.
6. We can design and manufacture all kinds of non-standard rubber machinery according to the requirement of the customers.
|
Type |
XLB-DQ400*400*2 |
XLB-DQ600*600*2 |
XLB-DQ750*850*2 |
XLB-DQ1000*1000*2 |
XLB-DQ1500*1500*2 |
XLB-DQ300*300*2 |
|
Total pressure |
0.50 MN |
1.00 MN |
1.60 MN |
4.00 MN |
8.00 MN |
0.25 MN |
|
Plate size |
400*400 mm |
600*600 mm |
750*850 mm |
1000*1000 mm |
1500*1500 mm |
300*300 mm |
|
Plate clearance |
125 mm |
125 mm |
125 mm |
125 mm |
125 mm |
125 mm |
|
Working layer nuber |
2 |
2 |
2(4) |
2(4) |
2(4) |
2 |
|
Piston stroke |
250 mm |
250 mm |
250(500) |
250(500) |
250(500) |
250 mm |
|
Plate pressure |
3.1 Mpa |
2.8 Mpa |
2.5 Mpa |
4.0 Mpa |
3.6 Mpa |
2.1 Mpa |
|
Motor power |
2.2 kw |
3 kw |
3 kw |
5.5 kw |
5.5 kw |
2.2 kw |
|
weight |
1300 kg |
3500 kg |
6500 kg |
11000 kg |
22000 kg |
1050 kg |
