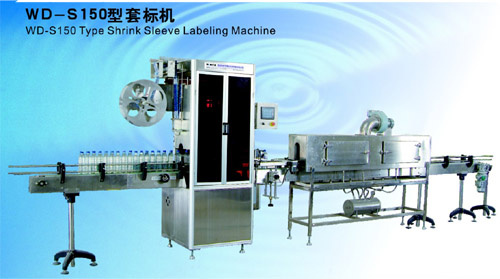

. Features:
1. Whole machine frame is made out of stainless steel SUS304. The frame is siple, beauty, waterproof and don't rust. It is easily for cleansing
2. The especial cutting system: Adopting the shisht and convolute technology. The label cutting is flat\not burr
3. The label location set assures the sleeving veracity.
4. Adopting model group design\module controlled; Achieve veracitily and fasy sleeving.
5. With the good quality touching operation screen, achieving operation by finger, easy and shortcut
6. It is a high automatic packing machine. Just one person handles. Easily operation
7. Easy to change packing material, the changeover of the mould can be easily done by hand without any tools
8. Within the flay width limitation, can be used to package objects in different shape, no matter round or square, can be applied on glass or plastic articles
9. High safety and stability for operation and saving time of manpower
| Electrical Source | 3&380/220VAC |
| Power | 3KW |
| Dimension | 850*800*2180(mm) |
| Packing Speed | 150BPM(MAX) |
| Bottle Dimension | Φ28-Φ125*300(H)mm |
| Label Thickness | 0.035-0.07mm |
| Applied Material | PVC PET OPS |
| Label thickness | 30-250mm(MAX) |
| Total Weight | 450kg |
We devote ourselves to the development, research and production of liquid food and beverage packing and filling industry and automatic blow molding machine in China.
For beverage machine, our Main products including:
The capacity of 5000-- 40000 BPH for HOT FILLING, MID-TEMP FILLING, ASEPTIC COLD FILLING LINES.
The capacity of 5000-- 40000 BPH for MINERAL WATER AND PURIFIED WATER PRODUCING LINE.
The capacity of 5000 -- 36000 BPH for CARBONATED BEVERAGE PRODUCTING LINE.
The capacity of 300 -- 2000 BPH for 3 gallon OR 5 gallon BARREL FILLING PRODUCTING LINE.
The capacity of 8000 BPH for the volume of 200ml to 500ml in MILK PACKAGING.
All kinds of WATER TREARMENT EQUIPMENT.
PET perform INJECT and BLOWING-STRETCHING MACHINE.
Mould plastics machine
Turn-key projects
Flat and tube UHT device, and CIP system.
All the products are sold well in every province and city of the whole country and also exported to several countries and areas with strong technical force, advanced equipment, scientific management system and perfect after-sales service.
