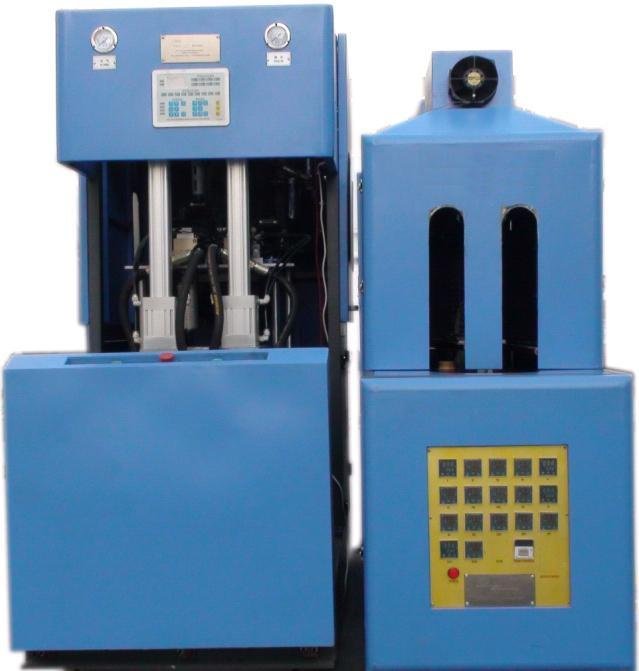

ZSB800B Semi-Automatic 2cavity Bottle Blowing Machine is applied for blow small bottle volume max. 2L, This blowing machine is best suitable for small scale production and beginner; The preform is heated in infared oven, and the heated preform is muanally put into blowing, ZSB-800B Semi-automatic blowing machine With two blower one heater for double capacity.
|
MODEL |
Unit |
ZSB800B |
|
production |
Preform material |
|
PET |
|
Max. volume |
L |
2 |
|
Theoretical production capacity |
BPH |
1600 |
|
Max. neck diameter |
mm |
38 |
|
Max. bottle height |
mm |
360 |
|
Max. bottle diameter |
mm |
120 |
|
molding unit |
Clamping force |
Kn |
200 |
|
Max. mould plate dimension(L*H) |
mm |
420*500 |
|
Mould opening stroke |
mm |
200 |
|
Max. Mould stretching stroke |
mm |
400 |
|
Max. Mould thickness |
mm |
240 |
|
Number of cavity |
cavity |
2 |
|
electricity |
Total power consumption |
Kw |
16 |
|
Voltage/frequency |
v/hz |
380v 220v 3phases /50hz 60hz |
|
compressed Air system |
Operation pressure |
Kg |
0.8-1.2 |
|
Blowing pressure |
kg |
30 |
|
High pressure Air consuming |
M 3 /min |
2.0 |
|
Air Cooling dryer(optional) |
M 3 /min |
2.0 |
|
Air filter(optional) |
M 3 /min |
2.0 |
|
Air tank |
L |
600 |
|
chilled water |
Water chiller(optional) |
recyling cooled water |
|
Machine size and weight |
Blower dimension(L*W*H) (2sets) |
m |
1.85*0.58*1.8 |
|
Blower weight(2sets) |
Kg |
600*2 |
|
Heater dimension(L*W*H) |
mm |
1.65*0.7*1.35 |
|
heater weight |
Kg |
450 |
