Product introduction

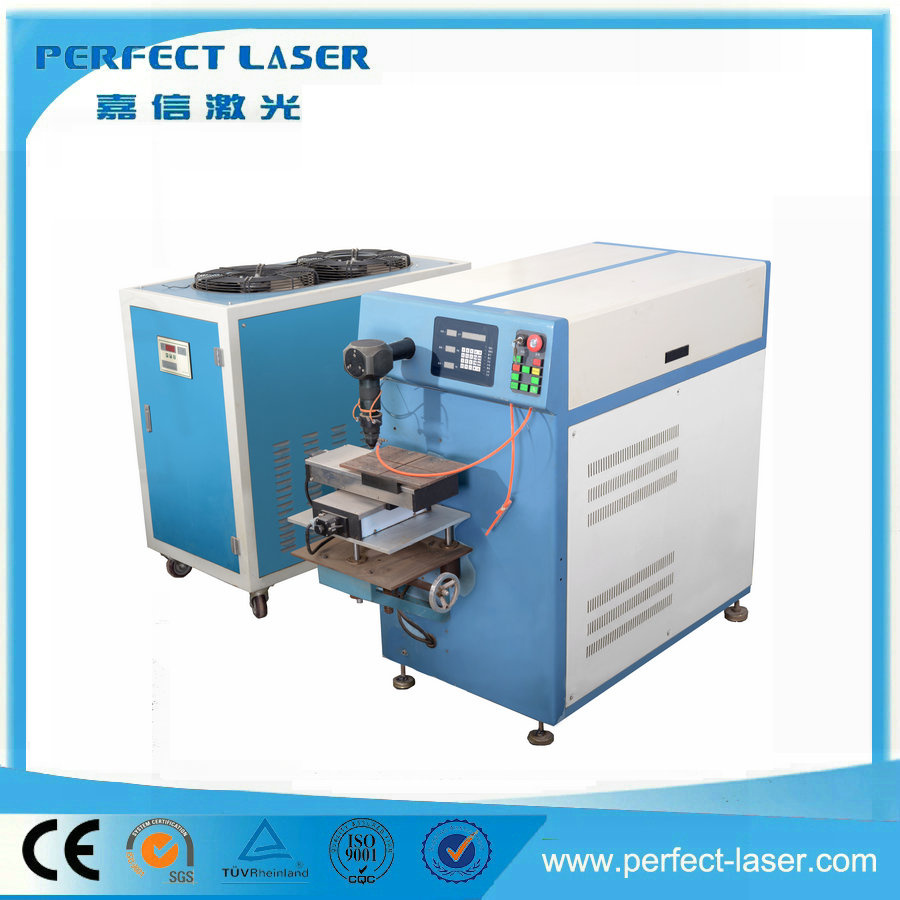

Laser welding machine has high quality beam and high precision welding,
particularly suitable stainless steel, carbon steel and other metal materials
welding. The control system uses a dedicated control software and control
board, which provides a good user interface, enabling 3-axis. By using AutoCAD
or electronic chart to produce complex graph, it can be imported directly into the
control interface for fine processing. Machine has feature of stable and reliable
working, good processing quality, high efficiency, simple operation, easy
maintenance.
Product Features
The machine can easily adjust the height of the two-dimensional table and the
rotary fixture, deflect angle of incidence of the laser, select parameters of laser
output power, frequency and pulse width. It also has the function of having-misuse and over-temperature protection, output waveform settings. Two-Dimensional
table and rotary fixture can be controlled by IPC or PLC optionally.
Applications
Widely used in the welding of gold, silver, platinum, stainless steel, titanium and other
metals and alloys,it has been widely used in industry of aviation, aerospace, weapons,
ships, petrochemicals, household appliances, daily necessities, medical, instrumentation,
electronics, automotive and Patches of mold and other industries.
Technical parameters
Laser wavelength: 1064 nm
Laser material: Nd: YAG crystal
Laser rated power: 500W
Pulse width: 0.5-20 ms
Pulse Frequency: 1-100 Hz
Power instability: ≤ ± 3%,
The maximum pulse energy 125J
Table travel: 150 mm × 100 mm
Working current: 100 ~ 450 A
Power supply: 380V ± 10% / 50Hz
Continuous working time: ≥16 hours
Focus Lens Focal Length: 100mm
Maximum input power: 16KW
