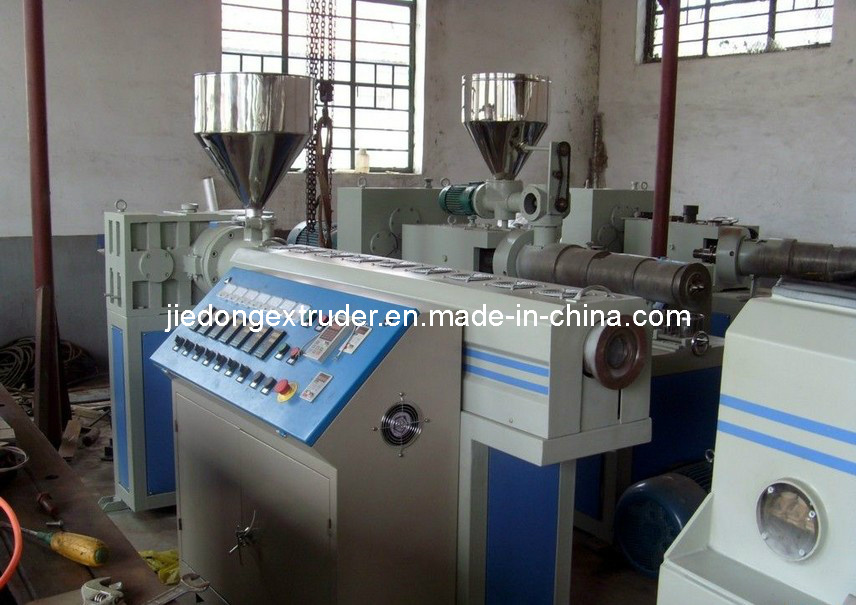

(SJS-100× 22) parallel twin screw extruder
Main technical parameters:
--Screw diameter: 100mm
--Screw L/D: 22: 1
--Useful working lenth: 2200mm
--Main motor power: 55KW
--Max output: 400-460kg/h
--with vacuum sucking wet device and screw core temperature adjust device
--with fix quantity feeder, frequency motor adjust speed
--Main motor is frequency motor, frequency converter adopt FUJI products, Japan
-- Material of screw and barrel: 38CrMoAlA, Nitriding depth: 0.5-0.7mm,
Surface hardness: HV800-900
-- cooling mode of barrel: Oil cooling
-- Barrel heating 4 zones, power18kw
Barrel cooling 3zones
--Out dimension: 4550× 1350× 2600( mm)
|
Parallel twin screw extruder technical parameter: |
|
Model |
80×24 type |
100×22 type |
|
Screw number |
2 |
2 |
|
Screw diameter(MM) |
80 |
100 |
|
(L/D) |
24:1 |
22:1 |
|
Rotation direction |
contrary flexure/outer flank |
|
Rotation speed (r/min) |
4.3-43 |
35-35 |
|
Total torque (n.m) |
8000 |
15000 |
|
Number of barrel heating zone |
7 |
4 |
|
Heating power (kw) |
27 |
18 |
|
Oil cooling zones |
3 |
3 |
|
Drive power (kw) |
37 |
55 |
|
Max output (kg/h) |
250-300 |
400-460 |
|
dimension (L/W/H) |
3460×1100×2315 |
4550×1350×2600 |
|
Weight (kg) |
4900 |
5500 |
Qingdao JIEDONG plastic machinery Co., Ltd is a professional manufacturer of plastic machinery, who is one knowledge-intensive manufacturer dedicated to extruder kind of equipment of scientific research, development, fabrication, sales and service.
Our company was awarded science and technology progress enterprise title by Qingdao government, also holds ISO9001: 2000 and CE certificate, and has independent import and export rights.
Plastic machinery we manufactured widely covers series extruder of plastic pipes; plastic plate &sheet; plastic profile; granulating unit; plastic recycle machine and crusher, more than 20types and have more than 100 varieties.
Our plastic machinery with top quality and company hold very good reputation, so our plastic machine lines had far sold to 30 provinces and cities in domestic market and had export to India, Russia, Korea, Iran, Saudi Arabia, Turkey and Vietnam.
Our products include plastic pipe production line, plastic profile production line etc
such as:
machine for PVC pipe, PE/HDPE pipe, PPR pipe, PA/PU pipe, corrugated pipe, COD duct, pre-stressed corrugated pipe, PE carbon corrugated pipe etc.
Machine for plastic profile include: PVC sheet, PVC corner bead, PVC profile, PET sheet, PET packing belt, WPC sheet, WPC door/winder board, WPC profile etc.
auxiliary machinery include: Mixer, drying machine, crusher, pelletizer etc
