Soup Cube Compress Machine Zp23

Soup Cube Compress Machine Zp23
Price: US $ 42800/Piece
Trade Terms: FOB,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union
       This model is suitable  for making 4g or 10g soup cube. chicken cube, beef cube,shrimp cube.....
Technique Parameter:
Type                                                                            ZP23
Stations                                                                        23
Max.Pressure(Kn)                                                        100
Max.dia.of tablet(mm)                                                   45
Max.thickness of tablet(mm)                                         15
Max.depth of fill(mm)                                                     30
Max.output of one-layer tablets(pcs/h)                          69000
Rotational diameter(mm)                                               445
Rotational speed of revolving table(r/min)                     10-25
Diameter of middle mould(mm)                                       52
Highness of middle mould(mm)                                       38
Diameter of upper and lower punch(mm)                        45
Length of upper punch(mm)                                           175
Length of lower punch(mm)                                            180
Overall dimensions(mm)                                                  1000*1250*1900
Net weight(kg)                                                                  3200
Motor model                                                                     YU132M4A
Motor(kw)                                                                         7.5
Voltage(v)                                                                         380

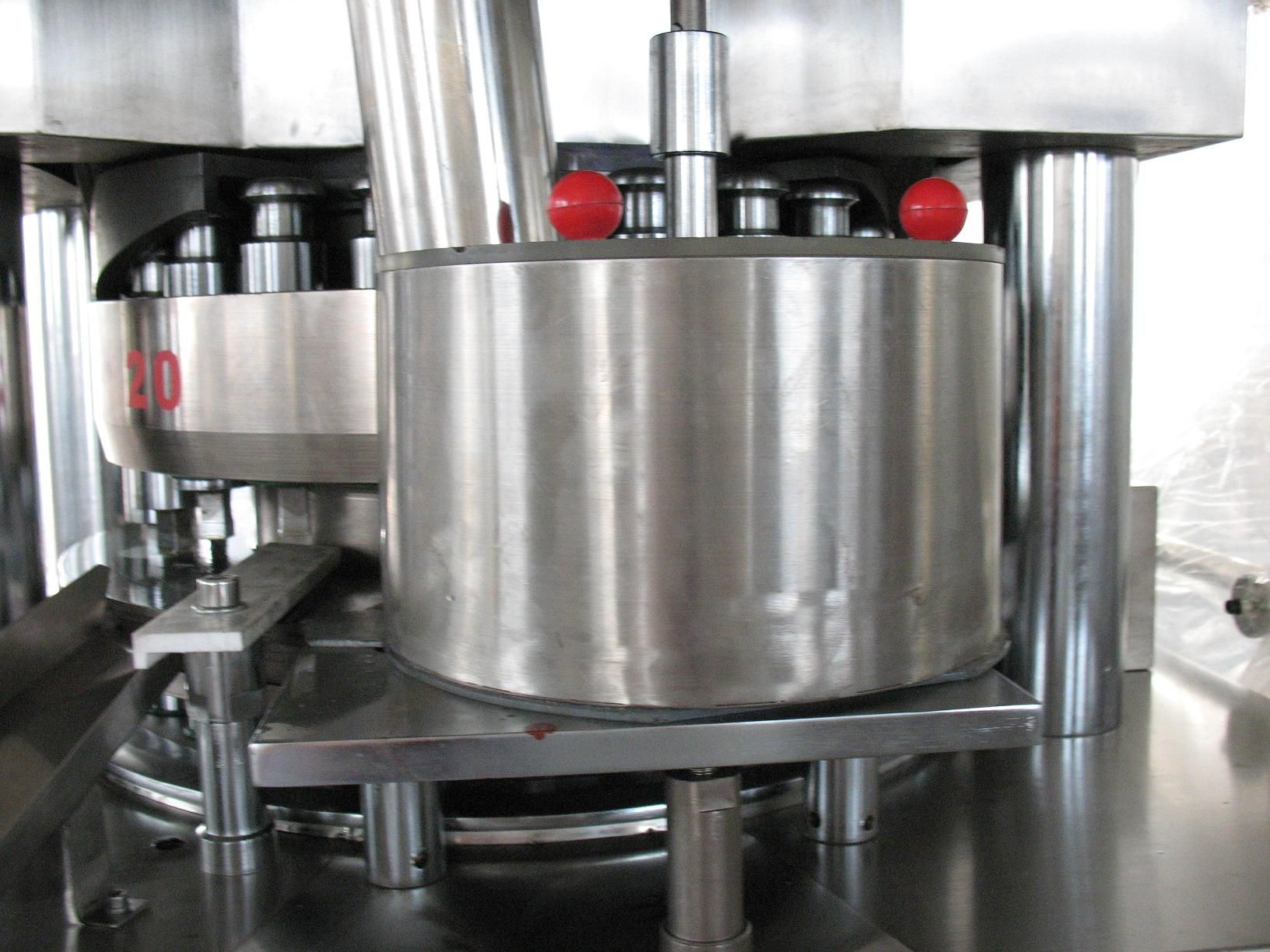

Following is some detailed picture of the machine:

Prod Model: ZP23
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Stainless Steel: 304 316
Voltage: 380V
Customized: Customized
Power: 7.5kw
Type: Tablet Press Machine
Shanghai Tianfeng Pharmaceutical Machinery Co., Ltd. Has made elaborate designs and products, on the basis of absorbing features and advantages of similar products both at home and combing with national GMP standard., Product pass CE and ISO9001 certificate, with high quality and good reputation.

We have successfully developed the brand of TDP, DP, THP, ZP, ZPW series tablet presses; CFQ, CXJ, TSG, QVC series assistant machine of tablet presses; CH, V, HD series mixers; YK, ZL, LG, HLSG series granulators; GF, Dl, CW series crushers; RXH series drying machines; BY series sugarcoating machines; ZLK series high speed granulator and various dies, which are suitable for pharmaceutical, food, chemical, electronics and metallurgy industries.

Our products sells well throughout China and Southeast Asia. The products have won good reputation and praises among all customers, from at home and abroad. The management motto of our company is "Develop through quality; Strive for survival through quality".
