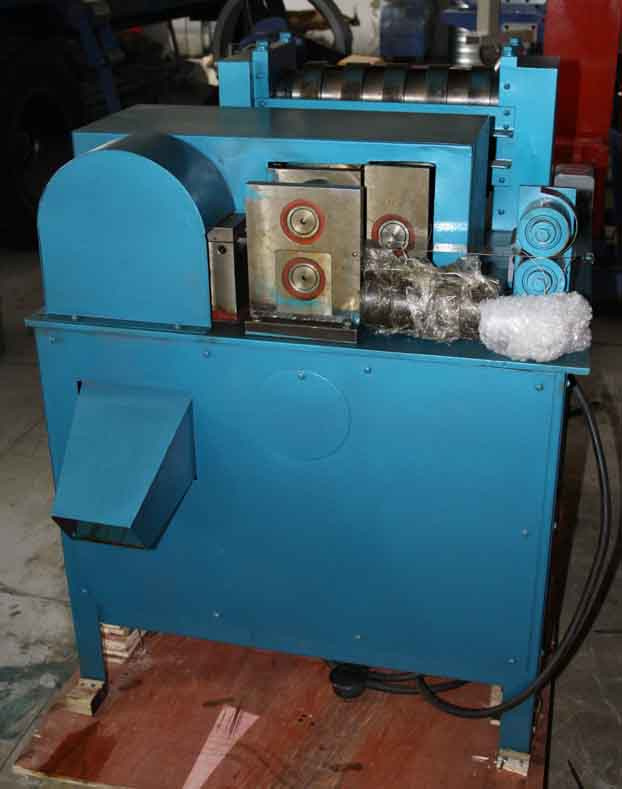

Steel fiber making machine SFS-700
picture of the Polypropylene Fiber Machine
I Description of the Steel fiber making machine
By changing different moulds, this kind of machine can form and cut straight type, twist type, wave type, hook type, sawtooth type, dint type, etc. The raw material is usually steel coils or waste steel plates. These fibers usually have tensile strength more than 800MPa.
Note: Usually for a complete factory, there usually need one SFS-1500 and two SFS-700 machines, one SFS-400, one slitting device.
II Main technical data of the Steel fiber making machine
See Appendix table
III Price of the Steel fiber making machine
Price basis: FOB Shanghai
Payment: 30% down payment by T/T in advance, the balance by T/T against fax copy of B/L
Lead-time: within 50 days after receiving down payment
Slitting device: USD 8,500
Note: Above price already includes one set of mould for hook or straight or wave types. If need other moulds, extra cost will be USD 1200 per set.
IV Guarantee of the Steel fiber making machine
within one year since the date of B/L
Our company will be your reliable and professional supplier of the post-tension steel pipe making machine in China. We have been in this line for more than 10 years and have provided the corrugated post-tension tube forming machines to many countries all over the world!
Add: No. 243, Ninghai Road, Rugao City, Jiangsu Province, China 226500
Tel: 0513-87628369
Fax: 0513-87635890
Code | Productivity (kg per shift) | Motor power (kW) | Max. fiber length (mm) | Fiber thickness (mm) | Machine weight (kg) |
SFS-1500 | 1500 | 3 | 60 | 1.5 | 900 |
SFS-700 | 700 | 2.2 | 40 | 1.2 | 700 |
SFS-400 | 400 | 2.2 | 30 | 0.8 | 450 |
SFS-300 | 300 | 1.5 | 30 | 0.5 | 450 |
Our company is an manufacturer and export agent, specialized in cold roll forming machines, metal processing machines, tube machines, pipe machines, transformer making machines, fin making machines, wire bending machines, motor making machines, tank making machines, welding machines, etc. We are supply our customers worldwide with our good qualities, competitve prices and satisfied after-sale services.
