Application: | 5L Bucket Lid | Cavities Number: | 1 Cavity |
| Core And Cavity Material: | 718H | Injection System: | Hot Runner |
| Material: | PE, PP | Product Name: | Home Appliance Mold |

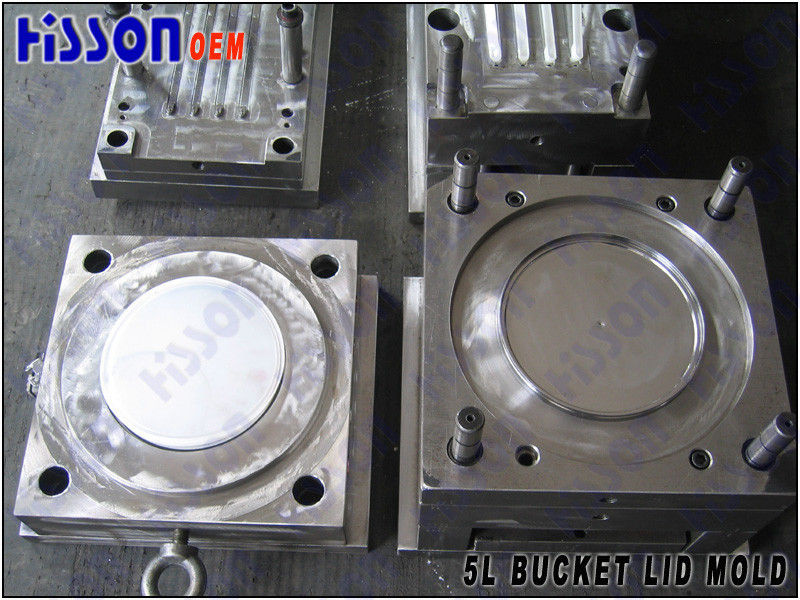

Hot Runner Plastic Home Appliance Mould , PP 5L Bucket Lid Mold
Quick Detail:
5L Bucket Lid Mold for paint packing
1 Cavity
Core And Cavity Material: 718H/2316
Hot Runner
Mould Introduction:
Material to be used : PP/ PE
Anual Production Preview : >1.000.000
Number of cavities : 1-Cavity
Type of injection system : Hot Runner System with Single-point Temperature Control, or Cold runner
Type of gating : Center of the part / Cosmetic Gate
Hot runnersupplied by : Hot runner made by MICOTEC (Shengzhen China)
Mould base steel : ASSAB UHB 11 or Equivalent Normalized 200 HB
Mould Base Parting Line Plates : DIN 1.2085 (Stainless) Pre-hardened 30/32 HRC
Cavity Steel : 718H/2316 Hardened 55 HRC
Core steel : 718H/2316 (Stainless) Hardened 55 HRC
Stripper Plate Inserts Steel : DIN 1.2343 (AISI H11) Hardened 54/56 HRC
Slides Steel: DIN 1.2083 (Stainless) Hardened 50/52 HRC
Type of Ejection: Stripping Plate + Unscrewing motor
Type of Finish (Cavity side) : SPI A3 (Intermediate Mirror Polish)
Type of Finish (Core side) : SPI B2 (Sandpaper Finish Grit 400)
Engravings: Part Number/Cavity Nr./Logo
Special accessories: Unscrewing Motor
Caring for and serving customers! We believe our full-service will save you a lot of money,time and worry.
Pre-sale service
Purpose:To help our customers to choose the best suitable machinery for particular products, and to give best solution with optimum performance-cost ratio.
Advanced software will ensure the design precision, customer can choose the design from our gallery,also we can design products for customer's particular requirement.
Designs for both normal shape and special shape products are available.
You can get optimum turkey solution suitable for your products and market.
You can get any information you want.
Modification on our machinery for customers' particular requirement is feasible.
Any of customers' question will be answered within 24 hours.
Strict test and inspection will be done for material and finished machinery, nice running status of our machinery is surely guaranteed before leaving factory.
No delay on delivery.
After-sale service
Purpose:To protect customers' investment, and to ensure continuous,stable and effective running of the purchased machinery.
Each set of our mold and machine will have a sole serial number,the test report and detailed technic information will be saved in one sole record,customer is easily to get the information, and reasonable suggestion will be given in case of any problem occurs.
A list of free spare parts will be sent along with each set of mold and machine, and further spare parts will be sold at production cost.
The detailed and easy-understanding installation instruction will be sent along with each set of mold and machine.
Engineers dispatching for locale instruction is feasible.
Every feedback will be answered within 24 hours.
Hisson Plastic Machinery Co., Limited was founded in 1996, which located in Ningbo, a harbor city of eastern China.
We supply high quality plastic injection molding machine, PET bottle blow molding machine, extrusion blow molding machine and various kinds of plastic molds.
Our injection molding machines are exporting to many countries include European countries, Australia, Middle East, Afraica etc., now energy saving is popular, more than 60% of the machines we made are servo motor machines.
In PET bottle field, we have abundant experience, we have special PET preform injection molding machine, PET preform injection mold, semiauto and automatic PET bottle stretch blow molding machine and blow molds, we have 2-cavity, 4-cavity and 6-cavity automatic PET bottle blow molding machine. We provide 2D and 3D design service for PET preforms and PET bottles, according to samples, design draft or only idea.
We serve for all clients include agents and final users, we provide Turkey solution of complete production line, the auxiliary equipment we choose are from top grade manufacturers.
