A. Application

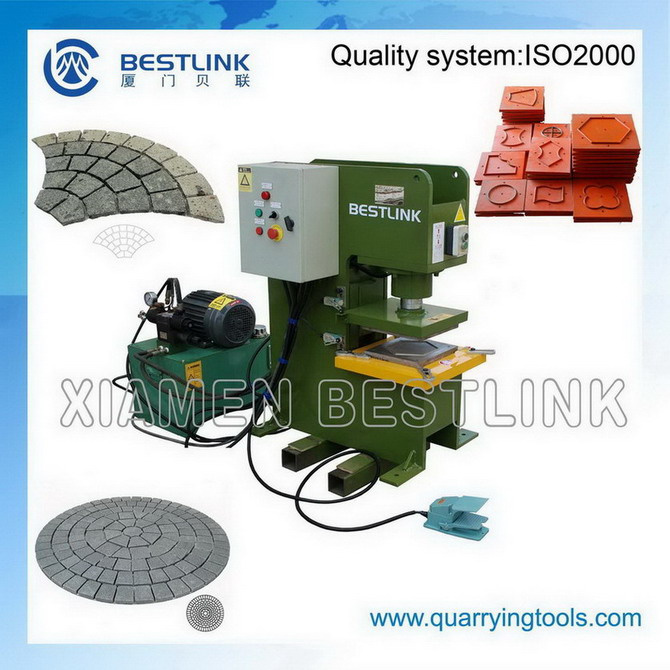

With these machines, you can turn the waste quarry blocks and broken tiles into paving stones,
Mosaic stones, beautiful shaped tiles for decoration uses. The thickness could be to 50mm if you need. It has the advantages of high productivity effect, no need for technique and low cost. The outstanding cost performance and high efficiency of hydraulic stone pressing machine win the trust and reputation from our customers. It is very convenient to start and operation.
Electronically-controlled parts with a separate control cabinet, which is controlled by push-button station and button box. Welcome to visit our factory to check the quality.
B. Structure
(1)Our machine is constituted of the bed, rub rail, slide carriage, tooth on the top, bottom jaw and hydraulic system, etc.
(2)The bed is welded by the steel plate and integrally annealed after that.
(3)Hydraulic system is made up by the oil box, electric motor, oil pump and different valves. Oil box stores hydraulic liquid. The Hydraulic liquid should be filtered by the 10μ M nets. The top of the oil box can be dismantled for clean and the oil drain hole is at the bottom.
Online vedio:
http://www.youtube.com/watch?v=37uGl9GyjHE (Introduction vedio in general-1)
http://www.youtube.com/watch?v=x57uSPWgjoA (Introduction vedio in general-2)
http://www.youtube.com/watch?v=87FuwrXP2IM Automatic Stone Stamping machine(Finished)
http://www.youtube.com/watch?v=78u1XeCOdoE Automatic Stone Stamping machine(Test)
C. Company introduction:
Xiamen Bestlink Factory Co., Ltd since 2000 is committed to providing the best drilling and cutting machine, tools and accessories products in marble and granite stone quarrying, as well as in civil engineering application, especial demolition project. It is now a leading manufacturer of cutting and drilling equipment for the extraction of marble, granite and ornamental stones in china.
| Model | CP-90 |
| Type A | Type B | Type C |
| Hydraulic pressure | 20Mpa | 20Mpa | 20Mpa |
| Splitting power | 20T | 20T | 20T |
| Electric power | 4KW | 4KW | 4KW |
| Pressing size | 300*300*50mm | 300*300*50mm | 300*300*50mm |
| Machine size | 70*86*113cm | 80*100*151cm | 80*90*150cm |
| Weight | 420kg | 500kg | 550kg |
| Functions | stamping, cutting | stamping, cutting, splitting | automatic stamping |
Xiamen Bestlink Factory Co., Ltd.Is committed to providing the best drilling and cutting machines, tools and accessories products in marble and granite stone quarrying, as well as in civil engineering application, especial demolition project.Our company is now a leading manufacturer of cutting and drilling equipment for the extraction of marble, granite and ornamental stones in China.
Since 1985, we have produced and supplied high quality Split AG Non-Explosive Demolition Agent to our worldwide customers in the quarrying and demolition industries.
From early 2000, we have made a start in the study and developed the Hydraulic Rocks and Concrete Splitters by patent inventions, and reached a great success in the domestic and overseas market.Now, we are only a producer and exporter just now from China.
In 2004, we developed and produced the patented products:Hydraulic Rock Drill, Stone holes Groover, Stone Crack Expander and Hydraulic Rock Breaker.We offer a vast range of hydraulic and pneumatic drills and machines for diamond wire cutting as well as all kinds of accessories for quarrying activities.
Now, quality products are being exported to more than 45 countries and regions all over the world including the USA and Europe with high reputation.
We are continually looking for ways to develop drilling and cutting technology for quarrying and demolition, and hoping to be the world NO.1 company about quality and prices of hydraulic Splitters and Expansive Cement within 5 years.Thank you very much for your support and wish to get your deep interest and be your best partner.
