| Price: | US $ 11000/Set |
|---|---|
| Trade Terms: | FOB |
| Min Order: | 1/Set |
| Pay Type: | L/C,T/T |

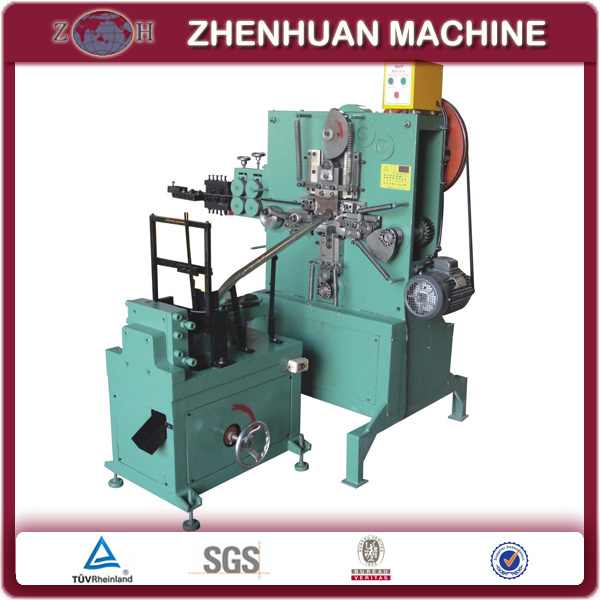

Hanger hook making and threading equipment, producing hanger hooks for plastic/wood hangers,50 pieces/min.
Hanger hook making and thrading equipment combines hook forming and one hook end threading functions together. For another hook end, there are two shapes: one is bended and another is cold headed. By changing moulds, different shape and different heading treatment can be achieved.
Main technical data of hanger hook making and thrading equipment:
No. | Item | Machine Type | Remarks | ||
|
| HHBM30 | HHBM43 |
| |
1 | Suitable material | Galvanized steel wire, carbon steel wire |
| ||
2 | Wire diameter | 1.5-3.0mm | 2-5mm |
| |
3 | Max. total wire length | 160mm | 160mm |
| |
4 | Production speed | 40-50pcs/min | 25-30pcs/min |
| |
5 | Main motor power | 1.5kW | 2.2kW |
| |
6 | Dimension | 1360 x 1070 x 1980mm | after packing | ||
7 | Weight | about 400kg | gross weight | ||
This kind of hanger hook bending and making equipment is not standard machine, but based on your requirements. So, kindly please contact with me:
Name: Aileen Chen (Ms.)
Mobile: 0086 136 2627 8212
We Nantong Zhenhuan Trade Co., Ltd. is certified by TUV, BV, SGS, good reputation and credit, have more than 10 years of trading machine experience. We can provide you not only good quality hanger hook making and threading equipment but also good after-sale service.
| Suitable Material: | Galvanized Steel Wire, Carbon Steel Wire |
|---|---|
| Wire Diameter: | 1.5-5.0mm |
| Max. Total Wire Length: | 160mm |
| Machine Dimension: | 1360X1070X1980mm |
| Machine Weight: | Around 400kg |
| Guarantee: | One Year Since The Date of B/L |
