ZEB Series Accumulator die head Mode PE Blow Molding Machine, Equipment and materials meet the wide range and suitable for kinds of production. It's open and close mold systems is stationary open and close mould frame, extrusion system is the hard surface reducer, the Japanese import inverter. Die head system adopt to accumulator die head, all imports of hydraulic valves, seals, electro-hydraulic proportional control. Control System is make of MITSUBISHI PLC\Imported HMI\PLC Automati Temperature Controller\Imported Electronic Parts.

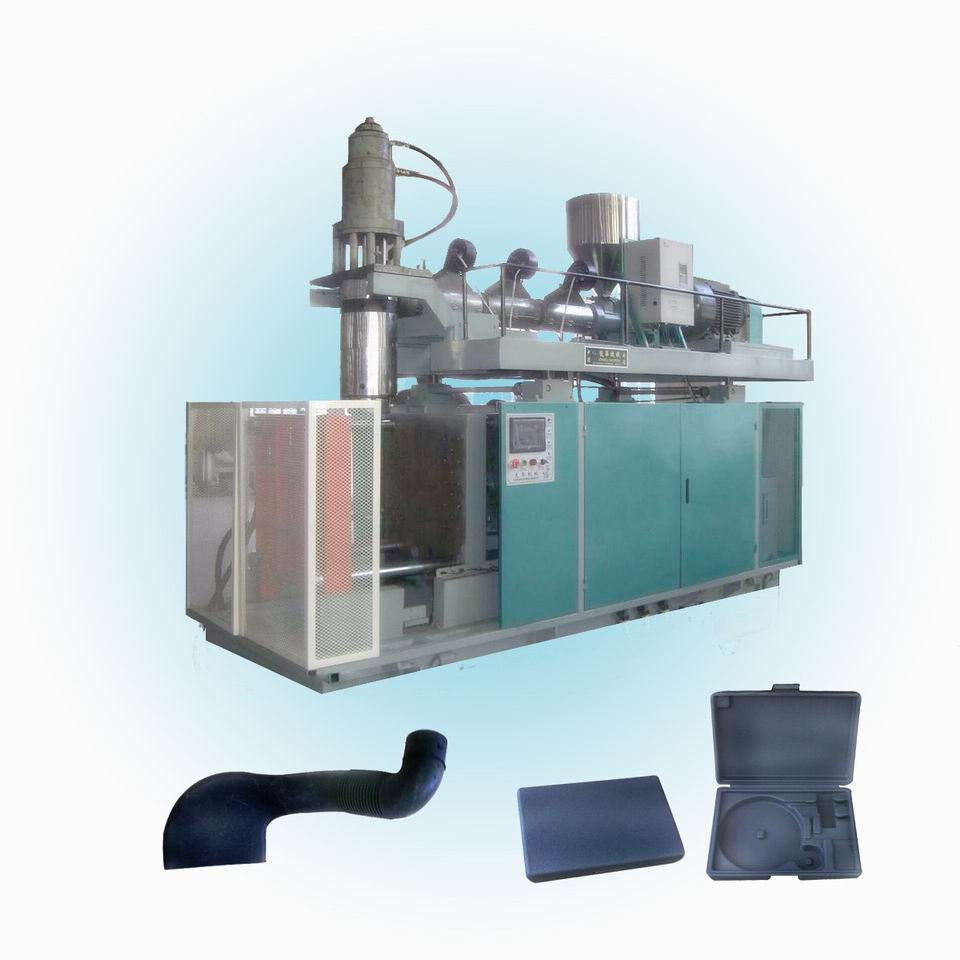

ZEB65N for max 15L jerrycan barrel. Tool box. Toolcase
|
Specifications |
|
ZEB65N |
|
material |
|
PE,HDPE,PP,ABS... |
|
max. product volume |
L |
15 |
|
output(dry cycle) |
pc/hr |
400 |
|
machine dimension(L×W×H) |
m |
3.8×2×3.2 |
|
machine weight |
ton |
6 |
|
clamping force |
kn |
95 |
|
platen opening stroke |
mm |
250-700 |
|
platen dimension |
mm |
600×500 |
|
max. mould dimension(W×H) |
mm |
400×500 |
|
cooling water pressure |
Mpa |
0.3 |
|
cooling water consumption |
L/min |
50 |
|
blowing pressure |
Mpa |
0.6 |
|
air consumption |
m 3 /min |
0.6 |
|
screw diameter |
mm |
65 |
|
screw L/D ratio |
L/D |
24 |
|
output of HDPE |
kg/hr |
56 |
|
No. of screw heating zone |
zone |
3 |
|
screw heating power |
kw |
5 |
|
extruder motor power |
kw |
18 |
|
No. of heating zone |
zone |
3 |
|
die head heating power |
kw |
10 |
|
max. die diameter |
mm |
220 |
|
oil pump driving power |
kw |
7.5-11 |
|
accumulator capacity |
L |
1.8-2.7 |
