Die Locking Force:
130ton
Product Description

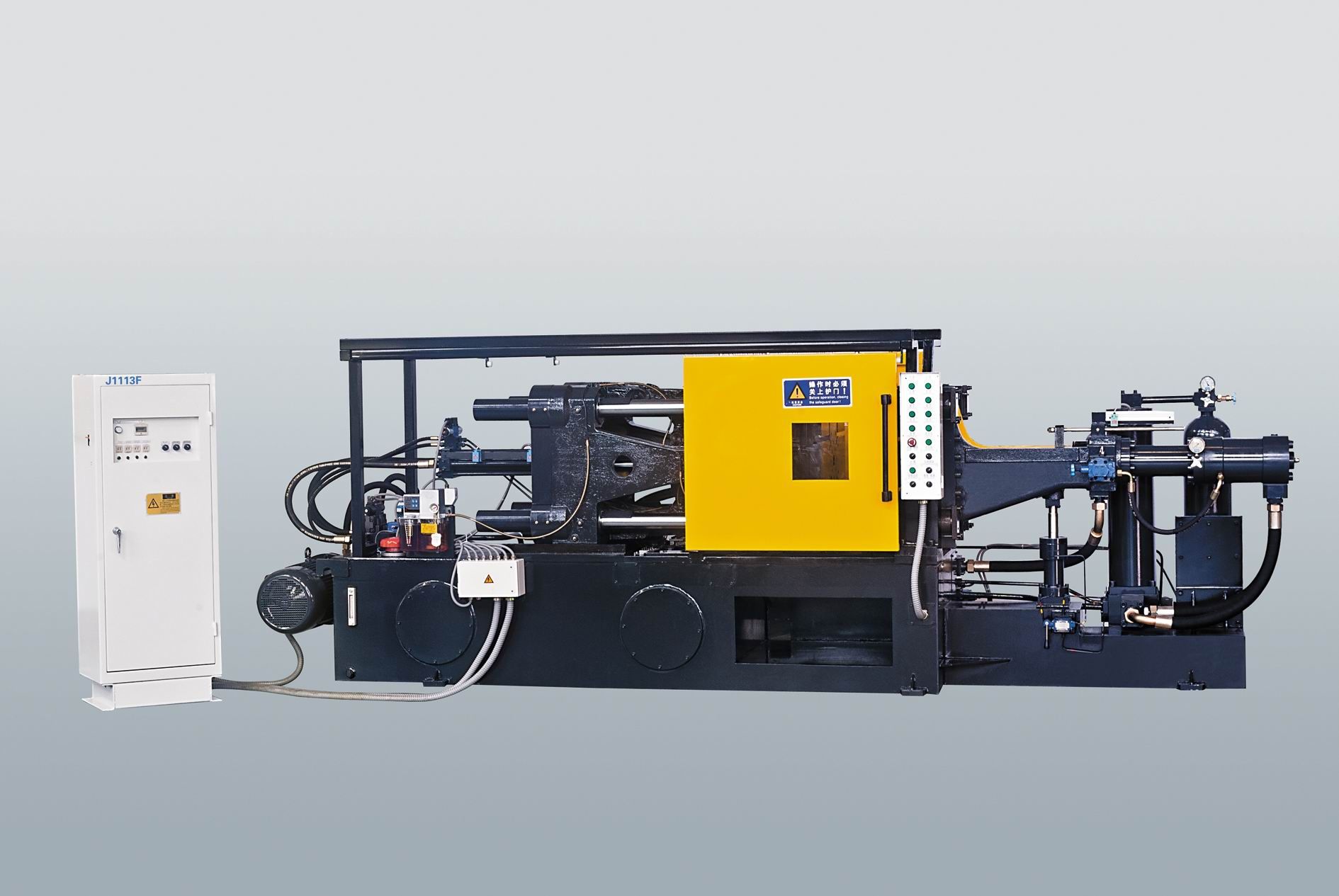

Model J1113F(130 Ton)1300KN Horizontal Plunger Cold Chamber Die Casting Machine: Specifications: The machine is widely used for mass production of foundry goods made of nonferrous metal such as aluminum, zinc and copper in the industries of automobiles, motorcycles, meters and instruments, household appliance hardware of daily necessities.
Computer-programmed control; Hydraulic drive; Crank expanding structure; 4-rod pilot elastic stress framework; Locking that is tensile, faster and reliable; Hydraulic ejector for lift-out; Mould thickness can be controled by hydraulic motor; 3-step hydraulic boosting and injecting system that is constant and effective; Injection rate over 5M/S and minimum boosting time less than 30ms.
The machine is superior in performance, high in productivity and smooth in operation. It is advantageous in technology in China's mainland.
Traits of cold chamber die-casting machine: 1. Multi-stage pressure and speed control to mode-locked opening, it is equipped with low pressure locking protection function. 2. Hydraulic driver gear die regulating device. 3. Central electric lubrication system. 4. Rapid hydraulic ejecting device and core puller. 5. Three-section pressure and speed control shot. Piston type two-speed and supercharging & power accumulator. 6. Hammer automatic lubricating device. (optional) 7. Germany and Japan famous brands hydraulic elements(optional).
Project
unit
J1113F
Die locking force
KN
1300

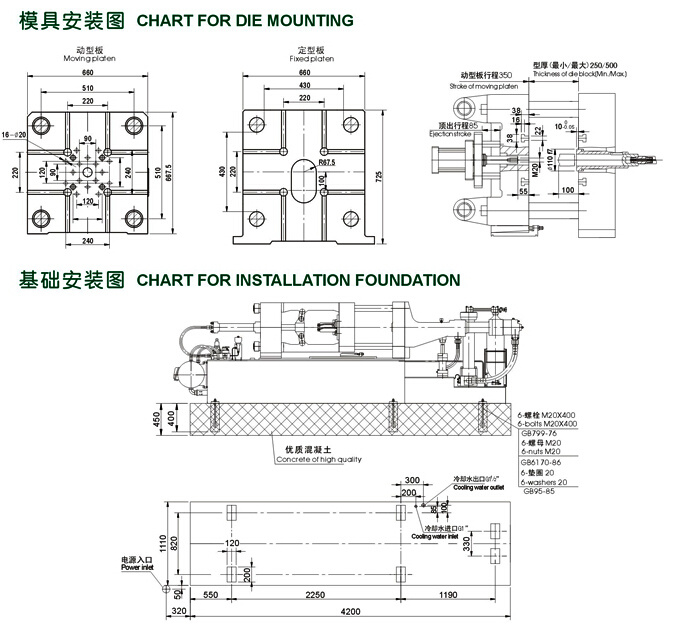

Size of moving platen (H×V)
mm
650×670
Inner space between the bars (H×V)
mm
440×440
Thickness of die block (Min.-Max)
mm
250-500
Stroke of moving platen
mm
330
Ejection stroke
mm
80
Ejection force
KN
100
Injection force
KN
150
Injection stroke
mm
320
Injection position
mm
0,-100
Diameter of shot sleeve
mm
40,50
Dosage of fluid metal per shot (AL)
kg
0.8,1.2
Injection Pressure (Min-Max)
MPa
119.4,76.4
Max Projecting area of casting
cm 2
163
Dry cycle
S
7
Pipe line pressure
Mpa
12
Motor power
kw
11
Machine weight
kg
5000
Overall dimensions (L×W×H)
mm
4550×1160×1800
