Die Locking Force:
500tons
Product Description

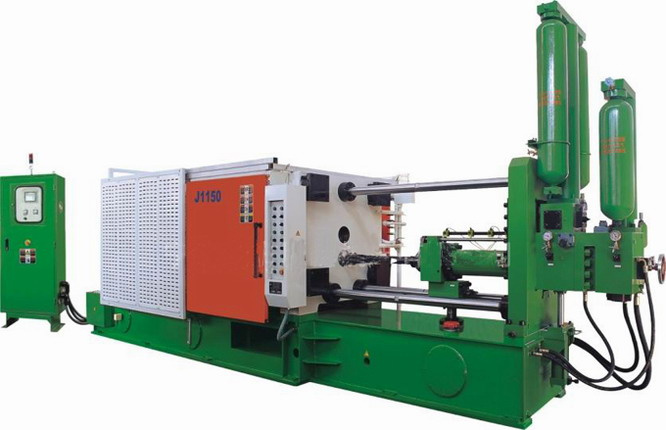

Model J1150(500 Ton)5000kN cold Chamber Die Casting Machine
Specifications:
The machine is of a middle rank among the models of horizontal cold chamber die-casting machine series. It is widely used for mass production of foundry goods made of nonferrous metal such as aluminum, zinc and copper in the industries of automobiles, motorcycles, meters and instruments, household appliance, hardware of daily mecessities. Computer-programmed control, the trouble location and adjust of machine are remote controlled, via communication net, hydraulic drive adopts import proportional control valve for control, crank expanding structure, 4-rod pilot elastic stress framework, locking that is tensile, faster and reliable, there are reliable security mechanism. The high precision electrical-Machinery adjusting device adjusts the die height, 4-phase injection is afforded for fast injection speed, up to more than 6m/s, and minimum boosting less than 20ms, and individual control of injection and pressure intensification is possible. All parameters for injection may be adjusted separately against the requirements of producing qualified castings. 3-tie bars connect the fixed plated with injection cylinder, thus there is larger operation space, this machine adopts advanced sealing structure parts and import sealling element. The machine is superior in performance and smooth in operation, it is advantageous in technology in China's mainland, and can replace the import machine.
Traits of cold chamber die-casting machine: 1. Multi-stage pressure and speed control to mode-locked opening, it is equipped with low pressure locking protection function. 2. Hydraulic driver gear die regulating device. 3. Central electric lubrication system. 4. Rapid hydraulic ejecting device and core puller. 5. Three-section pressure and speed control shot. Piston type two-speed and supercharging & power accumulator. 6. Hammer automatic lubricating device. (optional) 7. Germany and Japan famous brands hydraulic elements(optional).
Project
unit
J1150
Die locking force
KN
5000
Size of moving platen (H×V)
mm
1160×1080
Inner space between the bars (H×V)
mm
760×660
Thickness of die block (Min.-Max)
mm
320-800
Stroke of moving platen
mm
450
Ejection stroke
mm
120
Ejection force
KN
220
Injection force
KN
500
Injection stroke
mm
572
Injection position
mm
0,-220
Diameter of shot sleeve
mm
70,80,90
Dosage of fluid metal per shot (AL)
kg
4.1,5.4,6.8
Injection Pressure (Min-Max)
MPa
130,99.5,78.6
Max Projecting area of casting
cm 2
636
Dry cycle
S
12
Pipe line pressure
Mpa
14
Motor power
kw
30
Machine weight
kg
25000
Overall dimensions (L×W×H)
mm
7350×1950×3150
