Die Locking Force:
130tons

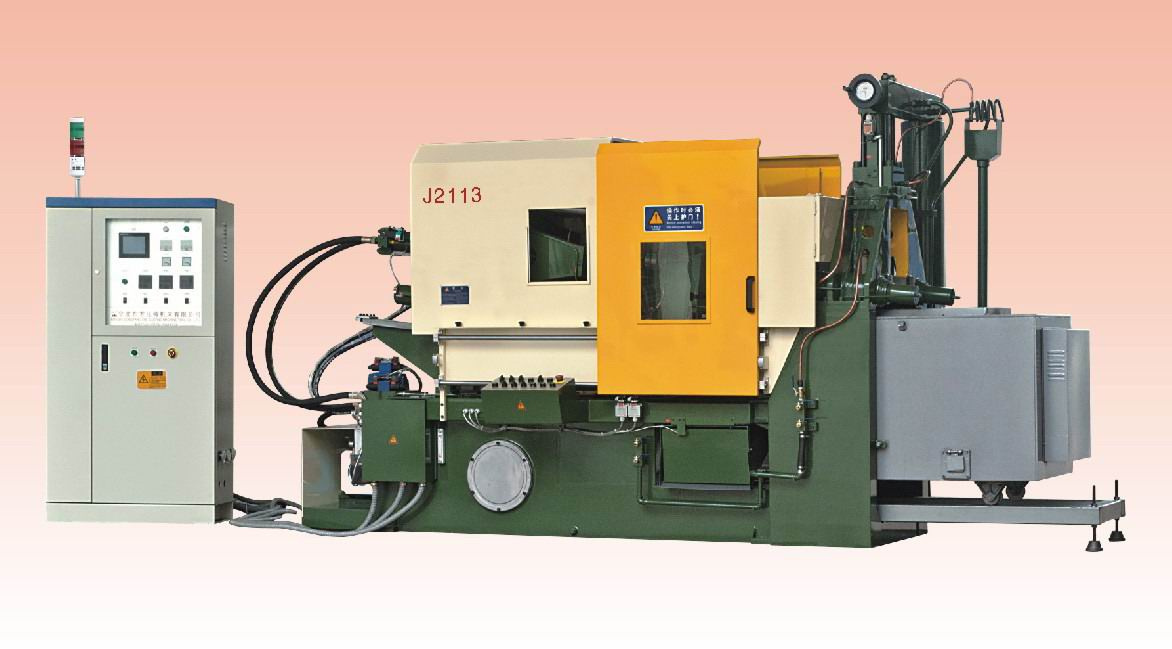

Product Description
The machine could process low melting point metal of colored alloy of zinc and lead, which are widely used in automobile and motorcycle parts, instruments, household hardware and home appliances industry.
There are three kinds of driving modes as manual, single circulating and automatic circulating. The operator could manage several machines simultaneously under automatic mode.
The machine has to be very high working effective, which could send up 2.5kg of zinc alloy per cycle.
The machine is equipped with electronics and hydraulic pressed parts of high grade. The machine it is controlled by program which is stable and reliable.
Project
unit
J2113
Die locking force
KN
1300
Stroke of moving platen
mm
350
Inner space between the bars (H×V)
mm
430×430
Thickness of die block (Min.-Max)
mm
250-500
Injection force
KN
100
Injection stroke
mm
148
Injection position
mm
0,-60
Ejection force
KN
100
Ejection stroke
mm
85
Diameter of shot sleeve
mm
60,65
Max Projecting area of casting
cm 2
368
Working pressure of vane pump
MPa
13
Motor power
KW
18/11
Dosage of fluid metal per shot(Zinc)
kg
2.2/2.6
Effective volume of crucible (Zinc)
kg
360
Oil consumption of burner
kg/h
1.5-7.0
Volume of oil tank
L
340
Machine weight
kg
6000
Overall dimensions (L×W×H)
mm
4700×1790×2500
