Die Locking Force:
50tons
Product Description

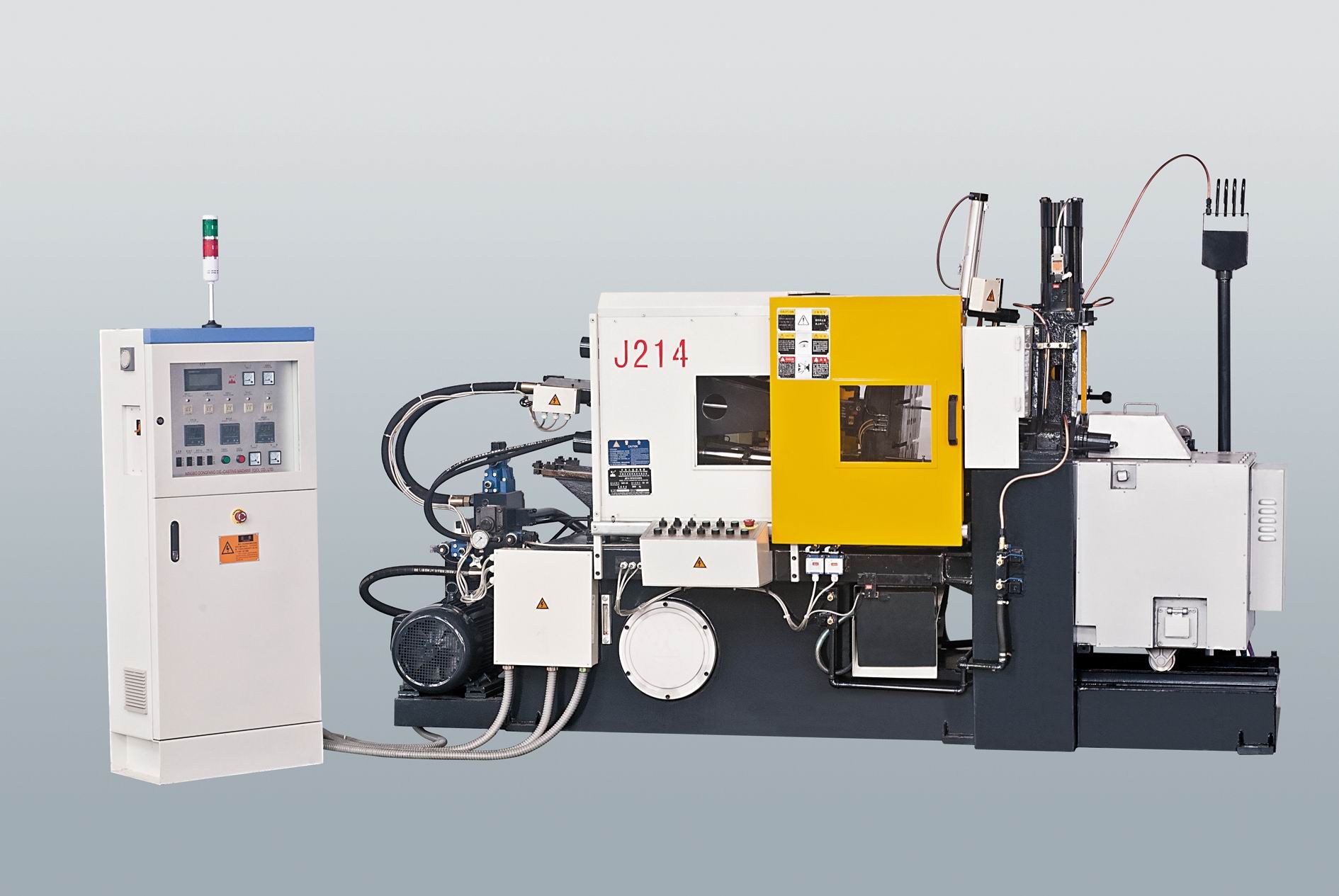

J214(50Ton)500kN Hot Chamber Die Casting Machine
Application: such as Zn (Zinc) and Pb (Plumbum). It is widely used in various industries including automobile and motorcycle parts, meters and instruments, daily-use hardware, and household appliances.
The machine is controlled by industrial level microcomputer. The die casting process parameters can be set up through the person-machine interface and import proportional oveflow valve ensure easy operation of parameter and program setup.The injection system uses large-caliber logic, ensuring die-casting parts have high quality. The machine has remote machine control and trouble locating functions.
The machine is equipped with impored electronic and hydraulic parts, ensuring a reliable and safe whole-machine performance, it is anadvanced type of die casting machine within our country at present.
Project
unit
J214
Die locking force
KN
500
Stroke of moving platen
mm
210
Inner space between the bars (H×V)
mm
290×290
Thickness of die block (Min.-Max)
mm
120-320
Injection force
KN
50
Injection stroke
mm
110
Injection position
mm
0,-40
Ejection force
KN
50
Ejection stroke
mm
50
Diameter of shot sleeve
mm
45
Max Projecting area of casting
cm 2
159
Working pressure of vane pump
MPa
10.5
Motor power
KW
9.5
Dosage of fluid metal per shot(Zinc)
kg
1.1
Effective volume of crucible (Zinc)
kg
160
Oil consumption of burner
kg/h
1.5-6.0
Volume of oil tank
L
320
Machine weight
kg
3500
Overall dimensions (L×W×H)
mm
3500×1450×2100
