North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
380V/50Hz/3 Phase:
Customized or Standard
Shaping Mode:
Injection Mould
Application:
Hardware
Installation:
Fixed
Process Combination Type:
Progressive Die
Product Description

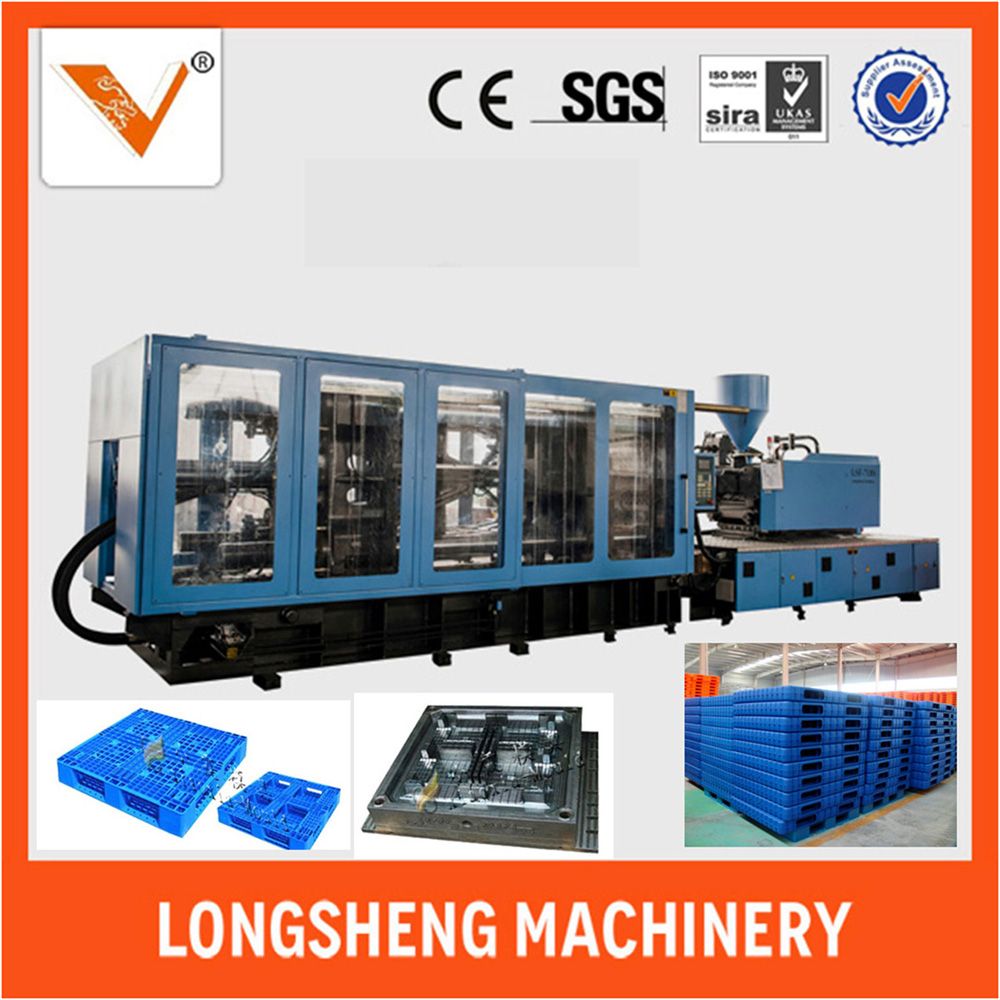

1680ton High Quality Plastic Pallet Injection Molding Machine 1680ton
Company Profile: We are a Chinese Best quality pallet plastic injection molding machine 1680ton manufacturer & exporter, providing four types of injection machine with clamping force ranging from 600KN to 32000KN and injection weight from 68g to 40570g.With more than 20 years experience, we can produce low energy consumption and high efficient machine.
Advantages: A)Energy saving:Save 30% to 60% compared to ordinary machine. B) Easy operating:Parameters settings, system speed adjusting is simple digit function, operate on the control interface like on the ordinary machine. C) High performance:High response (30ms-130ms), high stability, repetition. D) Fast response:Energy saving, high precision and lower defectives and waste. E) Spare parts:Come from Japan, Germany, Italy etc. F) High precision:Correct the result to 2 decimal places. G) Visual lubricating system:Protective machinery parts without abrasion and broken.
Important features: A) Clamping system:Faster response, stable and high rigidity B) Injection system:Accurate and flexible, lower rejection rate C) Control system:Computer and simple operation, molding data memory system D) Power system:Energy saving, high efficient and precise E) Metal parts:The thickness of our frame, metal plate and wallboard are thicker than other company.
Service A) Before sales service: Our sales and technical team can provide the plastic mould design and relevant parameter suggestions to help them decide the most suitable machine.
B) During sales service: We help customer to make the workshop display, such as electricity line and cooling water installation and provide free operating training.
C) After sales service: Our engineers will help customer to install and debug the plastic molding machine.During the 1 year guarantee time, we offer all the damaged parts free of charge.
INJECTION UNIT
Item
Unit
LS-1680
A
B
C
Screw diameter
Mm
120
130
140
Screw L/D ratio
L/D
25.6
23.6
22
Theoretical shot size
Cm 3
8821
10353
12007
Injection weight
G
7939
9317
10806
Injection rate
G/s
1103
1190
1307
Plasticizing capacity
G/s
146
155
163
Injection pressure
Mpa
213
181
156
Screw speed
Rpm
0-100
CLAMPING UNIT
Clamp force
KN
16800
Space between tie bars
Mm
1520*1480
Toggle stroke
Mm
1560
Max.Mold height
Mm
1550
Min.Mold height
Mm
720
Ejector stroke
Mm
400
Ejector tonnage
KN
328
Ejector number
P
29
OTHERS
Max.Pump pressure
Mpa
16
Pump motor power
KW
45+45+45
Heater power
KW
94
Machine dimension
M
16.5*3.2*5.2
Machine weight
T
115
Changzhou Longsheng Machinery Co., Ltd locates in Zhonglou Scientech Industry Park of Changzhou, mainly produces and sells Plastic Injection Molding Machine, with high technology and reliable quality, our products are selling all over the world. We compare the price with the same quality, while compare quality with the same price, compare the service with the same quality and price, we regard it as our management tenet. We always integrate the optimized design associated with manufacture and good sales service together. We adopt 24hours-networking for sales service, all lifecycle services for products, smile is our characteristc service.
Ways to success, start from Longsheng. Longsheng Possesses solid strength, devoted to create a brand name ---Longsheng Machinery Series. The Clamp Force of our machines range from 600KN to 16800KN, Shot Weight range from 63G to 10000g, Plastic Injection Molding Machine is widely applied in the areas of automobile, mechanical, chemical, electrical, daily supplies, toys, etc.
With good quality, professional service and sincere credit, Longsheng will go along with new and old clients, to realize the complementary of each other's advantages, resource sharing and mutual benefit. Try to create a prosperous future with our customers as we always do.
Innovation is the sole of development for a company. The Sea Accepts All Things, Deriving More Things. The development of Longsheng is course of creative and exceed itself all the time. Study is the vital force of the enterprise, the Longsheng advocate study, and offer all-sided training to improve its staff. Devoted to everything on hand is the management concept of Longsheng, owning concentration and persistence, the enterprise could progress, the staff can improve themselves.
Changzhou Longsheng Machinery Co., Ltd locates in Zhonglou Scientech Industry Park of Changzhou, mainly produces and sells Plastic Injection Molding Machine, with high technology and reliable quality, our products are selling all over the world. We compare the price with the same quality, while compare quality with the same price, compare the service with the same quality and price, we regard it as our management tenet. We always integrate the optimized design associated with manufacture and good sales service together. We adopt 24hours-networking for sales service, all lifecycle services for products, smile is our characteristc service.
Ways to success, start from Longsheng. Longsheng Possesses solid strength, devoted to create a brand name ---Longsheng Machinery Series. The Clamp Force of our machines range from 600KN to 16800KN, Shot Weight range from 63G to 10000g, Plastic Injection Molding Machine is widely applied in the areas of automobile, mechanical, chemical, electrical, daily supplies, toys, etc.
With good quality, professional service and sincere credit, Longsheng will go along with new and old clients, to realize the complementary of each other's advantages, resource sharing and mutual benefit. Try to create a prosperous future with our customers as we always do.
Innovation is the sole of development for a company. The Sea Accepts All Things, Deriving More Things. The development of Longsheng is course of creative and exceed itself all the time. Study is the vital force of the enterprise, the Longsheng advocate study, and offer all-sided training to improve its staff. Devoted to everything on hand is the management concept of Longsheng, owning concentration and persistence, the enterprise could progress, the staff can improve themselves.
