North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:
Bule/Customized
Warranty:
1 Year
Brand Name:
Hxe
Inlet Diameter:
4mm
Operation:
PLC Control
Insallation:
Available Engineer Go Abroad
Usage:
Wire
Type:
Wire Drawing Machine
Outlet Diameter:
0.35mm-2.2mm
Max.Inlet Wire Dia.:
4mm
Block Dia.:
254mm
Max. Number Of Block:
17
Product Description

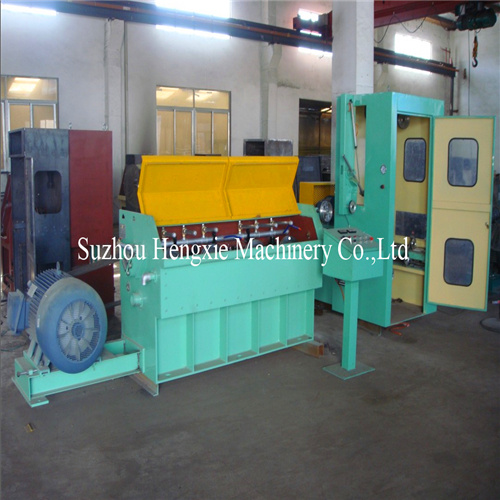

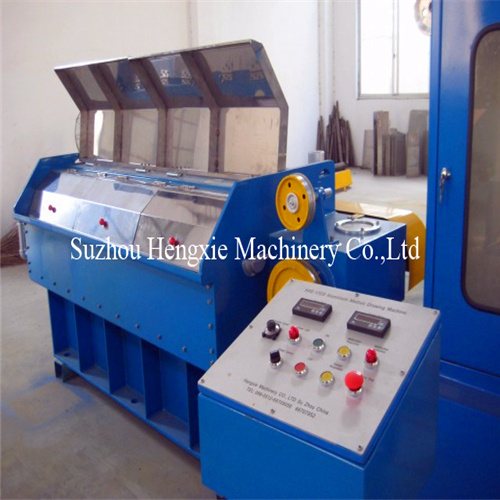

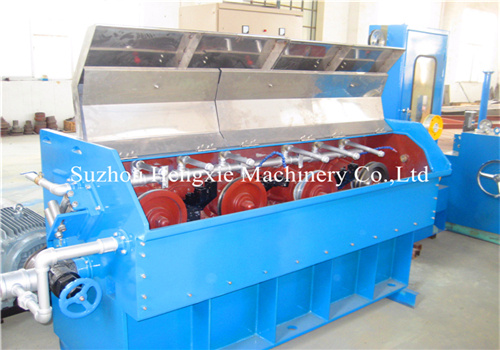

HXE-17MDS Intermediate aluminium wire drawing machine HXE-17MDS Intermediate aluminum wire drawing machine is used to draw aluminum wire from 4mm(Max.) to 0.35mm-2.2mm single wire. I. Compositions of equipment
Name
Quantity
1.HXE-17MDS Drawing machine
1 set
2.HXE-180 Tension controller
1 set
3.HXE-SX500 Take-up machine
1 set
4.Pay-off
1 set
5.Operation panel
1 set
6.Electrical cabinet
1 set
7.Spare parts

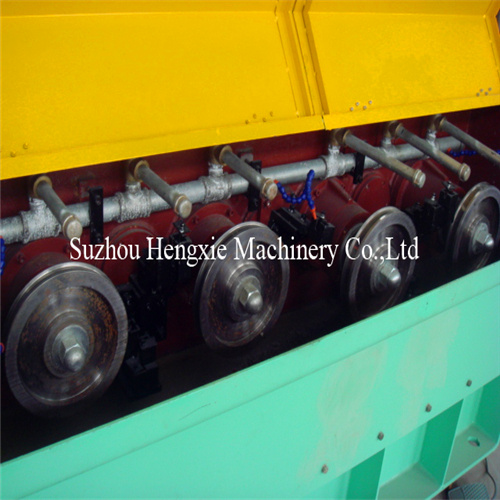

II. Parameters 1.Inlet diameter: 4mm(Max.),outlet diameter: 0.35mm-2.2mm 2.Speed:1500mpm 3.Maximum dies number: 17 4.Outer diameter of the dies: 30mm * 15mm thickness 20mm * 10mm thickness 5.Slip ratio of m/c: From No.1 to No.16 -15%, No.17--10% 6.Main motor:37KW three phase motor + 37KW frequency Inverter. 7.Spooler motor:15KW three phase motor +15KW frequency Inverter 8.Loading of capacity:480kg/max 9.Suitable diameter of bobbin:500-630mm/max 10.Brake: pneumatic brake 11.Machine dimension:3500*1200*1250mm 12.Machine weight: 4500kg 13.Capstan: Tungsten carbide 14.Capstan diameter: 254mm 15.Fix speed capstan diameter: 252mm 16.Frame:Welded by steel plate III.HXE-17MDS Main drawing machine Main components list
No.
Item
Specs
Origin
Brand
Note
1
Main Inverter
MD320AC
Shenzhen
INOVANCE
37KW
2
Take up inverter
MD320AC
Shenzhen
INOVANCE
11KW
3
Main motor
3 Phase AC
Anhui
WN
37KW
4
Take up motor
3 Phase AC
Anhui
WN
11KW
5
Proximity switch
E0
Germany
P+F
6
Electric cabinet
Hengxie
HXE
7
Precision resistance
Shanghai
Military enterprises
8
Bearing
NSK
Japan
NSK
9
Capstan
Tungsten carbide
Guangdong
10
Low voltage equipment
France
Schneider
11
Instrument
Shenzhen
INOVANCE
12
Frame
17MDS
Hengxie
HXE
Q235A
