North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:
Bule/Customized
Warranty:
1 Year
Installation:
Available Engineer Go Abroad
Operation:
PLC Control and Touch Screen
Inlet Size:
9.5mm
Outlet Size:
4.2-1.7mm
Brand Name:
Hxe
Type:
LT Water Tank Type Metal Drawing Machine
Usage:
Wire
Outlet Diameter:
1.7-4.2mm
Max.Inlet Wire Dia.:
9.5mm
Block Dia.:
650mm
Max. Number Of Block:
13
Product Description
HXE-13DLA Aluminiumrod breakdown machine(with automatic dual take up machine) is used to draw aluminium single aluminium wire from 9.5mm(Max.) to 1.7mm - 4.5mm. I. Compositions of equipments
II.Main technical parameters 1. Inlet size:9.5mm(Max.) 2. Outlet size:1.7mm - 4.5mm 3. Drawing speed:800m/min 4. Drum speed ratio:1.25 5. Capstan max size:650mm 6.Capstan:Iron cast 7.Pay off method: Portal type 8.Traversing unit: Free rod type 9.Lubrication type: Spray 10.Power source: (customized) 11. Die No:13 12. Main motor:75KW, with AC 75KW inverter drive. 13. Spool motor: Torque motor 40N.M*2set 14. Sped adjustment: By frequency inverter 15. Spool size:500mm-630mm

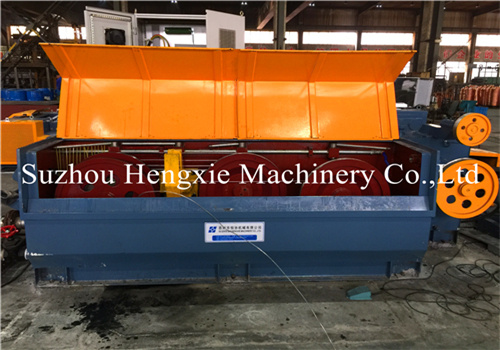

III.HXE-13DLA Main drawing machine
1.Machine transmission:by gears 2.Drawing method:capstans are immersed into water. 3.Main drawing machine are composed of electric motor(75KW),machinebody(including gear oil tank and water tank),axes,gears,capstans and dieseat and so on. 4.Gears: high precision gear,material:20CrMo. 5.Capstans :cast iron 6.Lubrication:lubricate for gears and bearings,oil splashes. 7.Capstans are immersed into water,capstans and aluminum rod can be coolant.Drawing dies are sprayed. 8.Bearing :Chinese famous brand: NSK 9.Drawing speed can be adjusted during 350mm-800m/min(according to inlet and outlet size and softness or hardness).

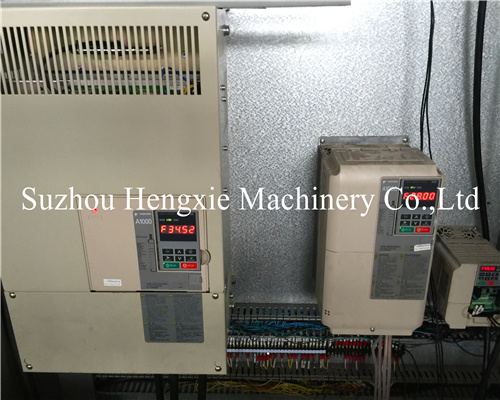

IV.Operation panel & Electrical system
1.Driving system for drawing part, containing main inverter(75kw),motor, Torque motor control.
2.Containing length meter,speed,voltage,ammeter,button switch,indicator light,control switch,alarm light,etc. Operation panel and electric cabinet buildup complete in same one system.

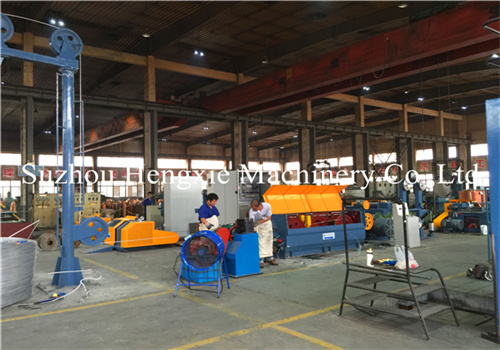

Suzhou Hengxie Machinery Co., Ltd. Locates in Yinghu Industrial Zone, Wangting town, Suzhou Hli-New District, near to G312 with a conveninet transportation and nice environment. It is a professional company which specializes in electronic cable, electromagnetic cable, electrical wire eat. It is at a leading position in this line because of the topping managing talent and advanced technics.
